o X: Frequency of output signal (Hz).
o Y: Level of input signal (dB).
Control Points:
o Blue: Adjust element Frequency (Horizontal) and Level
(Vertical).
o Yellow: Adjust element Bandwidth.
6.6.7 Shelving Filter
Shelving Filter implements a first order response and provides an adjustable boost or cut to
frequency above/lower than a certain point.

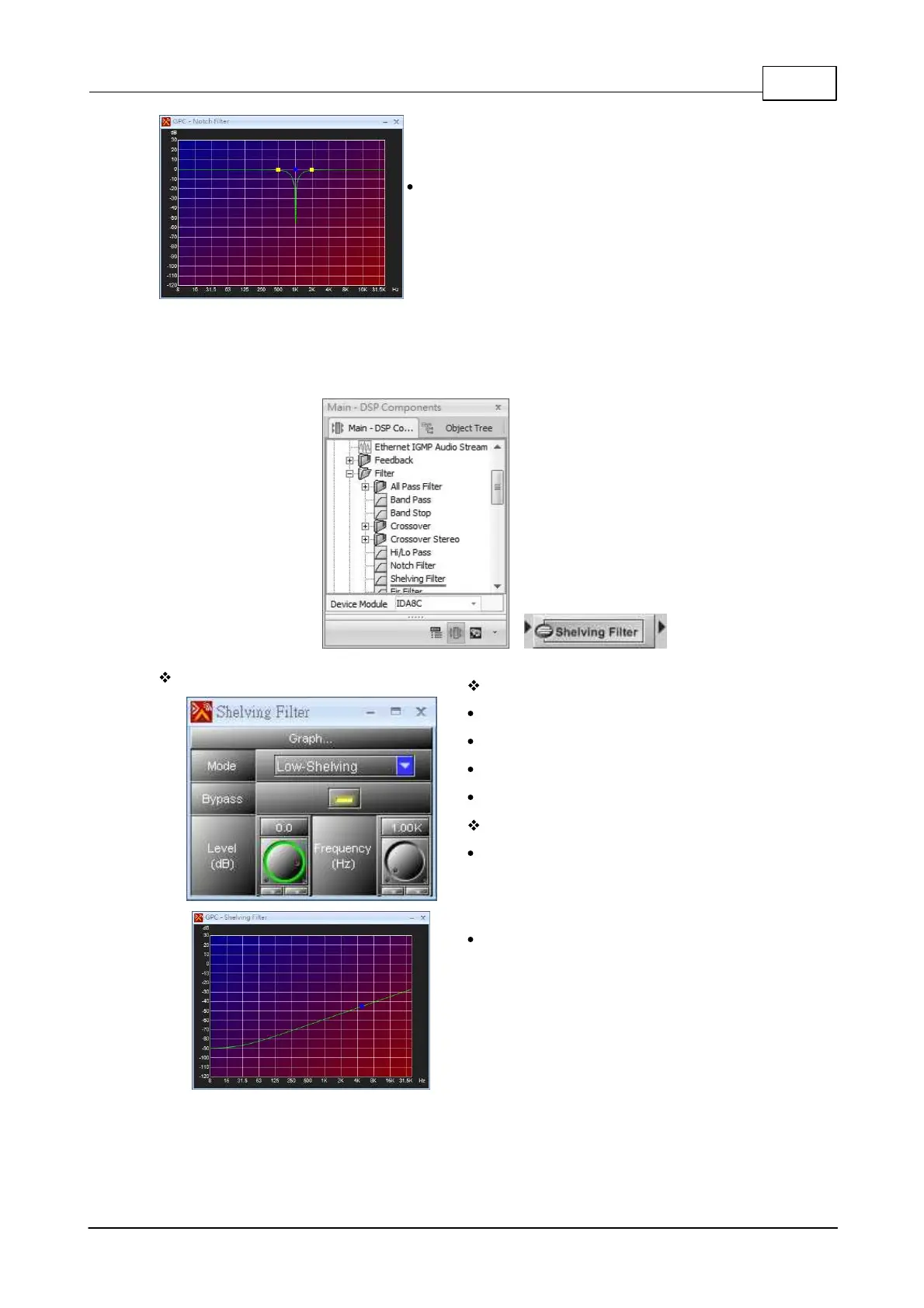

Control Window
Element Description
Mode: The type of filtering (high pass or low pass).
Bypass: Disable the filter's module.
Level: The gain of the filter's module.
Frequency: The frequency of cut.
Graphical Control Window
Axis:
o X: Frequency of output signal (Hz).
o Y: Level of input signal (dB).
Control Points:
o Blue: Adjust element Frequency (Horizontal)
and Level (Vertical).
