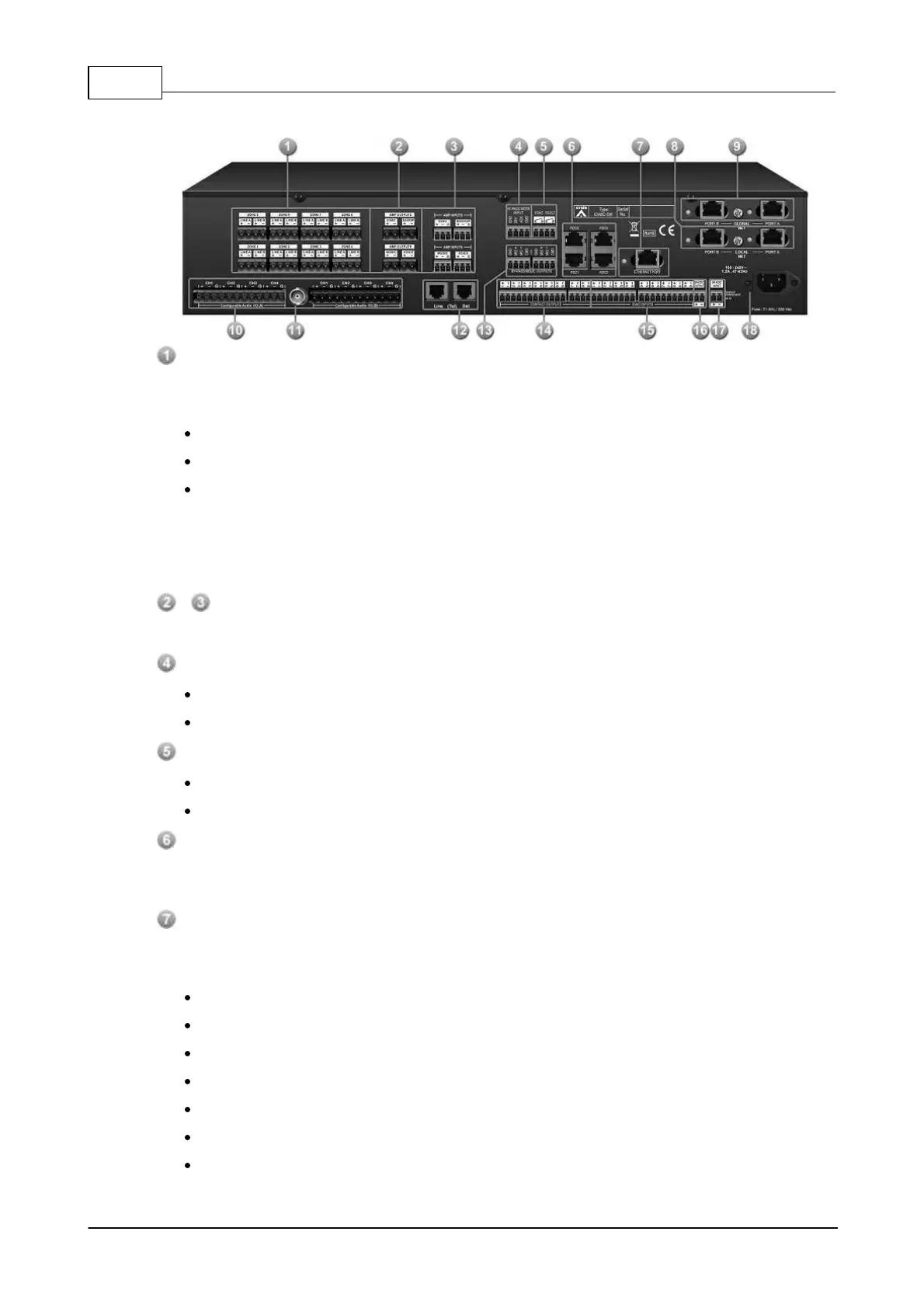

3.1.5.2 Rear Panel
Speaker Zone Outputs:
There are 8 zones for speaker & amplifier connections. Each zone consists of following
connectors(from left to right):
Connector of line A speaker
Connector of line B speaker
Connector of 100V audio coming from amplifier
The IDA8 output is exactly the same audio signal to line A and B. Two speakers can connect to
one zone for redundancy purposes, one connects to line A, another connects to line B. Both
speaker lines are monitored. That means if damage to a speaker is detected, a global fault "Line
A/B Error" will be generated.
/ Amplifier Zone I/Os:
4 Zone 0dB output to amplifiers.
Bypass Mode Input:
Contact input to engage the bypass mode paging (CMD).
Contact output to display the state of bypass mode paging (ACK).
EVAC, Fault State Outputs:
EVAC Output Contact: this contact is closed if the system is under EVAC paging.
Fault Output Contact: this contact is open if a fault is detected.
PDC (Peripherals Device Controller) Connectors:
Four RJ-45 connectors are used to connect consoles or peripheral devices such as PSS-AS,
URC-150AS and PPM-AS through Junction Box.
Ethernet Connector:
RJ-45 connector to link the IDA8C on an ethernet network. The following end points are
communicated with IDA8C through ethernet networking.
Ateis Studio software
3rd party control devices
TerraServer
TerraManager
Terracom Devices
PPM-IT5
Voxnet Server
