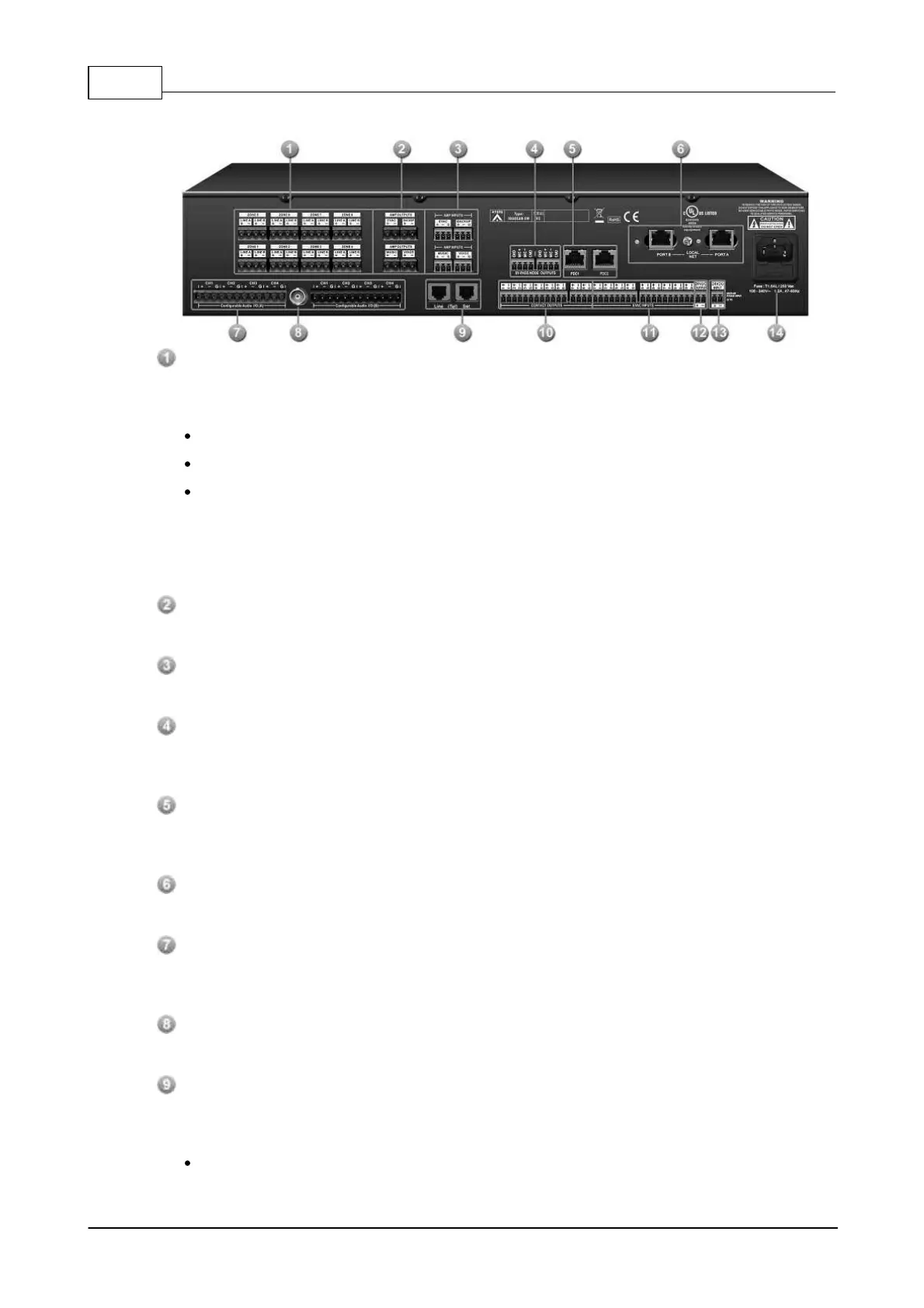

3.1.6.2 Rear Panel
Speaker Zone Outputs:
There are 8 zones for speaker & amplifier connections. Each zone consists of following
connectors (from left to right):
Connector of line A speaker.
Connector of line B speaker.
Connector of 100V audio coming from amplifier.
The IDA8 output is exactly the same audio signal to line A and B. Two speakers can connect to
one zone for redundancy purposes, one connects to line A, another connects to line B. Both
speaker lines are monitored, meaning if damage to a speaker is detected, a global fault "Line A/
B Error" will be generated.
Amplifier Zone Outputs:
4 Zones 0dB output to amplifiers.
Amplifier Zone Inputs:
4 Zones 0dB input to amplifiers.
Bypass Mode Outputs:
This port is used to share the bypass mode microphone signals through the IDA8C-IDA8S
network (only needed when using a fiber optic network).
PDC (Peripherals Device Controller) Connectors:
Two RJ-45 connectors are used to connect consoles or peripheral devices. For example, PSS-
AS, URC-150AS, PPM-AS connect to the IDA8SAB-SW via this connector.
Local Ateis Net Connectors:
Optional card to build a local dedicated IDA8C-IDA8S network.
Configurable Audio I/Os:
Two configurable 0dB audio I/O port A and B. Each port is available to assemble an audio card.
There are 4 channels on each audio I/O card.
BNC Connector:
BNC Connector for AES/EBU Card.
Telephone Line Input and Connector:
A connector for a telephone signal coming from telephone company and external telephone
connection (optional).
Interface: a/b (analog), support 74 countries.
