Amplifier Configuration [IDA8C (Matrix
Unit) and IDA8C-SW/IDA8SAB-SW
(Switch Mode Unit)]:
There are 8 zones for speaker & amplifier
connection in IDA8C (Matrix Unit), plus 2
zones for backup amplifiers. The figure

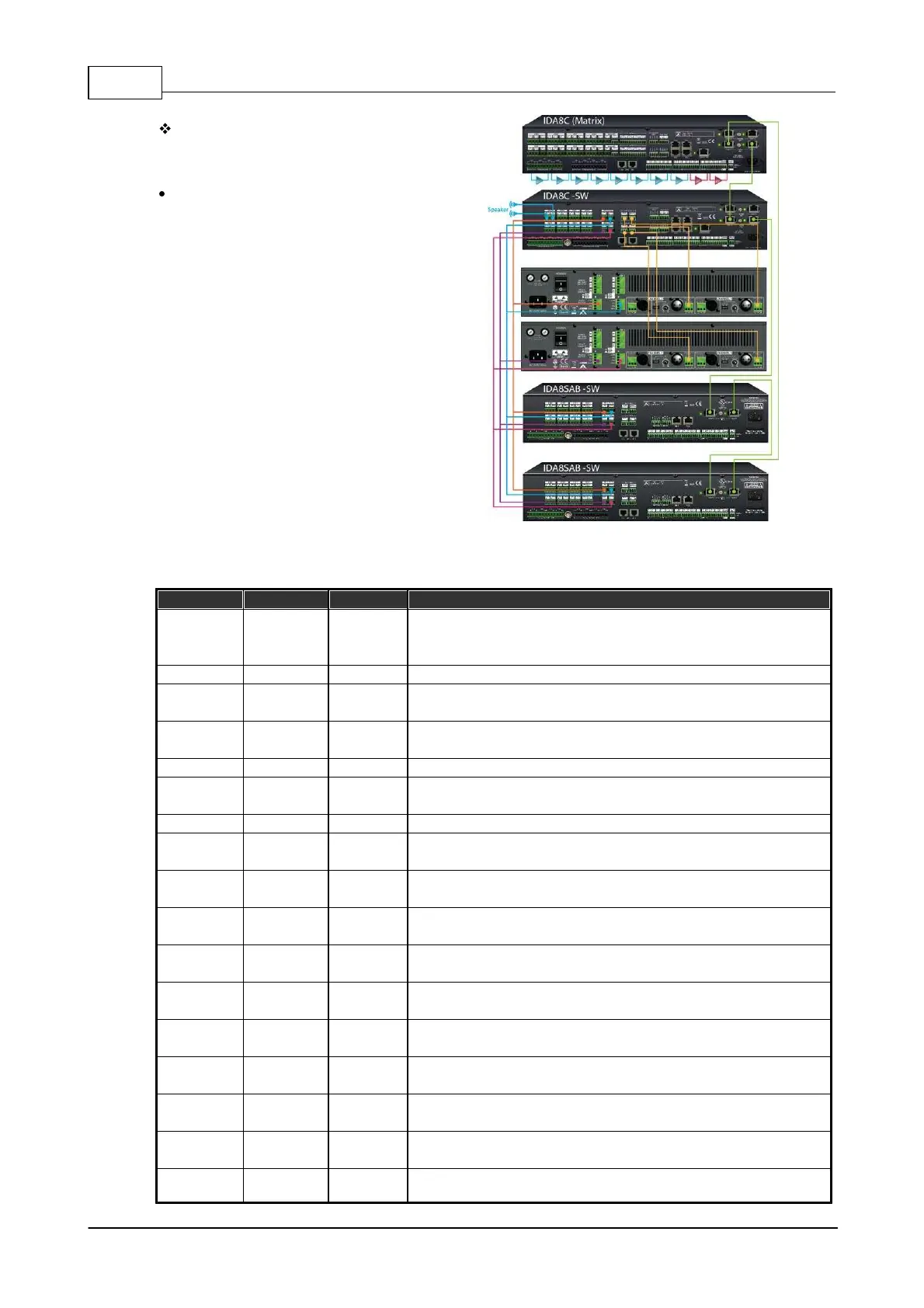

below shows the basic amplifier wiring of
matrix unit and switch mode unit by using
Ateis Local-Net (Green line).
The Green line indicates the signal output
(Port A) of IDA8C connects to (Port B) of
IDA8C-SW, and send the signal back
from (Port B) of IDA8C-SW to (Port A) of
IDA8C via Local-Net.
3.1.5.4 Peripherals
The following table list the peripherals supported by IDA8C-SW.
Paging where operator is close to the IDA8C.
Remote console with paging ability.
Remote console for Paging and Event Triggering(Element
Control, Master/Sub Preset Control).
Remote console for Master/Sub Preset Controlling and
Element Controlling.
Evacuation Input extension.
Evacuation Input & output extension
Auto noise gain for audio signals
Ethernet type of auto noise gain for audio signals
Paging, Element Control and Master/Sub Preset Control.
Parameters Control and Master/Sub Preset Control.
Wall mounted cabinet remote paging console with 8 buttons/
zones.
Wall mounted cabinet remote paging console with 16 buttons/
zones.
Wall mounted cabinet remote paging console with touch
screen and Fireman Microphone.
Wall mounted cabinet remote paging console with telephone
styled microphone.
Wall mounted cabinet remote paging console with 24 buttons/
zones and 2 extra selectable microphone sources.
A grouped console is comprised of a pad with a monitoring
