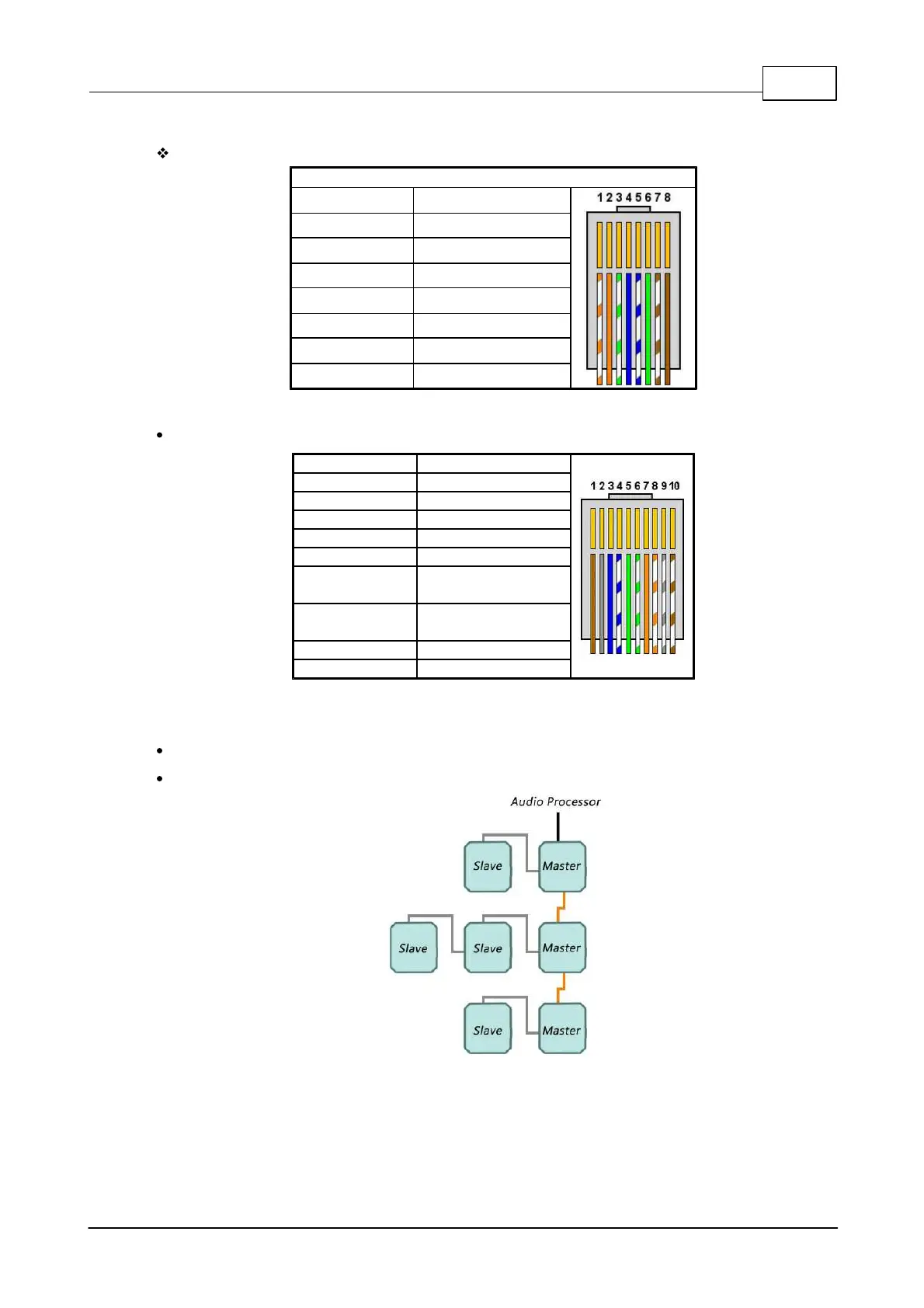

4.12.5 8 Pin RJ-45/10 Pin RJ-45
8-pin STP CAT5/6 cable
8-pin STP CAT5/6 cable with metal shielded connector
Pin1
RS-485 B
Pin2
RS-485 A
Pin3
Line in -
Pin4
24VDC
Pin5
Ground
Pin6
Line in +
Pin7
Line out -
Pin8
Line out +
A straight FTP CAT5 cable 5 pairs is needed (provided with PPM).
Pin1
Slave RS-485 A
Pin2
24VDC
Pin3
Master RS-485
Pin4
Master RS-485 A
Pin5
Line out + ( PPM Mic)
Pin6
Line out - (PPM Mic)
Pin7
Line in + (PPM
speak.)
Pin8
Line in – (PPM
speak.)
Pin9
Ground
Pin10
Slave RS-485 B
4.12.6 Topology of Master & Slave Switch
Master PPM: Switch the [MASTER/SLAVE switch] selection to [Master].
Slave PPM: Switch the [MASTER/SLAVE switch] selection to [Slave]. See the picture as below
