IDA8 Global-Net User Manual436
© 2020, ATEÏS. All rights reserved.
Pins at the Top
Rd: Redial when the state of signal
is from low to high.
F: Flashes when making a 3-way
calling. Active if state of signal from
lo to hi.
Pins at the Bottom
Rd: The telephone line(RJ11 connector) connection is
correct.
S: Whether the set port is connected to the telephone or
not.
F: The telephone line(RJ11 connector) connection is
failed.
C: The caller and receiver are in the conversation at the
moment.
D: The receiver hasn't picked up the call which is calling
by IDA8C.
Ri: The calling to IDA8C hasn't been picked up yet.
B: The telephone line of receiver is busy now.

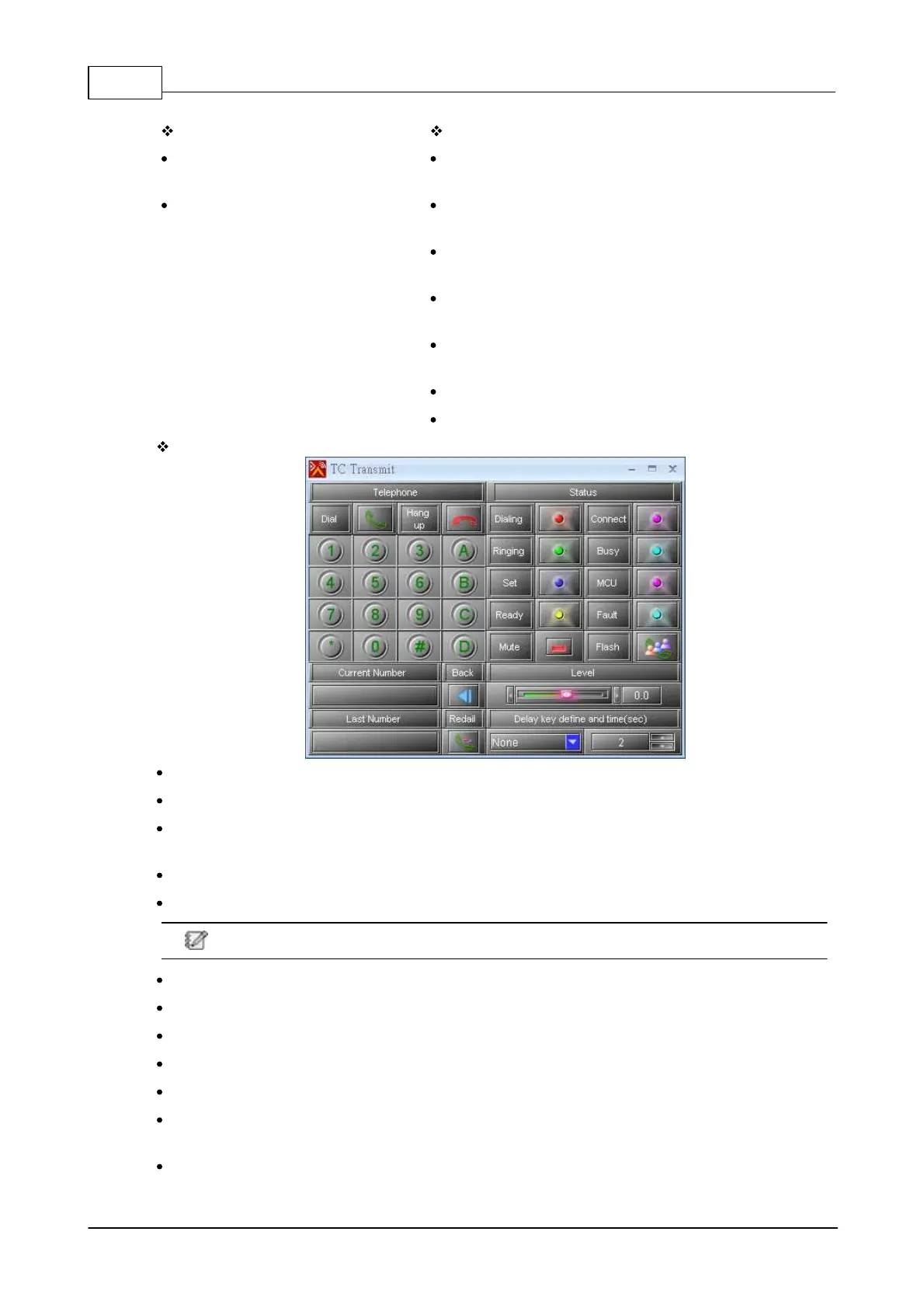

Control Window
Dial: This button can be used as [Dial] or [Receive] a phone call.
Hang up: Hang up the call.
Digit Keys: 16 digit keys includes the numbers from "0" to "9", symbols "*" and "#", letters from
"A" to "D".
Current Number: Record the numbers which are dialed or displayed the incoming calls.
Back: Erase the last digit of current Number.
A long press by pressing and holding the [BACK] button will delete all the dial numbers.
Last Number: Display the number of last call.
Redial: Redial the last number.
Dialing: The status of telephone card is dialing.
Ringing: An incoming call needs to be received.
Set: Light up if the external telephone set doesn't connect to the telephone card.
Ready: Light up when the telephone line and CAT5 cable connection are connected to the system
unit.
Connect: Light up after a few seconds of the dialing call.
