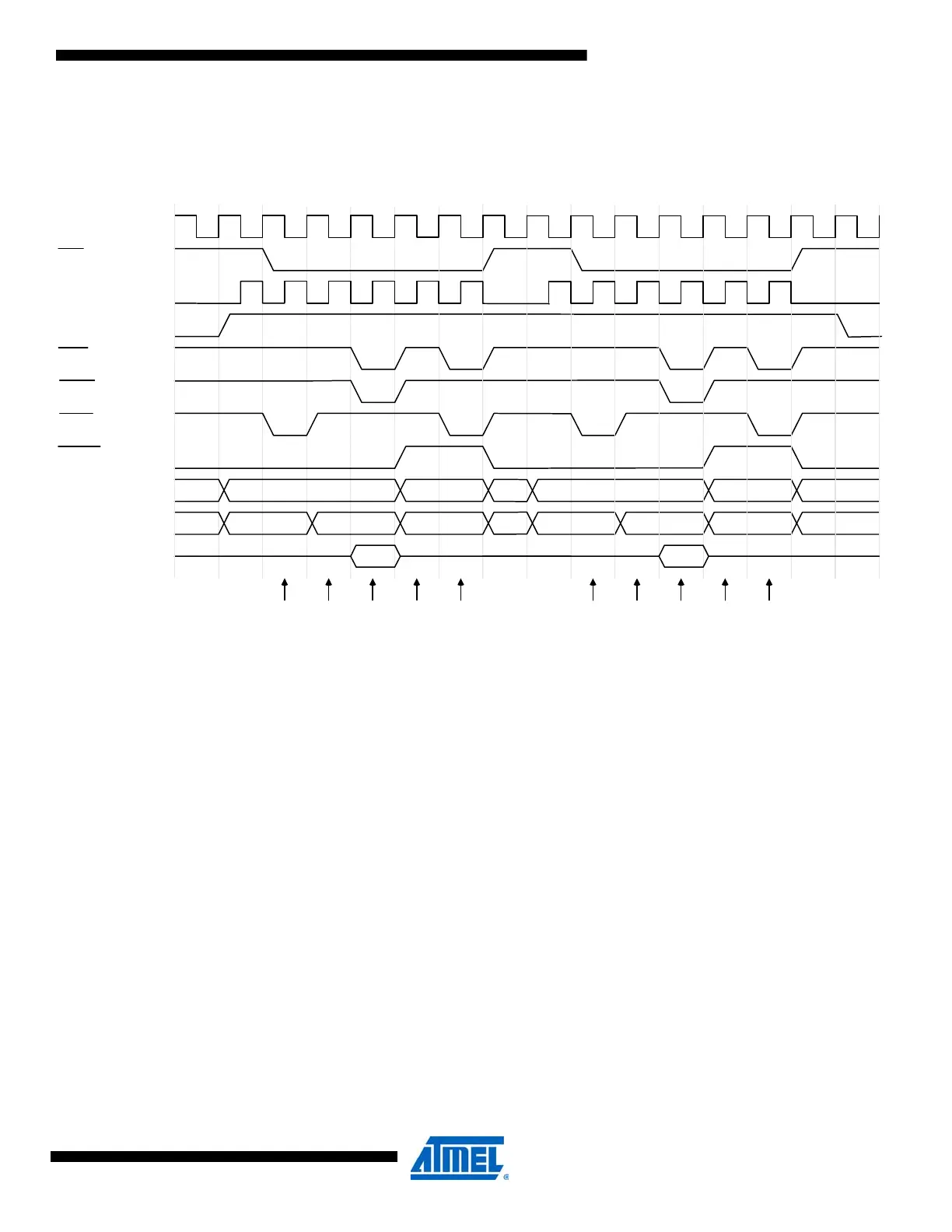

Figure 36-37. Two consecutive writes
* The number of NOPs is equal to ROWCOLDLY[2:0] (ROWCOLDLY = 1 is shown)
** The number of NOPs is equal to WRDLY[1:0] + 1 (WRDLY = 0 is shown)
*** The number of NOPs is equal to RPDLY[1:0] (RPDLY = 1 is shown)
Precharge All Banks
Bank Adr 0x0
D[7:0]
Row Adr Col Adr 0x400
Active Write NOP* NOP**
Two consecutive writes
Bank Adr 0x0
Row Adr Col Adr 0x400
D[7:0]
Precharge All Banks Active Write NOP* NOP**
CLK
CKE
CAS
RAS
DQM
BA[1:0]
A[11:0]
D
Clk
PER2
WE
CS
