Atmel AVR XMEGA AU

36.10 LPC 2- Port ALE12 no CS

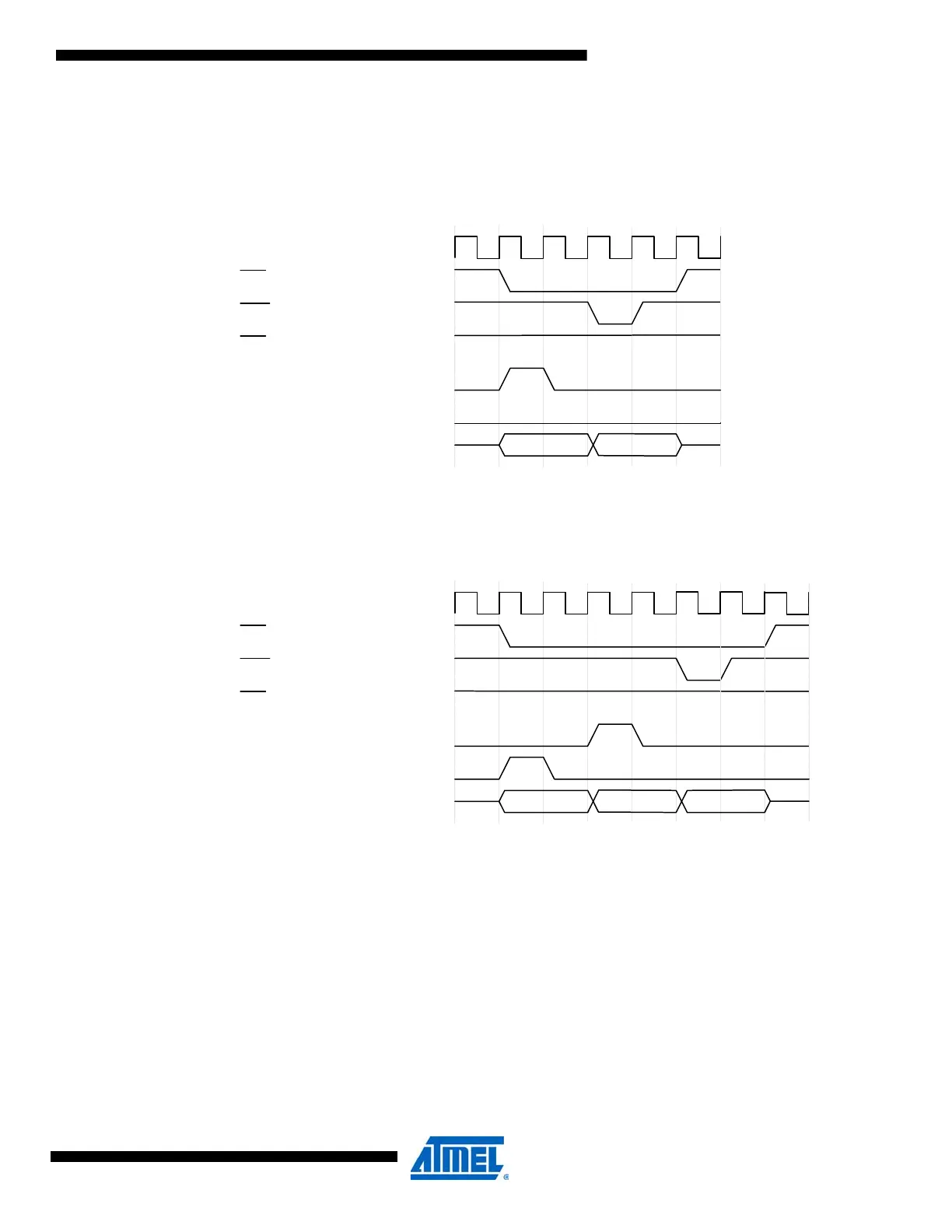

Figure 36-31. Write, ALE1

Figure 36-32. Write, ALE1 + ALE2

A[7:0]

ALE1

Write, ALE1

ALE2

D[7:0]/A[7:0]/A[15:8]

D[7:0]

Clk

PER2

RE

WE

CS

D[7:0]A[7:0]

ALE1

Write, ALE1 + ALE2

A[15:8]

ALE2

D[7:0]/A[7:0]/A[15:8]

Clk

PER2

RE

WE

CS
