Atmel AVR XMEGA AU series User Manual

75
8331B–AVR–03/12
Atmel AVR XMEGA AU

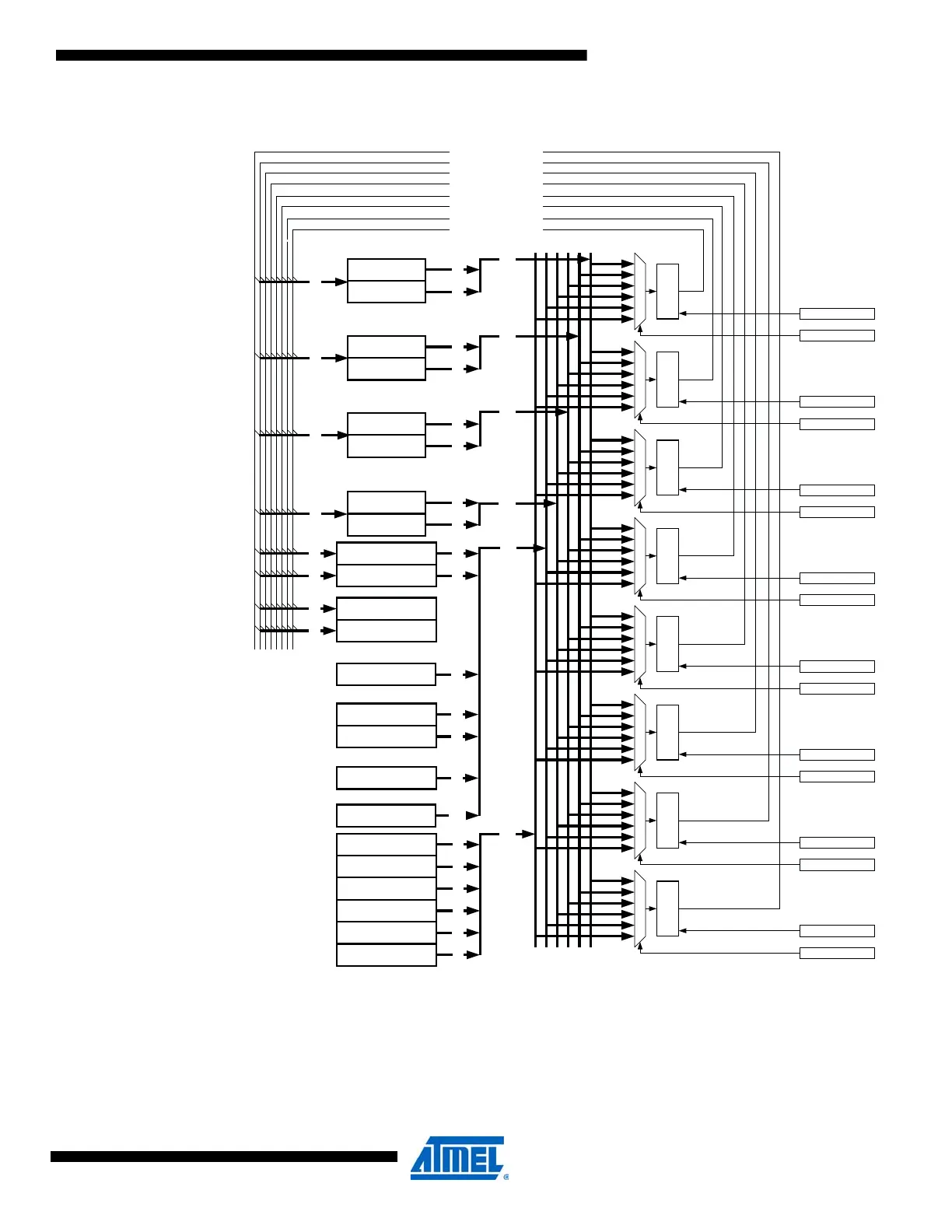

Figure 6-3. Event routing network.
Eight multiplexers means that it is possible to route up to eight events at the same time. It is also
possible to route one event through several multiplexers.
Not all XMEGA devices contain all peripherals. This only means that a peripheral is not available
for generating or using events. The network configuration itself is compatible between all
devices.
(48)
PORTA
PORTB
PORTC
PORTD
PORTE
PORTF
ADCA
ADCB
DACA
DACB
TCF0
TCF1
(6)
(4)
TCE0
TCE1
(6)
(4)
TCD0
TCD1
(6)
(4)
TCC0
TCC1
(6)
(4)
(8)
(8)
(8)
(10)
(10)
(10)
(10)
(36)
(4)
(4)
(8)
(8)
(8)
(8)
(8)
ACA
ACB
RTC
(8)
(8)
(8)
(8)
(8)
(8)
CH0MUX[7:0]
CH1MUX[7:0]
CH2MUX[7:0]
CH3MUX[7:0]
CH4MUX[7:0]
CH5MUX[7:0]
CH6MUX[7:0]
CH7MUX[7:0]
CH1CTRL[7:0]
CH0CTRL[7:0]
CH2CTRL[7:0]
CH3CTRL[7:0]
CH4CTRL[7:0]
CH5CTRL[7:0]
CH6CTRL[7:0]
CH7CTRL[7:0]
Event Channel 7
Event Channel 6
Event Channel 5
Event Channel 4
Event Channel 3
Event Channel 2
Event Channel 1
Event Channel 0
USB
(4)
Clk
PER
(16)
(2)
(3)
(3)
