User's Manual 140 Document #: LTRT-27055
Mediant 1000B Gateway & E-SBC
3. Configure an Ethernet Device according to the parameters described in the table
below.
4. Click Apply.

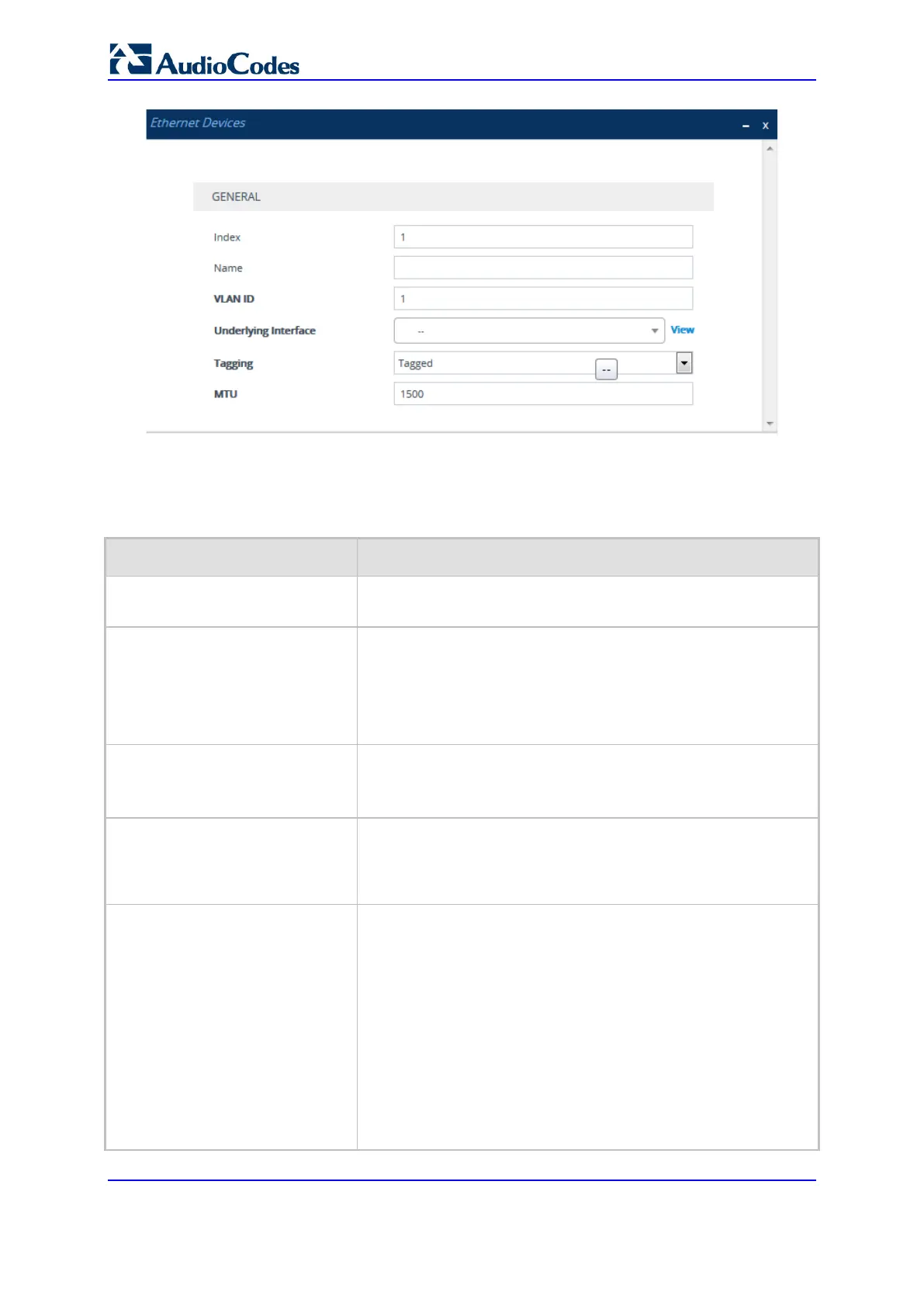

Table 12-4: Ethernet Devices Table Parameter Descriptions
Parameter Description
Index
[DeviceTable_Index]
Defines an index number for the new table row.
Note: Each row must be configured with a unique index.
Name
name
[DeviceTable_DeviceName]
Defines a name for the Ethernet Device. The name is used to
associate the Ethernet Device with an IP network interface in the
IP Interfaces table ('Underlying Device' field - see ''
Network Interfaces'' on page 142
) and/or with a static route in the
Static Routes table ('Device Name' field - see ''Configuring Static
IP Routing'' on page
149).
VLAN ID
vlan-id
[DeviceTable_VlanID]
Defines a VLAN ID for the Ethernet Device.
The valid value is 1 to 3999. The default is 1.
Note: Each Ethernet Device must have a unique VLAN ID.
Underlying Interface
underlying-if
[DeviceTable_UnderlyingInterface]
Assigns an Ethernet Group to the Ethernet Device. To configure
Ethernet Groups, see Configuring Ethernet Port Groups on page
136.
Note: The parameter is mandatory.
Tagging
tagging
[DeviceTable_Tagging]
Defines VLAN tagging for the Ethernet Device.
[0] Untagged = (Default for pre-configured Ethernet Device)
The Ethernet Device accepts untagged packets and packets
with the same VLAN ID as the Ethernet Device. Incoming
untagged packets are assigned the VLAN ID of the Ethernet
Device. The Ethernet Device sends these VLAN packets
untagged (i.e., removes the VLAN ID).
[1] Tagged = (Default for new Ethernet Devices) The Ethernet
Device accepts packets that have the same VLAN ID as the
Ethernet Device and sends packets with this VLAN ID. For all
Ethernet Devices that are associated with the same Ethernet
Group (see 'Underlying Interface' parameter above) and
configured to Tagged, incoming untagged packets received
