Version 7.2 263 Mediant 1000B Gateway & E-SBC
User's Manual 15. Services
The flowchart below summarizes the device's process for querying the AD and routing the
call based on the query results:

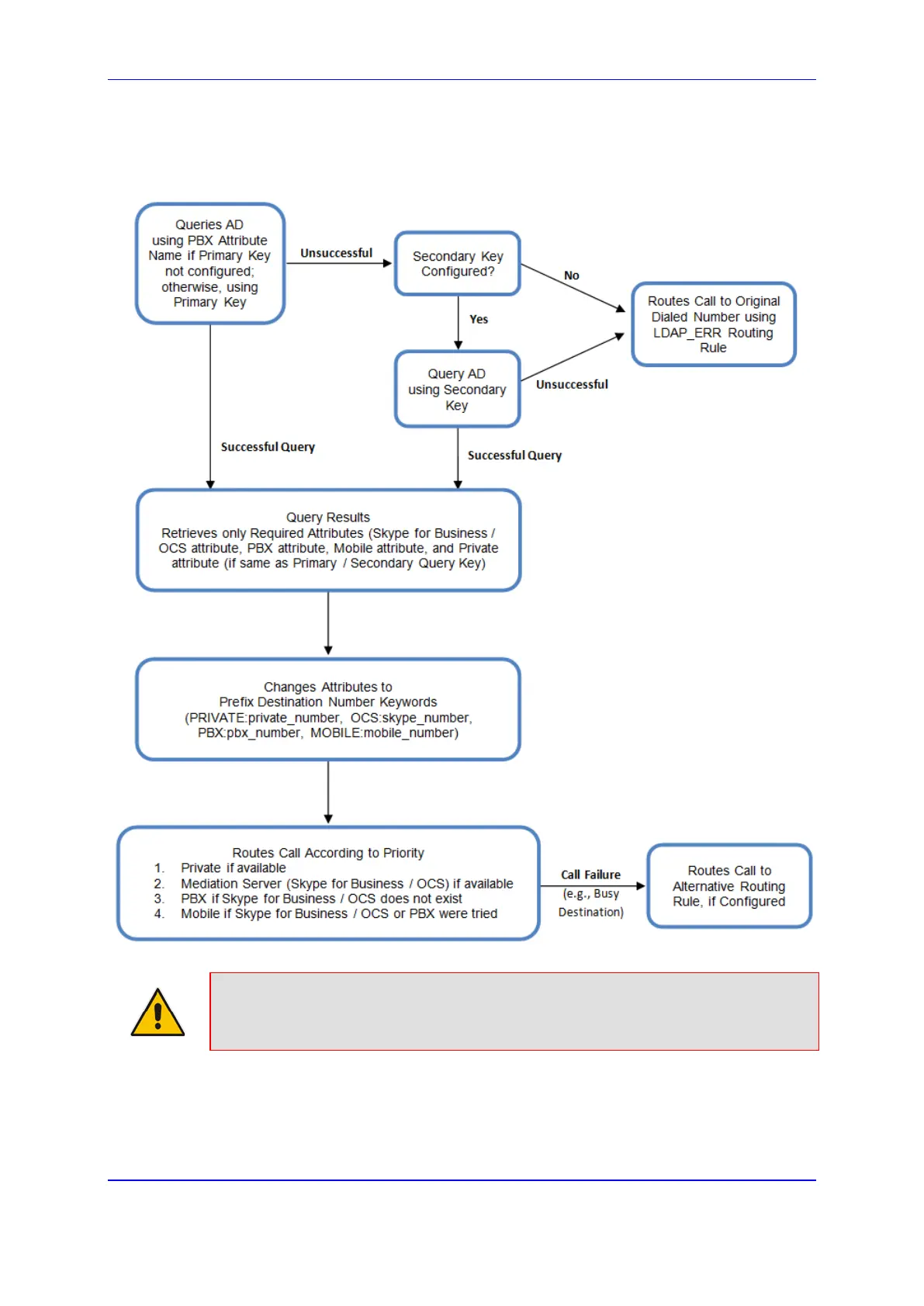

Figure 15-37: Querying AD in Skype for Business Environment
Note: If you are using the device's local LDAP cache, see ''Configuring the Device's
LDAP Cache'' on page 251 for the LDAP query process.
15.3.12.2 Configuring AD-Based Routing Rules
The following procedure describes how to configure outbound IP routing based on LDAP
queries.
