42 Replacing Modules
To replace the device's modules, you must use the Web interface in combination with
physical removal and insertion of the modules. Therefore, when you replace a module, you
first need to 'software-remove' it, extract it physically from the chassis, insert a new module,
and then 'software-insert' it using the Web interface.
Warnings:
• You must replace a module with the same type of module and in the same module
slot number. For example, a module with two digital spans in Slot 1 must be
replaced with a module with two digital spans in Slot 1.
• When the device is housed with only one module, removal of the module causes a
device reset.
• Before inserting a module into a previously empty slot, you must power down the
device.
 To replace a module:
1. Remove the module:
a. Open the Monitor home page (Monitor menu > ).
b. Click the title of the module that you want to replace; the Remove Module button
appears:

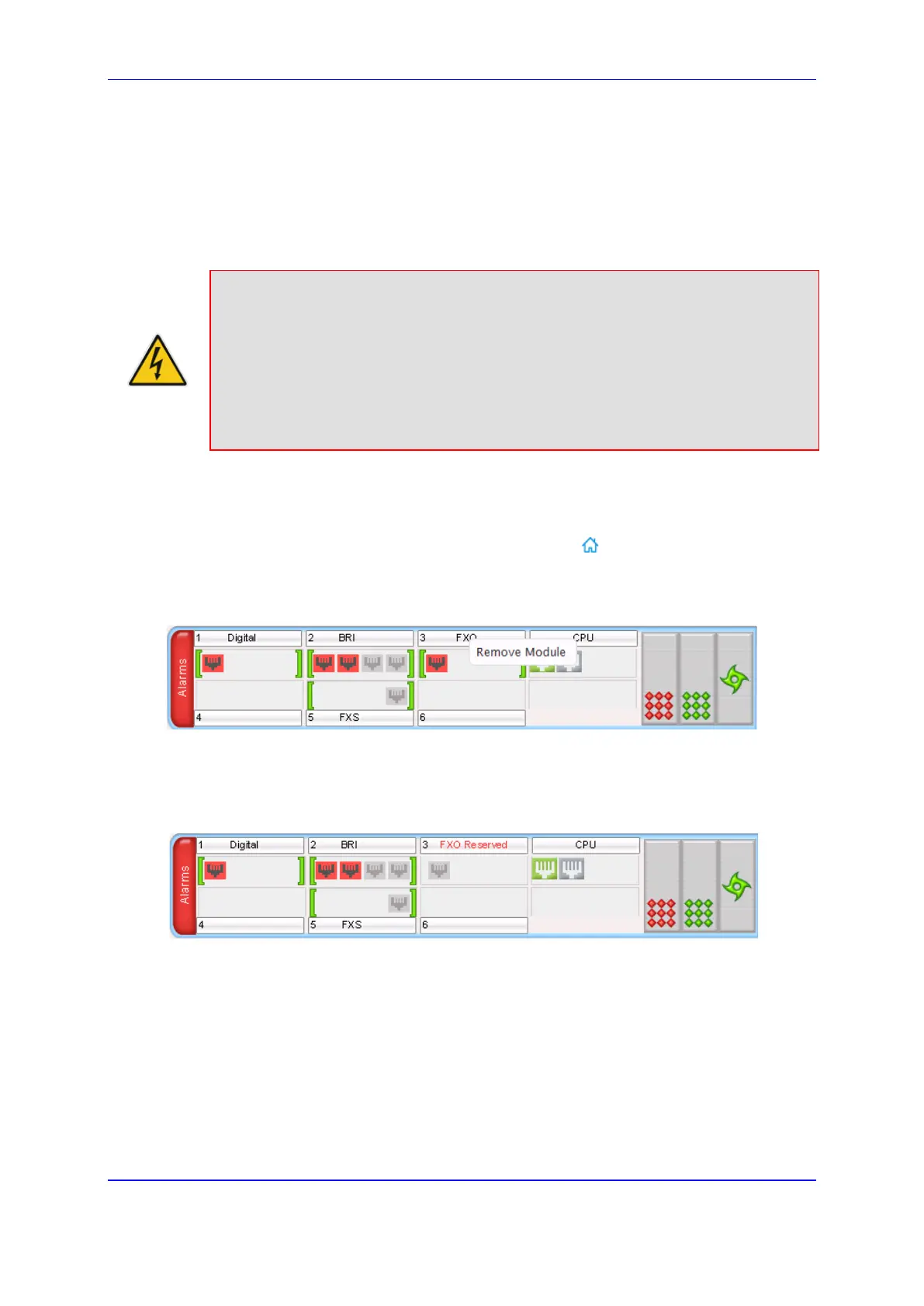

Figure 42-1: Clicking Module Title (e.g., FXS)
c. Click the Remove Module button; a message box appears requesting you to
confirm module removal.
d. Click OK; after a few seconds, the module is software-removed, the module's
port status icons turn gray and the name of the module is suffixed with the word
"Reserved":
e. Physically remove the module from the chassis.
