The FXS Coefficient types provide best termination and transmission quality adaptation for
two FXS line type interfaces. The parameter affects the following AC and DC interface
parameters:

DC (battery) feed characteristics

AC impedance matching

Transmit gain

Receive gain

Hybrid balance

Frequency response in transmit and receive direction

Hook thresholds

Ringing generation and detection parameters
 To select the FXO and FXS Coefficient types:
1. Open the Analog Settings page (Setup menu > Signaling & Media tab > Gateway
folder > Analog Gateway > Analog Settings).

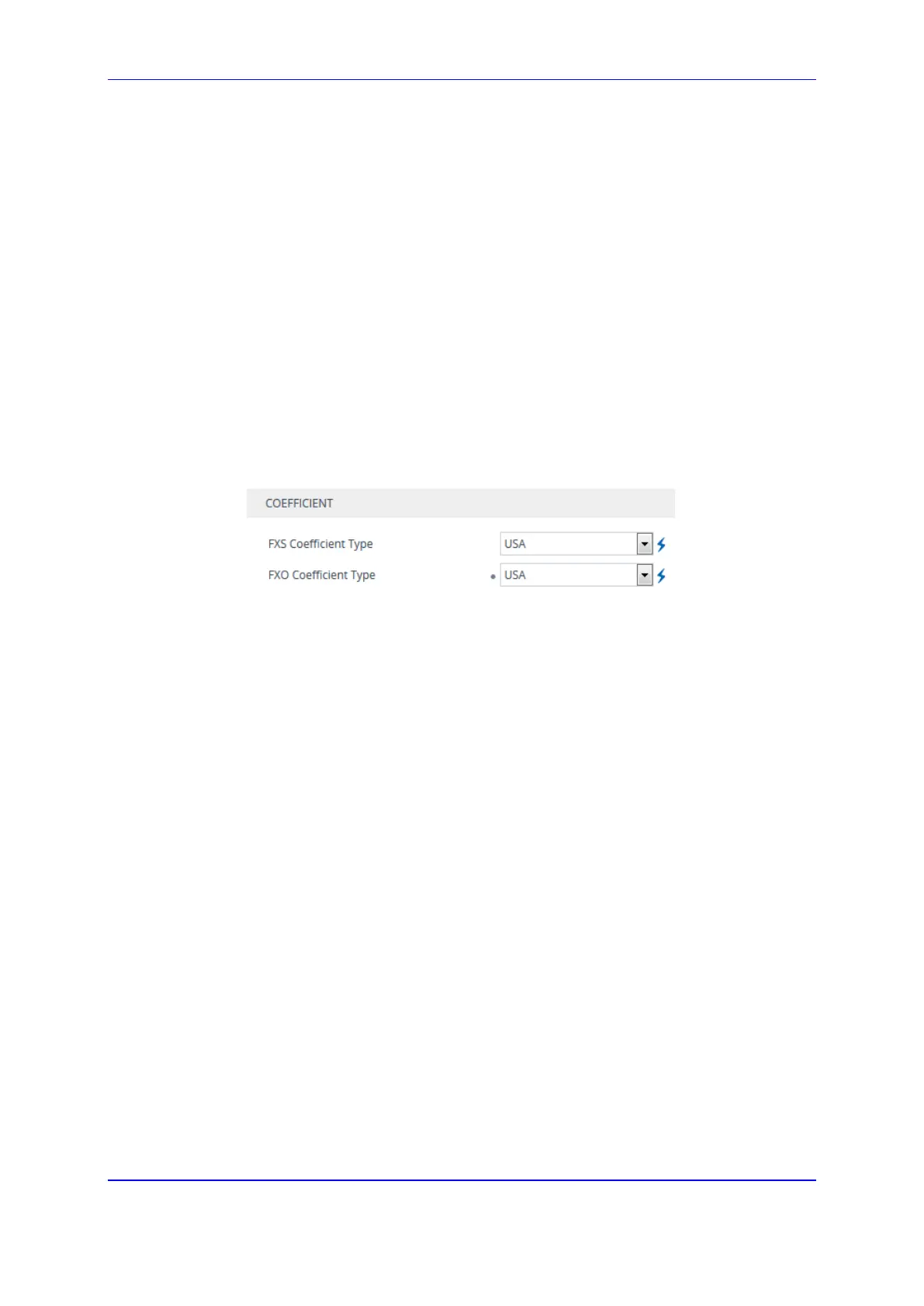

Figure 28-10: Configuring FXS/FXO Coefficient Types
2. From the 'FXS Coefficient Type' drop-down list (FXSCountryCoefficients), select the
required FXS Coefficient type.
3. From the 'FXO Coefficient Type' drop-down list (CountryCoefficients), select the
required FXO Coefficient type.
4. Click Apply, and then reset the device with a save-to-flash for your settings to take
effect.
28.13 FXO Operating Modes
This section provides a description of the device's FXO operating modes:

For IP-to-Tel calls (see ''FXO Operations for IP-to-Tel Calls'' on page 631)

For Tel-to-IP calls (see ''FXO Operations for Tel-to-IP Calls'' on page 634)

Call termination on FXO devices (see ''Call Termination on FXO Devices'' on page
636)
28.13.1 FXO Operations for IP-to-Tel Calls
The FXO device provides the following operating modes for IP-to-Tel calls:

One-stage dialing (see ''One-Stage Dialing'' on page 632)
• Waiting for dial tone (see ''Two-Stage Dialing'' on page 633)
• Time to wait before dialing
• Answer supervision

Two-stage dialing (see ''Two-Stage Dialing'' on page 633)

Dialing time: DID wink (see ''DID Wink'' on page 633)
