To refresh the status indication, click the Refresh Network View button (described below
in Item #5).
To open the Physical Ports table, click any port icon, and then from the drop-down menu,
choose View List. You can then view and edit all the ports in the table.
5 If you keep the Network view page open for a long time, you may want to click the
Network View button to refresh the connectivity status display of the Ethernet ports.
12.2 Configuring Physical Ethernet Ports
The Physical Ports table lets you configure the device's Ethernet ports. This includes
configuring port speed and duplex mode (half or full), and a brief description of the port.
The table also displays the status of the port as well as the port group (Ethernet Group) to
which the port belongs. For more information on Ethernet Groups, see ''Configuring
Ethernet Port Groups'' on page 136.

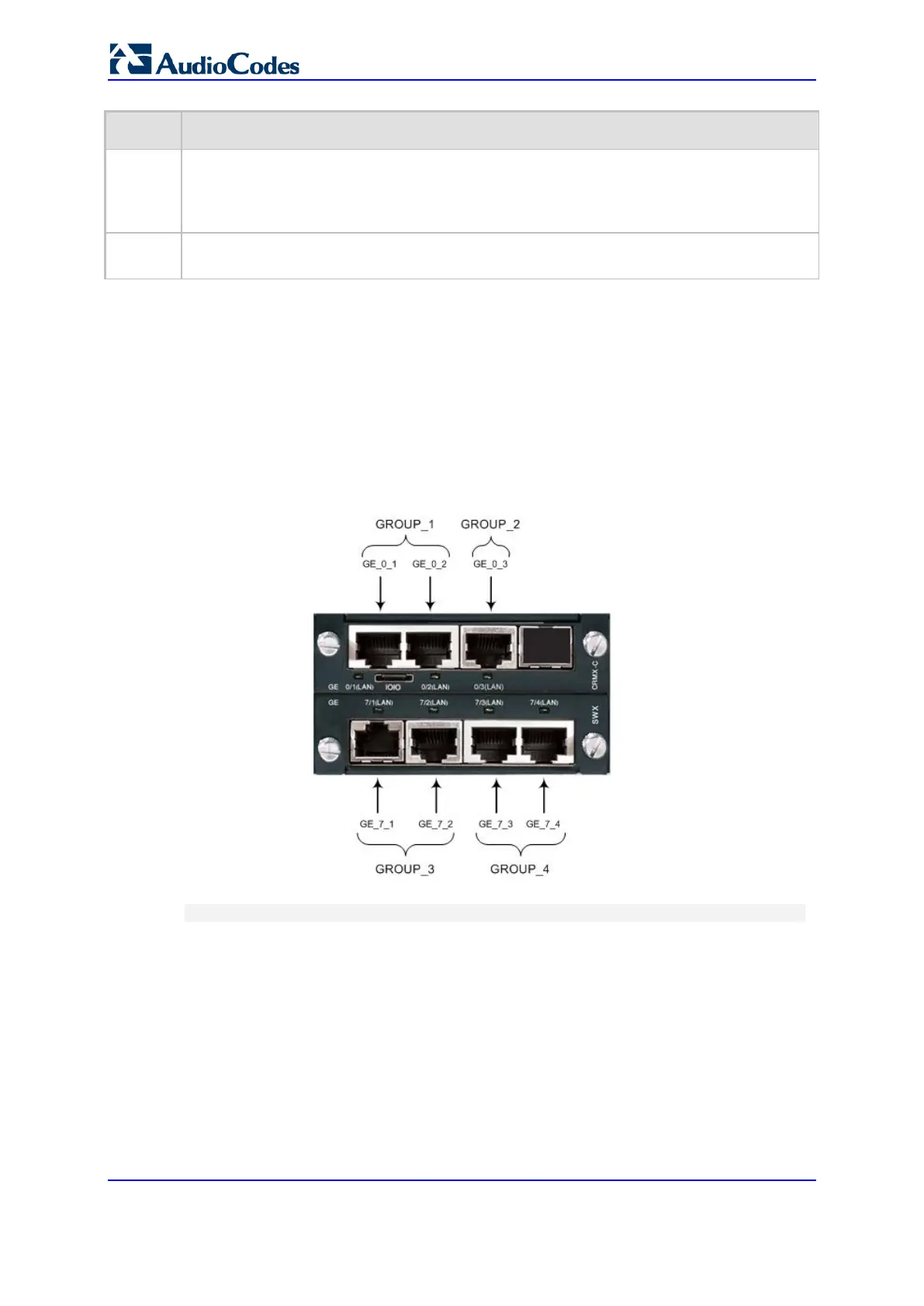

The names of the ports displayed in the device's management tools (e.g., Web interface)
are different to the labels of the physical ports on the chassis. The figure below shows the
mapping between the two:
You can also view the mapping of the ports using the following CLI command:
# show network physical-port
To Next Page
