Automation Direct DURApulse GS4 User Manual

Chapter 4: AC Drive Parameters
Page 4–49
DURApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
grouP P2.xx details – v/hz ParaMeters
Type Hex Addr Dec Addr
P2.00 Volts/Hertz Settings
R/W 0200 40513
Range/Units (Format: 16-bit binary) Default
0: General Purpose
1: High Starting Torque (TQR)
2: Fans and Pumps
3: Custom
4: 1�5 Power Curve
5: Squared Curve
0
Common setting of V/Hz curve.
• When setting to 1 or 2, the 2nd and the 3rd voltage frequency setting are invalid�
• If a motor load is a variable torque load (the torque is in direct proportion to the speed, such as
the load of a fan or a pump), the drive will decrease input voltage to reduce flux loss and iron loss
of the motor at low speed with low load torque to raise the overall efficiency�
• When setting the higher power V/Hz curves (selection #4 or #5), low frequency torque will be
even lower than General Purpose� Therefore it is not suitable for fast acceleration/deceleration� It
is recommended NOT to apply this parameter for any fast acceleration/deceleration�

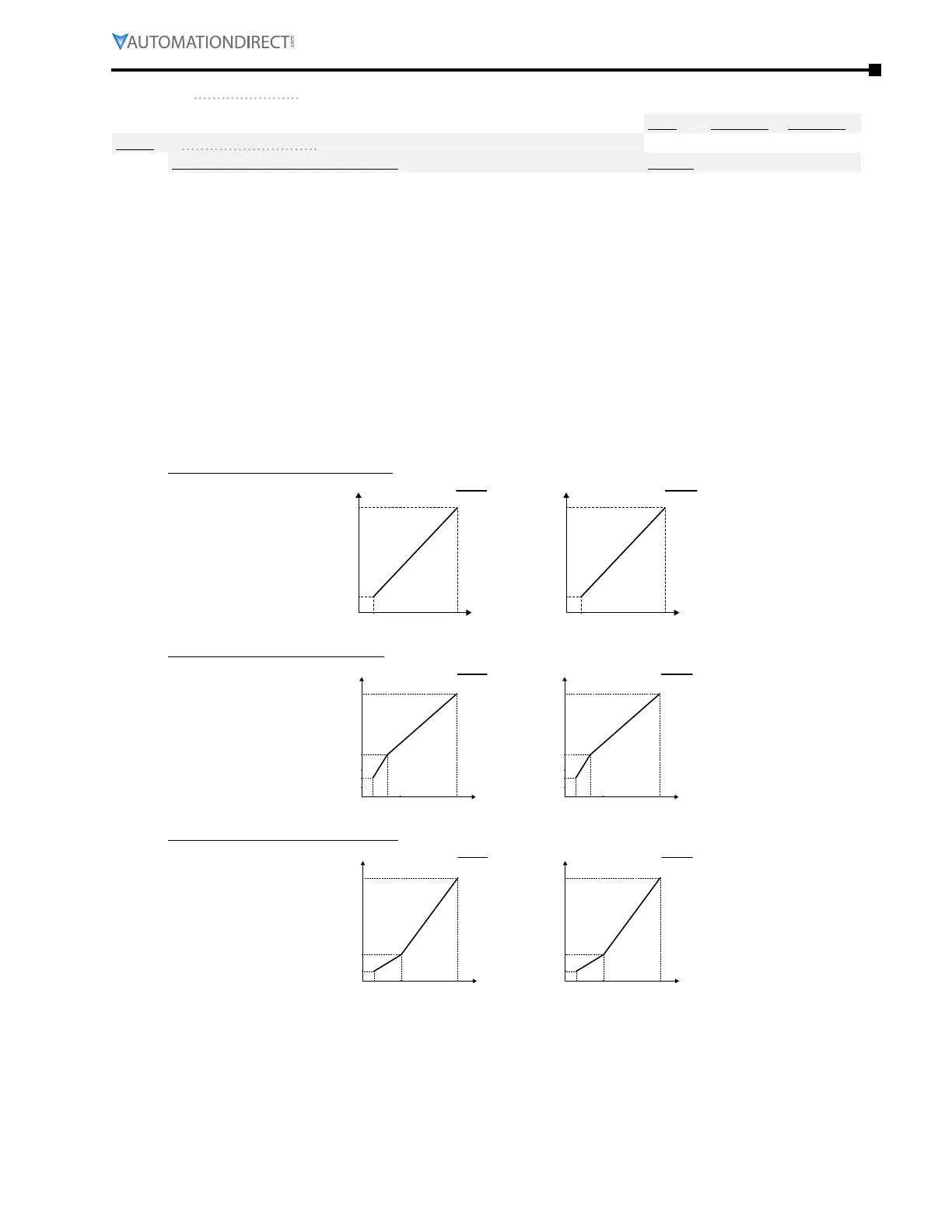

Setting 0: General Pupose Curve
V
Hz
220
10
1.560.0
Motor spec 50Hz
V
Hz
220
10
1.350.0
Motor spec 60Hz
Setting 1: High Starting Torque
Hz
220
18
1.5 60.0
23
3
Hz
220
14
1.350.0
23
2.2
V Motor spec 50Hz
V
Motor spec 60Hz
Setting 2: Fans and Pumps Curve
Hz
220
10
1.560.0
50
30
Hz
220
10
1.350.0
50
25
V Motor spec 50Hz
V
Motor spec 60Hz
