Chapter 4: AC Drive Parameters
Type Hex Addr Dec Addr
P2.11 Control Mode
♦R/W 020B 40524
Range/Units (Format: 16-bit binary) Default
0: V/Hz Open Loop Control
1: SVC Sensorless Vector
0

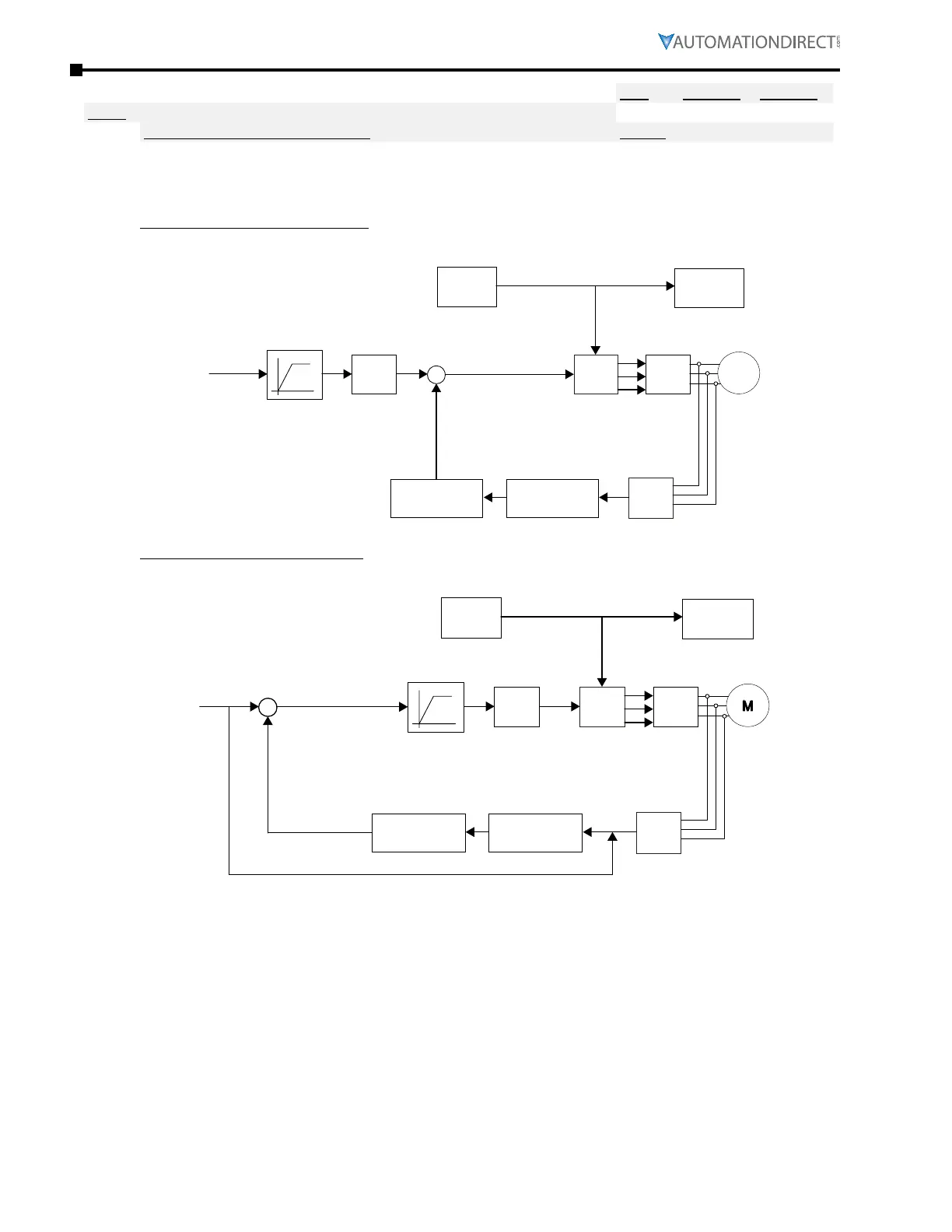

This parameter determines the control method of the GS4 drive:
Setting 0: V/Hz open loop control
User can design proportion of V/Hz as required and can control multiple motors simultaneously.
V/Hz
table
AVR
P6.10
IGBT
PWM
M
l
rms
Voltage
Detection
Protection
P0.04,P0.02
P0.00,P2.04
P2.05,P2.06
P2.07,P2.08
P2.09
P0.04
P0.02
P0.00
P0.01
P0.08
P0.03
P0.09
Current
Detection
DC BUS
DC BUS Voltage
P2.03 P2.02
Accel/Decel
time
F
cmd
P4.00
Torque
Compensation
Torque
Comp Filter
X
+
Voltage
Compensation
+
Setting 1: SVC Sensorless Vector
Get the optimal control by the auto-tuning of motor parameters.
V/Hz
table
AVR
P6.10
IGBT
PWM
l
rms
Voltage
Detection
Protection
P0.04
P0.02
P0.00
P0.01
P0.08
P0.03
P0.09
Current
Detection
DC BUS
DC BUS Voltage
P2.25 P2.01
Accel/Decel
time
F
cmd
P4.00
Slip
Compensation
Slip
Comp Filter
+
Slip
Compensation
+
P0.04,P0.02
P0.00
