Automation Direct DURApulse GS4 User Manual

Chapter 4: AC Drive Parameters
Page 4–55
DURApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Type Hex Addr Dec Addr
P2.12 Motor 2 Middle Output Frequency 1
R/W 020C 40525
Range/Units (Format: 16-bit unsigned) Default
0�00~600�00 Hz
3�00
Type Hex Addr Dec Addr
P2.13 Motor 2 Middle Output Voltage 1
♦R/W 020D 40526
Range/Units (Format: 16-bit unsigned) Default
230V: 0�0~240�0V
460V: 0�0~480�0V
230V: GS4-21P0~27P5: 15�0V;
GS4-2010+: 14�0V
460V: GS4-41P0~47P5: 30V;
GS4-4010+: 28�0V
Type Hex Addr Dec Addr
P2.14 Motor 2 Middle Output Frequency 2
R/W 020E 40527
Range/Units (Format: 16-bit unsigned) Default
0�00~600�00 Hz
3�00
Type Hex Addr Dec Addr
P2.15 Motor 2 Middle Output Voltage 2
♦R/W 020F 40528
Range/Units (Format: 16-bit unsigned) Default
230V: 0�0~240�0V
460V: 0�0~480�0V
230V: GS4-21P0~27P5: 15�0V;
GS4-2010+: 14�0V
460V: GS4-41P0~47P5: 30V;
GS4-4010+: 28�0V
Type Hex Addr Dec Addr
P2.16 Motor 2 Minimum Output Frequency
R/W 0210 40529
Range/Units (Format: 16-bit unsigned) Default
0�00~599�99 Hz
1�50
Type Hex Addr Dec Addr
P2.17 Motor 2 Minimum Output Voltage
♦R/W 0211 40530
Range/Units (Format: 16-bit unsigned) Default
230V: 0�0~240�0V
460V: 0�0~480�0V
230V: GS4-21P0~27P5: 9�0V;
GS4-2010+: 7�0V
460V: GS4-41P0~47P5: 18�0V;
GS4-4010+: 14�0V
Parameters P0.11, P0.13, and P2.12~ P2.17 are used to establish the V/Hz curve of Motor 2. When
multi-function input terminals P3.04~P3.10 and P3.11~P3.16 (expansion card) are set to 14, and
enabled, then the drive will operate by following V/Hz curve of Motor 2.
P2.12~P2.17 are used only with “Custom” V/Hz parameter settings; when P2.00 is set to 03.
• P2�12 value cannot be > the value in P0�13, Motor 2 Base Frequency�
• P2�12 & P2�14 value cannot be < the value in P2�16, Motor 2 Minimum Output Frequency�
• P2�14 value cannot be > the value in P0�13, Motor 2 Base Frequency�
• P2.16 value cannot be ≥ the value in P2.14, Motor 2 Middle Output Frequency 2.

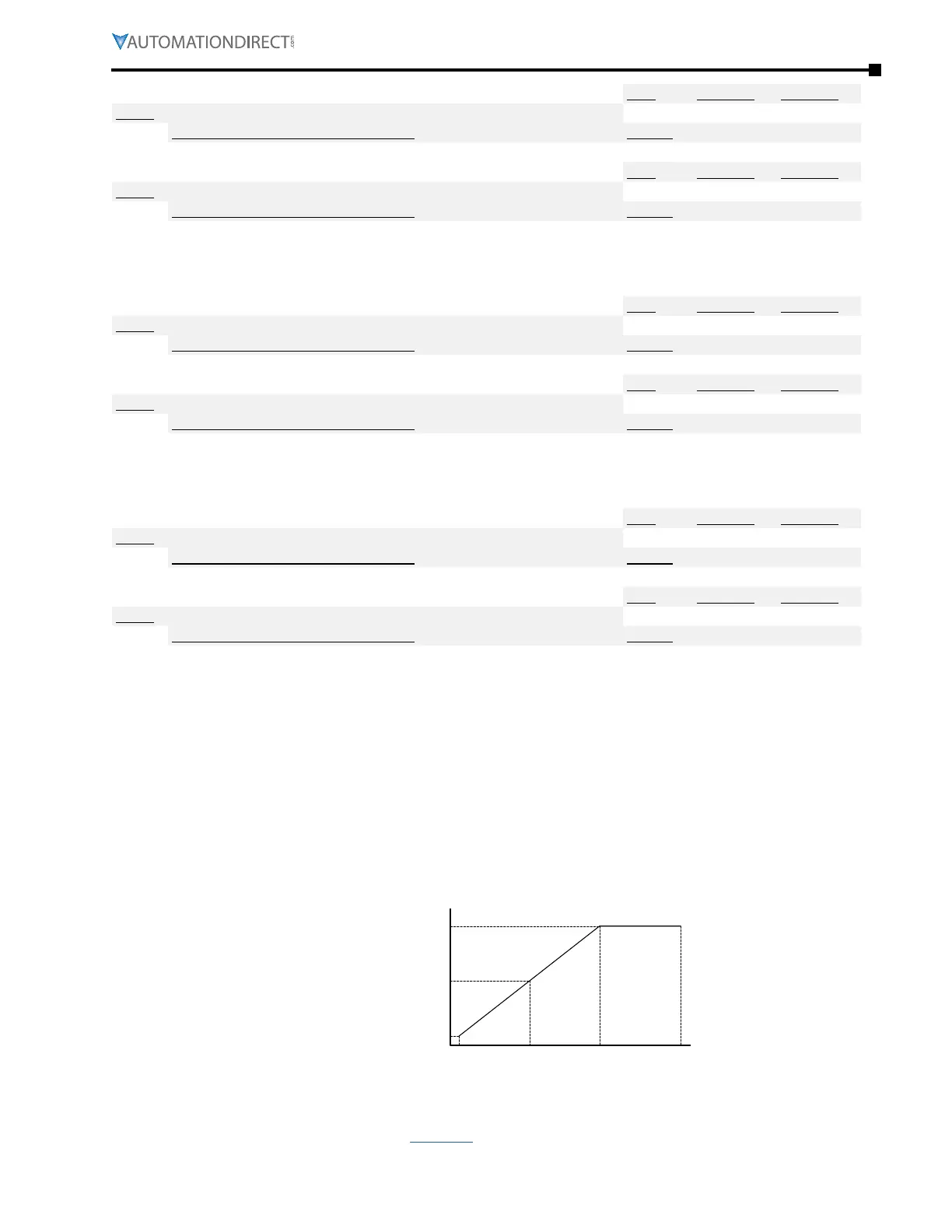

V/Hz curve
Maximum Output Voltage
P0.00 (P0.11)
Voltage
Middle Output Voltage 1
P2.05 (P2.13)
Middle Output Voltage 2
P2.07 (P0.15)
(Px.xx) = parameters for motor #2
P2.06
(P2.14)
Middle
Output
Frequency2
P2.04
(P2.12)
Middle
Output
Frequency1
P0.02
(P0.13)
Base
Frequency
P0.04
Maximum
Output
Frequency
Frequenc
y
reFer To P2.00 (volTS/herTz SeTTingS, Page 4–49) For oPeraTional inForMaTion For ParaMeTerS P2.12~P2.17.
