Automation Direct DURApulse GS4 User Manual

Chapter 4: AC Drive Parameters
Page 4–137
DURApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Type Hex Addr Dec Addr
P6.23 Base-Block Time for Speed Search
♦R/W 0617 41560
Range/Units (Format: 16-bit unsigned) Default
0�1~20�0 sec
0�5
When momentary power loss is detected, the GS4 drive will block its output and then wait for a
specified period of time (determined by P6.23, Base-Block Time) before resuming operation. This
parameter should be set at a value to ensure that any residual voltage regenerated from the motor
onto the output has disappeared before the drive is activated again.
B.B.
A
Output frequency(H)
Output voltage(V)
Output current
P6.24
Current Limit for
Speed Search
FWD Run
Time

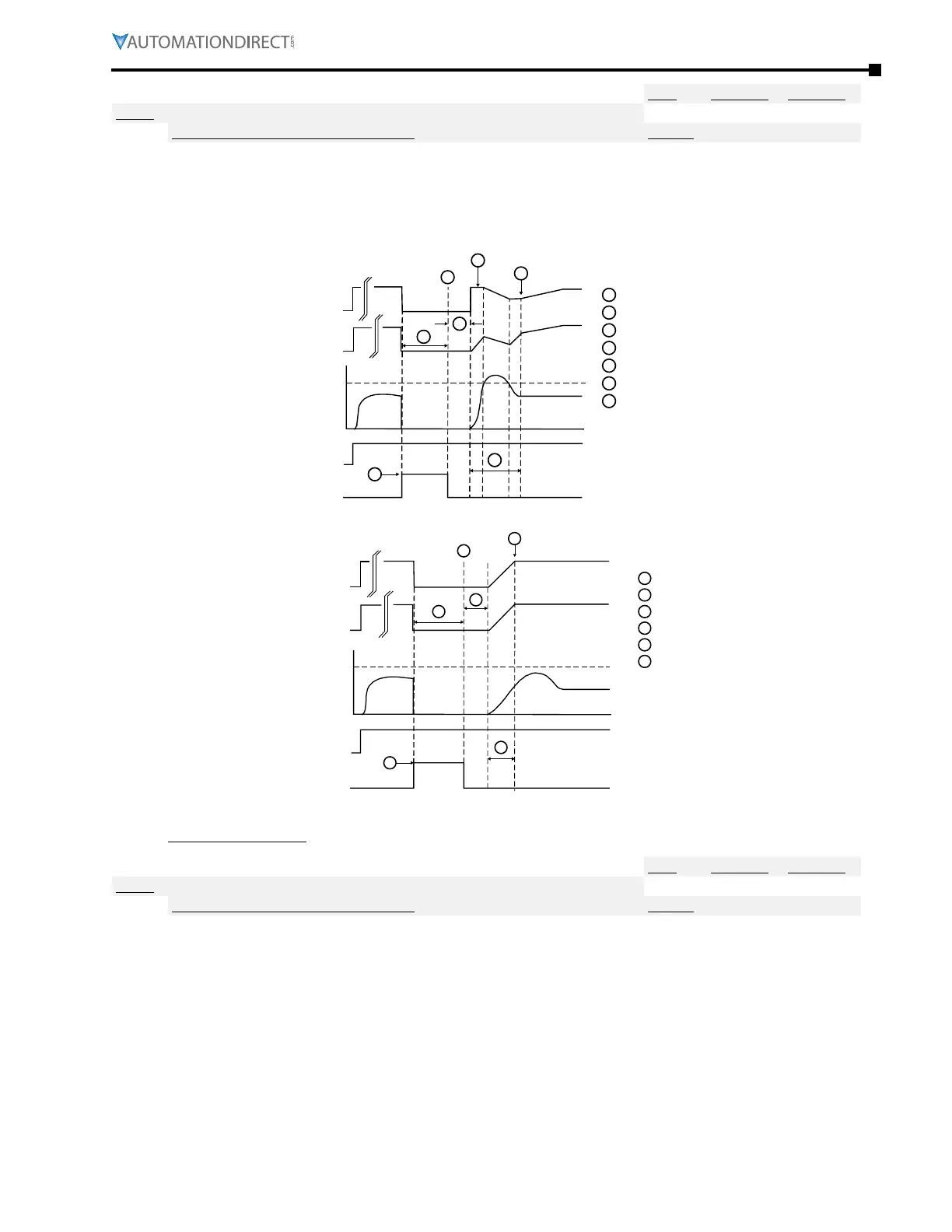

B.B. Search with last output frequency downward timing chart
Input B.B. signal
Stop output voltage
Disable B.B. signal
Waiting time P6.23
Speed search
Synchronization speed detection
Frequency command before B.B.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
Input B.B. signal
Stop output voltage
Disable B.B. signal
Waiting time P6.23
Speed search
Synchronization speed detecti
on
1
1
2
2 3
3
4
4
5
5
6
6
Time
B.B.
output current A
Output frequency (H)
P6.24 Current Limit
for Speed Search Speed
FWD Run
B.B. Search with minimum output frequency upward timing chart
Output voltage (V)
Related parameters: P6.03, P6.04, P6.05, P6.06, P6.20, P6.24.
Type Hex Addr Dec Addr
P6.24 Maximum Speed Search Current Level
♦R/W 0618 41561
Range/Units (Format: 16-bit unsigned) Default
20~200%
100
Following a momentary power loss, the GS4 drive will begin speed search operation only if the
output current is greater than the value set by P6.24.
When performing speed search, the V/Hz curve is determined by parameter group 1. The
maximum current for the optimum accel/decel and start speed search is set by P6.24.
The speed search current level will affect the synchronization time. The drive and motor will
synchronize faster when this parameter is set to a larger value, but a value that is too large may
activate overload protection.
