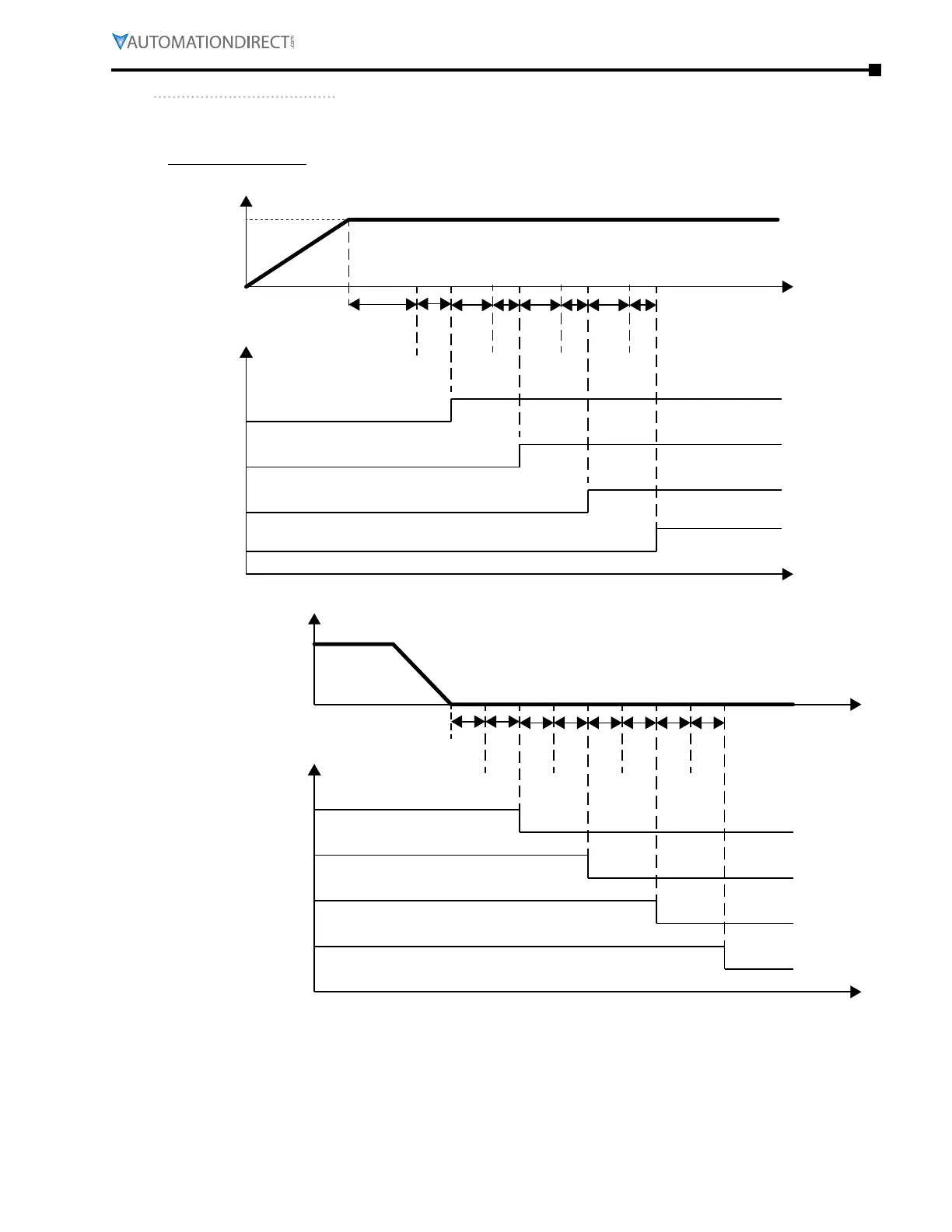

tiMing chart P10.00 = 3: quantity control
Only one motor will ever be drive-powered. Up to 8 auxiliary motors can be switched ON and OFF to
satisfy demand. The auxiliary motors are line-powered only.
Related parameters: P10.00, P10.01, P10.03, P10.04, P10.05, P10.06, P10.08
increasing deMand
P10-03 P10-05 P10-03
P10-05 P10-03 P10-05 P10-03
MOTOR 2 ON AC LINE POWER
MOTOR 3 ON AC LINE POWER
MOTOR 4 ON AC LINE POWER
P10-06
FREQ.
RELAY
R1O
R2O
RO10
RO11
P10.05
Motor 0 on GS4 AC Drive Power
decreasing deMand
P10-05 P10-04 P10-05 P10-04 P10-05 P10-04 P10-05 P10-04
MOTOR 1 ON AC LINE POWER
MOTOR 2 ON AC LINE POWER
MOTOR 3 ON AC LINE POWER
MOTOR 4 ON AC LINE POWER
P10-08
FREQ.
GS4-RELAY OUTPUT
R1O
R2O
RO10
RO11
Motor 0 on GS4 AC Drive Power
