Chapter 4: AC Drive Parameters
Page 4–205
DURApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

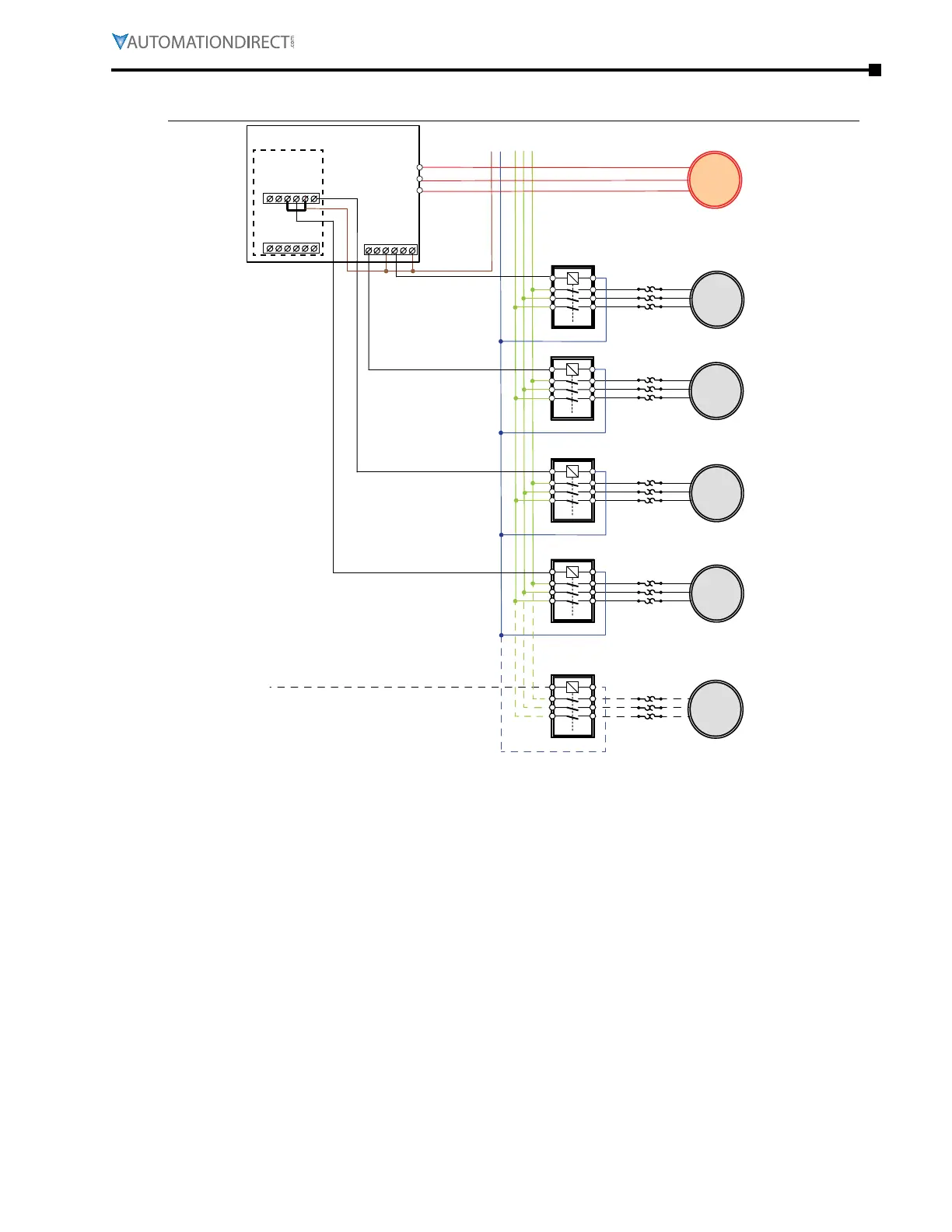

quantity control (P10.00 = 3 or 5) – wiring
(Maximum nine motors. M0 is drive-powered. The other eight AUX motors are line-powered only.)
R S T
M1
L N
M0
M2
M3
M4
U V W
R2O
R2 RC2
R1O R1C R1
GS4 DRIVE
GS4-06TR
RO13 R13
RO14 R14 RO15 R15 R12
RO12 R11 RO11 R10 RO10
M8
Contactor
O/L
...up to 8 AUX motors
Contactor
Contactor
O/L
O/L
O/L
O/L
Contactor
Contactor
