Automation Direct DURApulse GS4 User Manual

Page A–52
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Appendix A: Accessories
Fan Removal (continued)
frame e
Applicable models:
GS4-2060, GS4-2075, GS4-2100, GS4-4125, GS4-4150

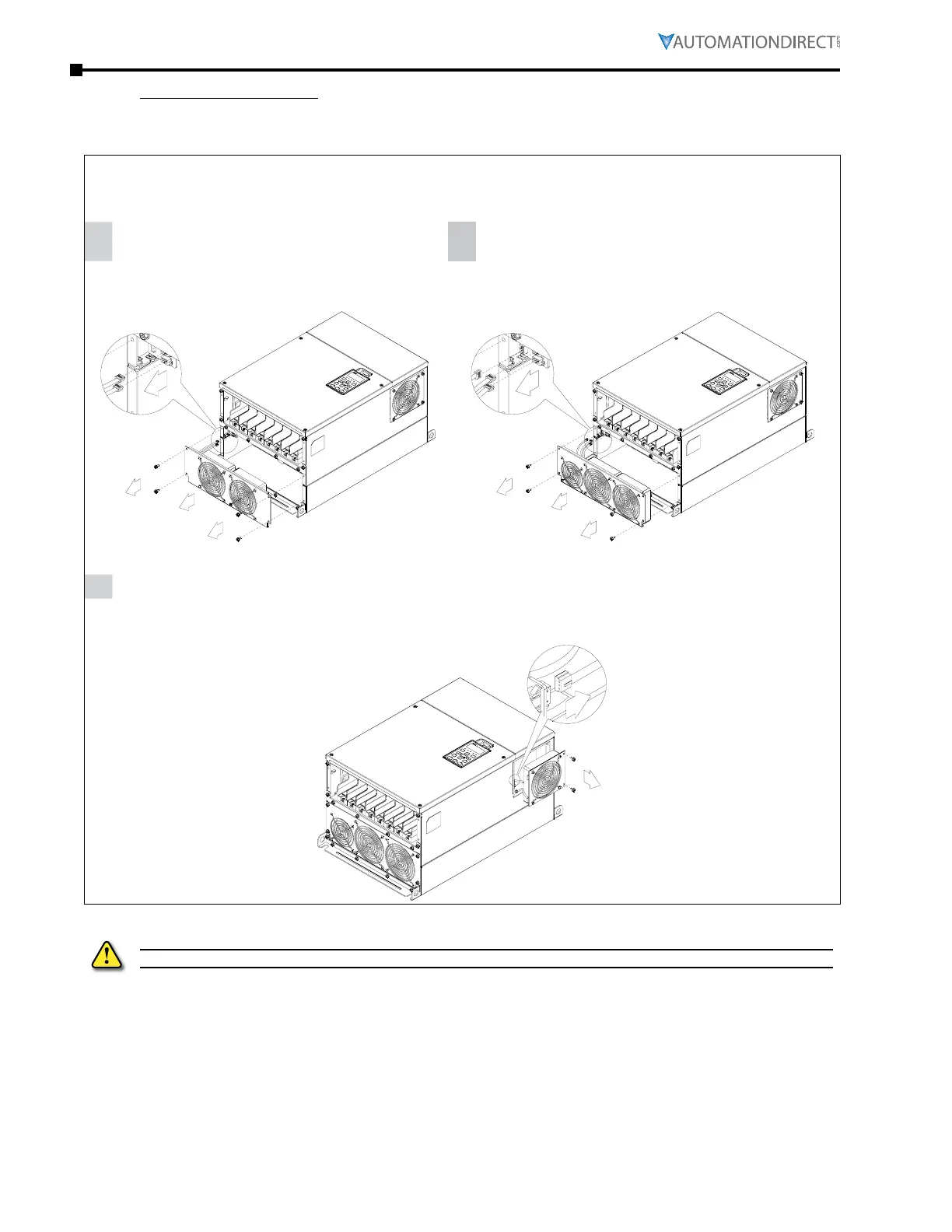

1
Loosen screw 1-4 (as shown in the figure
below), and disconnect the fan power then
remove the fan.
Screw torque: 24 - 26 kg·cm (20.8 - 22.6 lb·in)
2
Loosen screw 1 - 4 (as shown in the figure below),
and disconnect the fan power then remove the
fan.
Screw torque: 24 - 26 kg·cm (20.8 - 22.6 lb·in)
1
2
3
4
1
2
3
4
3
Loosen screw 1 and screw 2 (as shown in the figure below), and disconnect fan power before
removing the fan.
Screw torque: 24 - 26 kg·cm (20.8 - 22.6 lb·in)
1
2
Remove poWeR fRom dRIve pRIoR to INstAllAtIoN ANd/oR RemovAl of AccessoRIes.
