Appendix A: Accessories
Page A–53
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

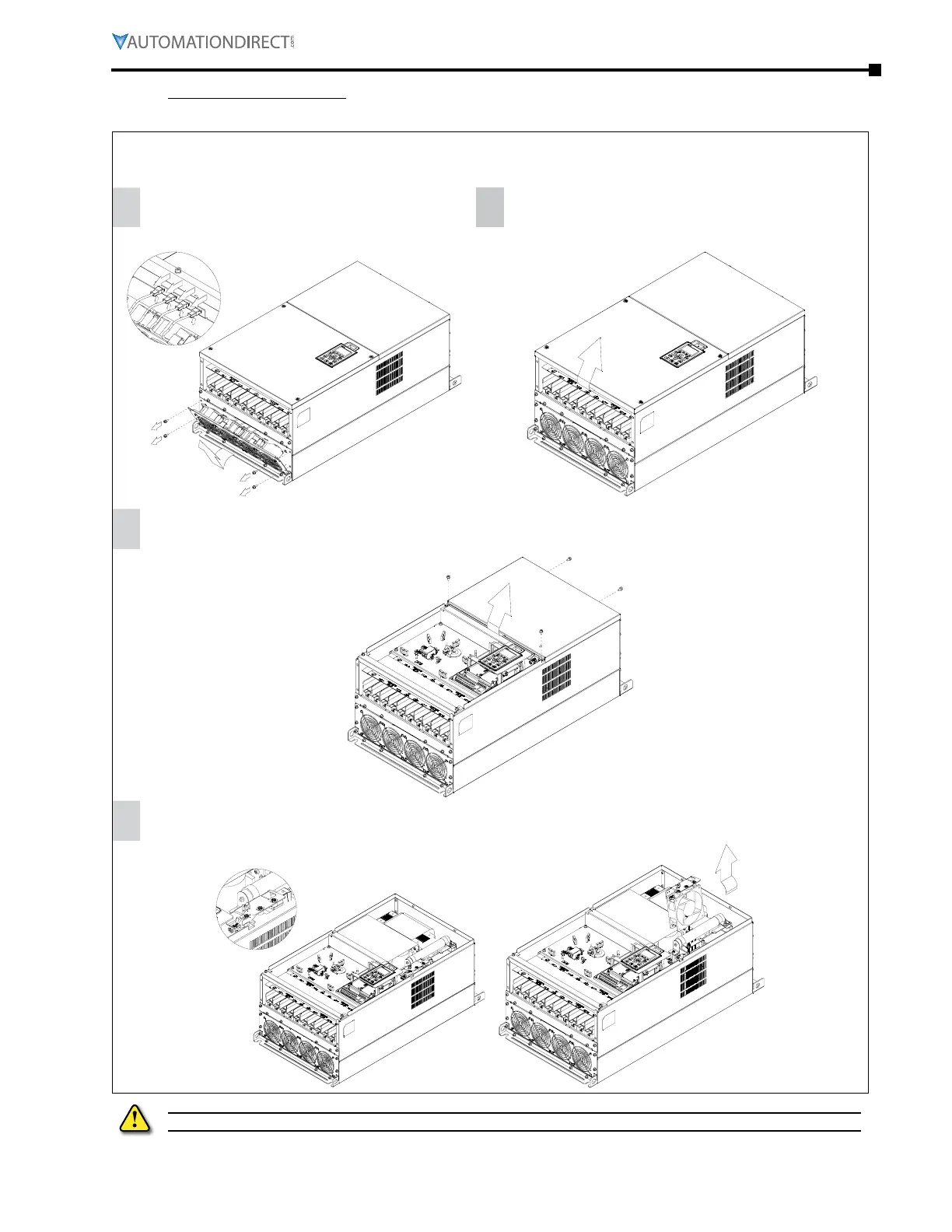

Fan Removal (continued)
frame f
Applicable models:
GS4-4175, GS4-4200
1
Loosen the screws, disconnect the fan power,
then remove the fan.
Screw torque: 24 - 26 kg·cm (20.8 - 22.6 Ib·in)
2
Loosen the screw and remove the cover.
Screw torque: 14 - 16 kg·cm (12.2 - 13.9 Ib·in)
1
4
3
2
1
3
2
4
3
Loosen the screw and remove the cover.
Screw torque: 24 - 26 kg·cm (20.8 - 22.6 lb·in)
5
6
7
8
4
Loosen the screws and disconnect the fan power, then remove the fan.
Screw torque: 14 - 16 kg·cm (12.2 - 13.9 Ib·in)
9
10
11
9
10
11
Remove poWeR fRom dRIve pRIoR to INstAllAtIoN ANd/oR RemovAl of AccessoRIes.
