Appendix D: Using GS4 AC Drives with AutomationDirect PLCs
Page D–5
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

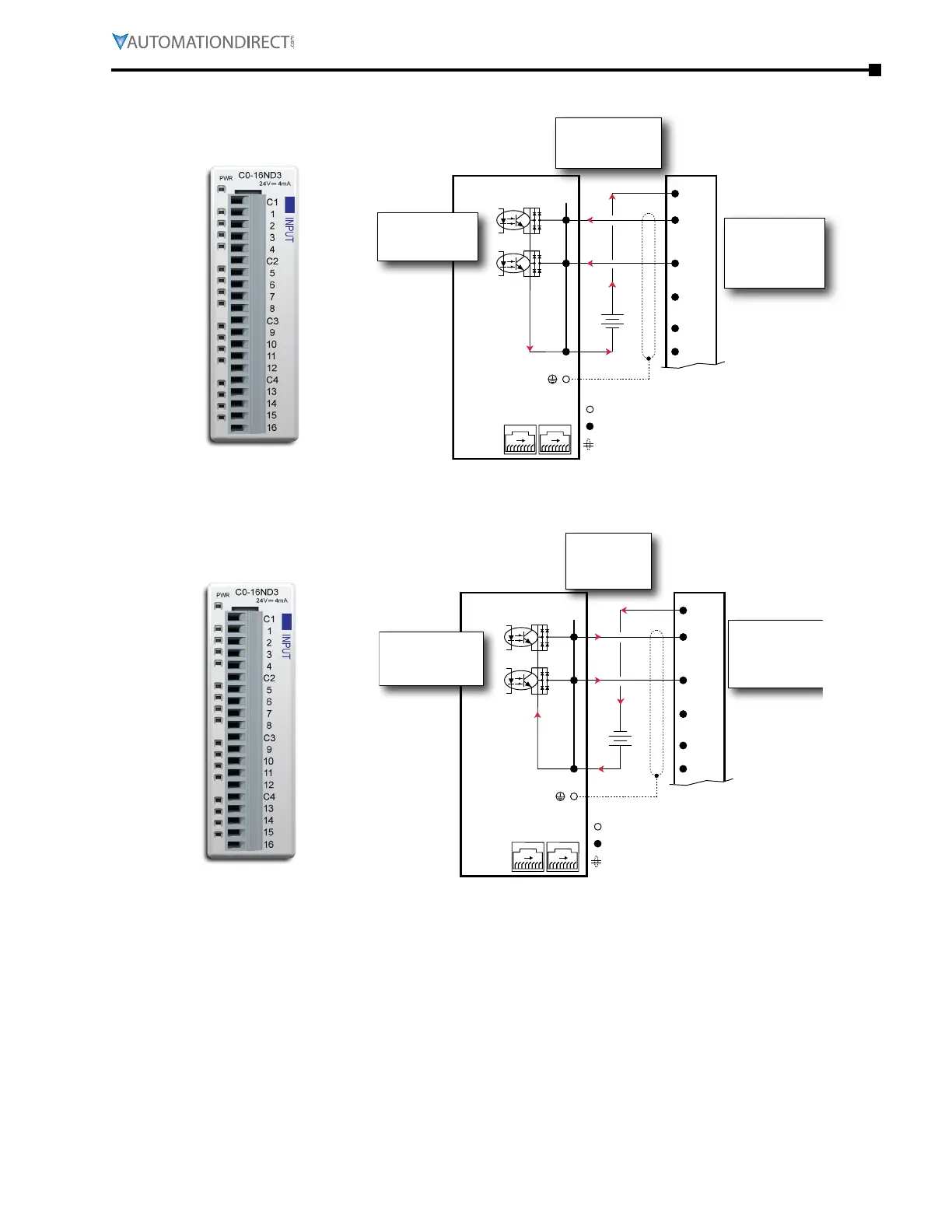

drive Wired WiTh dC sinking ouTpuTs (plC inpuT Card is sourCing)
CLICK Expansion Module
C0-16ND3
The PLC card will
have a common
point for the
power supply.
PLC card wired
with sourcing
inputs (this
card can be
wired sinking or
sourcing).
GS4-xxxx
DO1
DO2
DOC
Digital Output Com.
Control circuit terminal
Shielded leads
Main circuit (power) terminals
See Power
Wiring Diag.
C1
1
2
C2
C0-16ND3
DC Input
+
–
+24
VDC
18 18
4
3
The drive
outputs will sink
current in this
configuration.
drive Wired WiTh dC sourCing ouTpuTs (plC inpuT Card is sinking)
CLICK Expansion Module
C0-16ND3
GS4-xxxx
DO1
DO2
DOC
Digital Output Com.
Control circuit terminal
Shielded leads
Main circuit (power) terminals
See Power
Wiring Diag.
C1
1
2
C2
C0-16ND3
DC Input
+
–
+24
VDC
18 18
4
3
PLC card wired
with sinking
inputs (this
card can be
wired sinking or
sourcing).
The PLC card
will have a
common point
for the power
supply.
The drive outputs
will source
current in this
configuration.
