Automation Direct DURApulse GS4 User Manual

Page D–6
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Appendix D: Using GS4 AC Drives with AutomationDirect PLCs

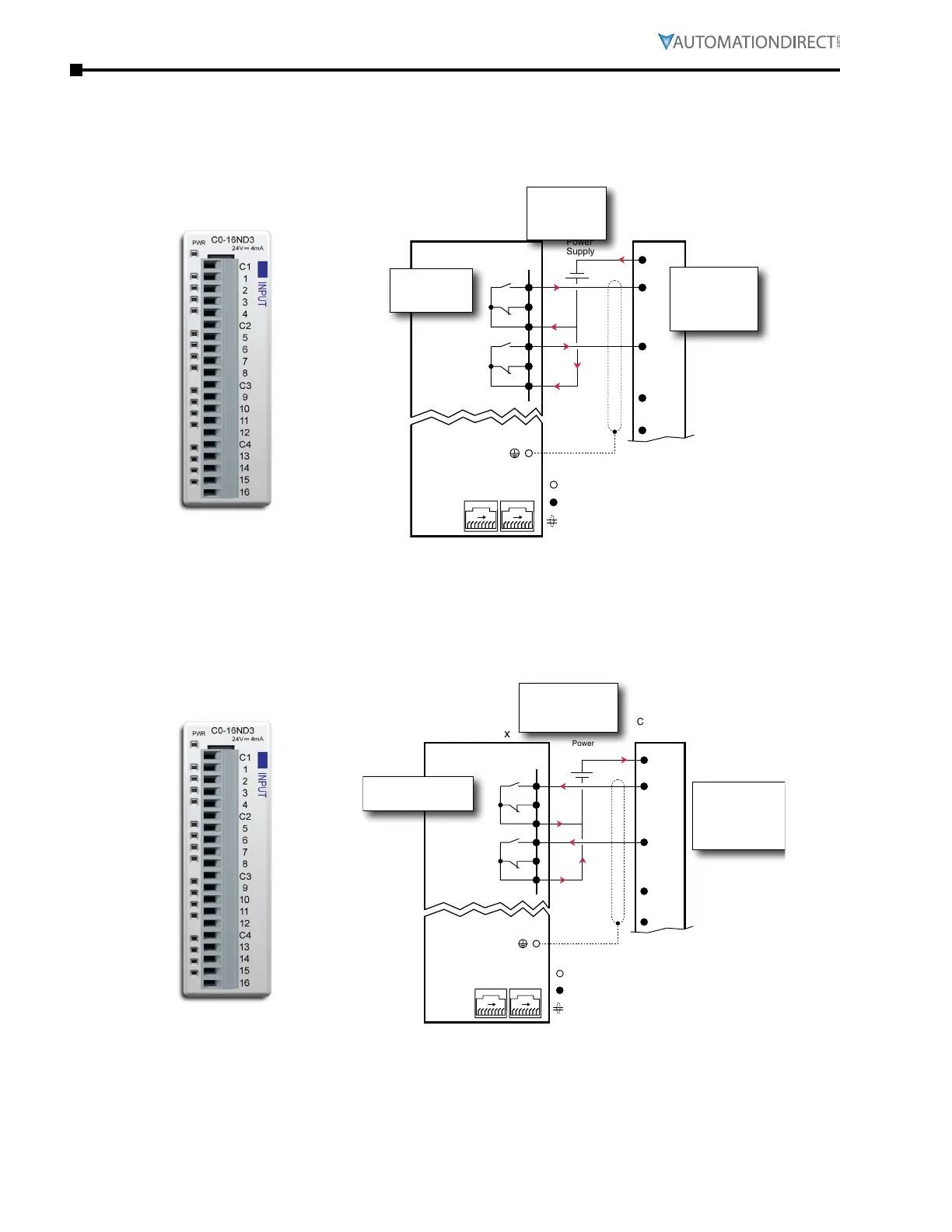

drive relay ouTpuTs Wired WiTh sinking plC modules
In this example, the inputs are wired to the Normally-Open contacts (R1O, R2O). You could also
wire to the Normally-Closed contacts (R1C, R2C), but you would not be able to tell if the drive lost
power or if the drive outputs are simply OFF.
CLICK Expansion Module
C0-16ND3
GS4-xxxx
Control circuit terminal
Shielded leads
Main circuit (power) terminals
See Power
Wiring Diag.
C1
1
2
C0-16ND3
DC Input
+
–
Power
Supply
18 18
4
3
R1O
R1C
R1
R2O
R2C
R2
PLC card wired
with sinking
inputs (this
card can be
wired sinking or
sourcing).
The PLC card
will have a
common point
for the power
supply.
The drive relay
outputs source
current in this
configuration
drive relay ouTpuTs Wired WiTh sourCing plC modules
In this example, the inputs are wired to the Normally-Open contacts (R1O, R2O). You could also
wire to the Normally-Closed contacts (R1C, R2C), but you would not be able to tell if the drive lost
power or if the drive outputs are simply OFF.
CLICK Expansion Module
C0-16ND3
GS4-xxxx
Control circuit terminal
Shielded leads
Main circuit (power) terminals
See Power
Wiring Diag.
C1
1
2
C0-16ND3
DC Input
+
–
Power
Supply
18 18
4
3
R1O
R1C
R1
R2O
R2C
R2
24V
The PLC card will
have a common
point for the
power supply.
PLC card wired
with sourcing
inputs (this
card can be
wired sinking or
sourcing).
The drive relay
outputs sink current
in this configuration
