7.12.13 Category:HDRTonemappingCurveControl
This category contains the Baumer HDR tone mapping curve control features.
With tone mapping, the HDR (High Dynamic Range) image is converted to an LDR (Low
Dynamic Range) image.
Notice
The internal processing is done on 12 bit, therefore the HDR tone mapping is always
applied to 12 bit LDR.
Three presets are available (selectable via HDRTonemappingCurvePresetSelector).
Additionally, you can also create your own transfer function for the tone mapping by set-
ting values of:
▪ HDRTonemappingCurveOffset
▪ HDRTonemappingCurveGradient
▪ HDRTonemappingCurveGridpoint
for each of the 16 indices of HDRTonemappingCurveGridpoint.

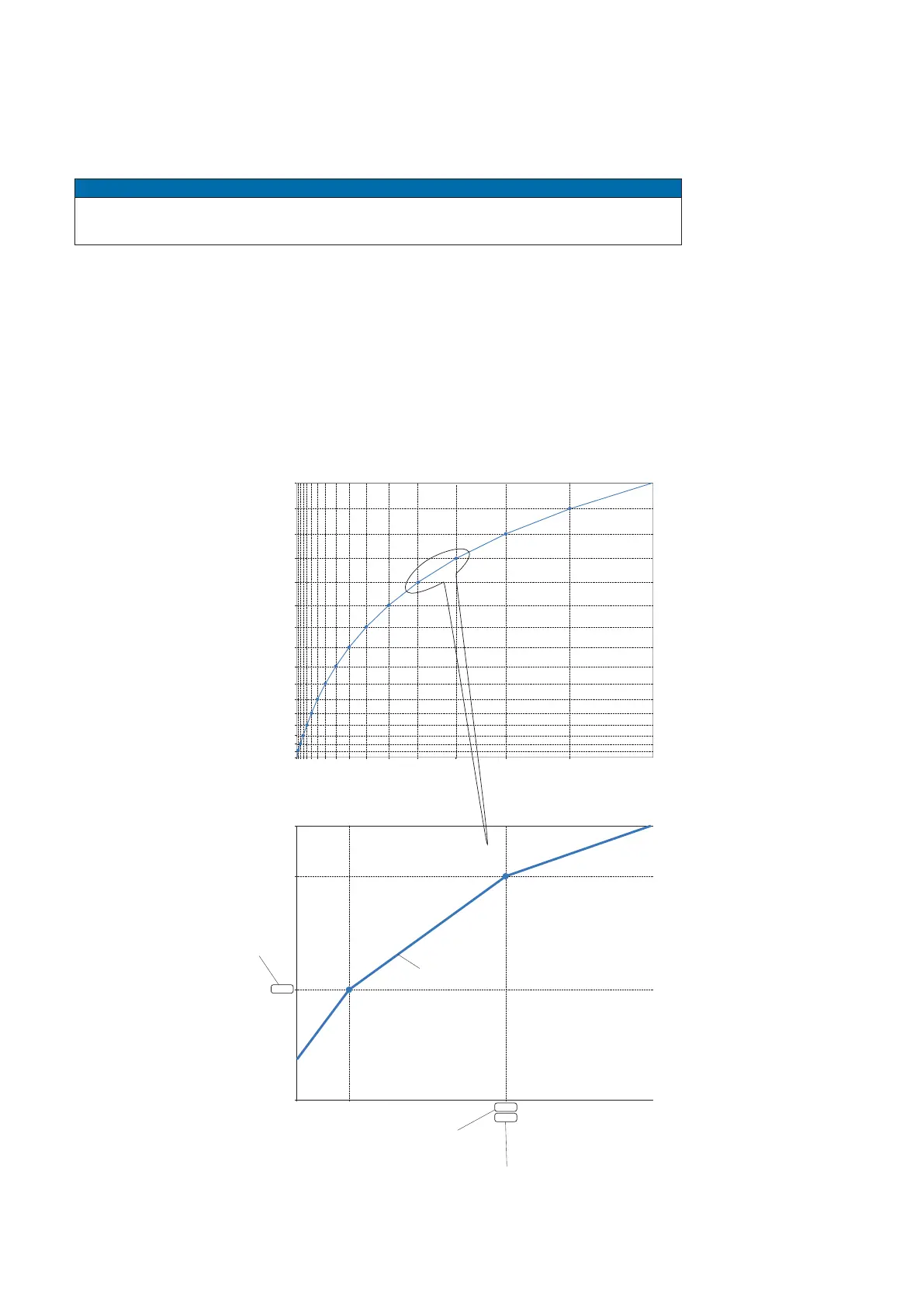

The following graphic shows an example, how each value inuence the characteristics of
the HDR tone mapping curve.
12
5574
7321
13
2962
2605
HDR (14 bit)
HDRTonemappingCurveGridpointIndex
HDRTonemappingCurveGradient
HDRTonemappingCurveGridpoint
HDRTonemappingCurveOffset
(Oset to zero)
7321 9592 1254531964230 5574
4096
03 6 78 9 10 11 12 13 14 15
3708
3330
2962
2605
2264
1939
1634
1351
1092
860
654
475
322
193
87
0
LDR (12 bit)
