Baumer VLXT - Modular Tube Systems (Ordered Separately); Tube Adapter M62

32
V2.6 | 8/30/2022 | 1120758

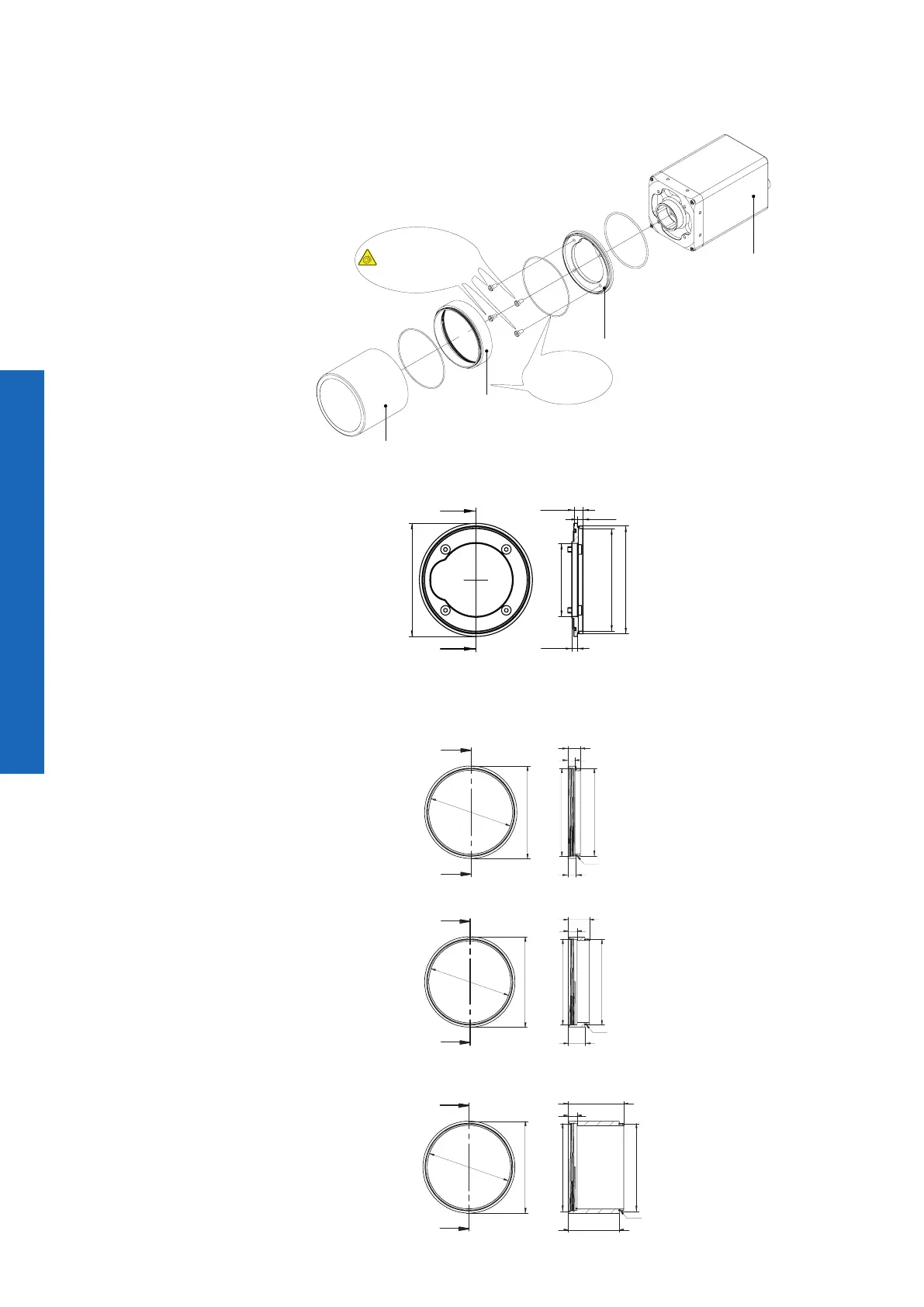

4.5 Modular tube systems (ordered separately)
4.5.1 Tube Adapter M62
Recommended grease
for easier installation of
the sealing rings:
ELKALUB GLS 867
Tube
Tube Adapter
Camera
Distance Ring
The peak torque while
tightening the
screws is 0.9 Nm.
Use a torque wrench!
Dimensions M62
65Ø
A-
A
3,25
41,95Ø
3,25
M62 x 0,75
5,25
59Ø
A
A
Art. No.: 11193125
Distance Rings M62
Art. No.: 11185376
Art. No.: 11185375
57,0xM26
5
9
57,0xM26
Ø56
O-Ring
A
A
A-A
12
6
15
57,0xM26
5
9
57,0xM 26
Ø56
O-Ring
A
A
A-A
6
5
9
Ø
Ø
M 62
Art. No.: 11198906
57,0xM26
5
9
57,0xM26
Ø56
O-Ring
A
A
A-A
36
6
39
Ø
