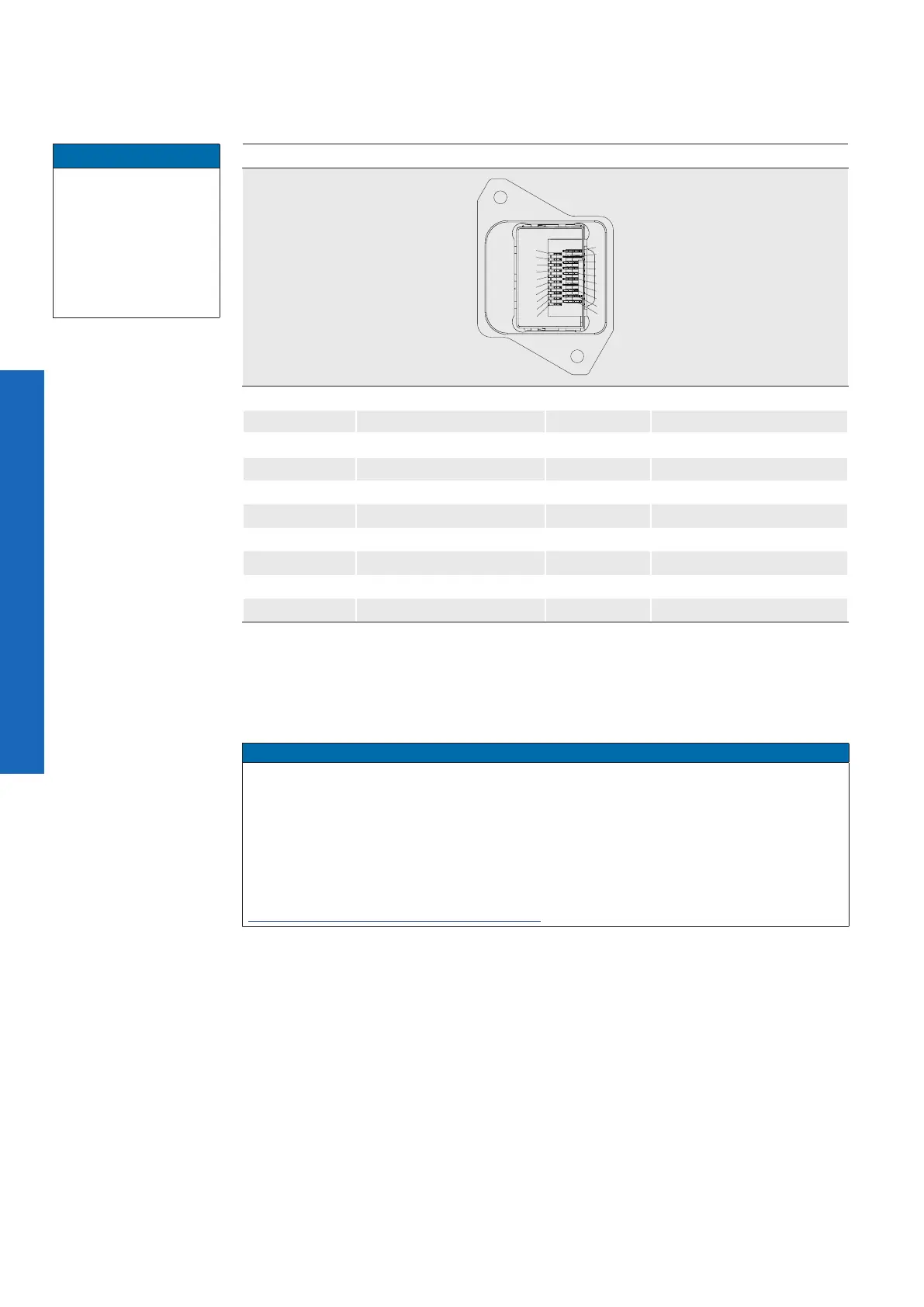

5.2 VLXT.FO (10GBASE-SR/LR)
5.2.1 Data Interface
SFP+ Socket
8
9
10
11
12
5
7
3
1
4
2
6
13
14
15
16
17
18
19
20
1
VEET
11
VEER
2 TX_FAULT 12 RD-
3 TX_DISABLE 13 RD+
4
SDA
14
VEER
5
SCL
15
VCCR
6 MOD_ABS 16 VCCT
7 RS0 17 VEET
8 RX_LOS 18 TD+
9 RS1 19 TD-
10 VEER 20 VEET
5.2.2 Transceiver/Cables
A variety of 10G SFP+ Series Fiber Optic Transceivers and cables available.
Notice
SFP+ modules for GigE (copper) are getting hot and heat the camera.
Only optical SFP+ modules may used which are in compliance with Class I device acc.
21 CFR 1040 (UL).
Please see the compliance list on the Baumer product selector:
https://www.baumer.com/c/36460/products
Notice
The unit is to be con-
nected only to inter-
nal Ethernet networks
without exiting a facili-
ty and being subjected
to Telecom Network
Voltages (TNVs).
