Baumer VLXT - UART0 Interface (≥ Release 3 Only)

41
V2.6 | 8/30/2022 | 1120758
Power Supply
Danger!
UseinwetenvironmentsrequiringIP67protection
Risk of electric shock. Electric shock can be fatal or cause serious injury.
Use is only permitted under consideration of pollution degree 2 and overvoltage cat-
egory 2.
The M12 connectors must comply with the IEC 61076-2-101 standard.
The dielectric strength and withstand voltage for the plug/socket combination must
be checked according to DIN EN 60664-1:2008-01 for 60 V.
Power V
CC
24 V ± 20 % (Power consumption: max.15.5 W)
Power (IO)
For UL conform installations: 24 V (± 20 %)
For not UL conform installations: 12 V (- 20 %) … 48 V (+ 10 %)

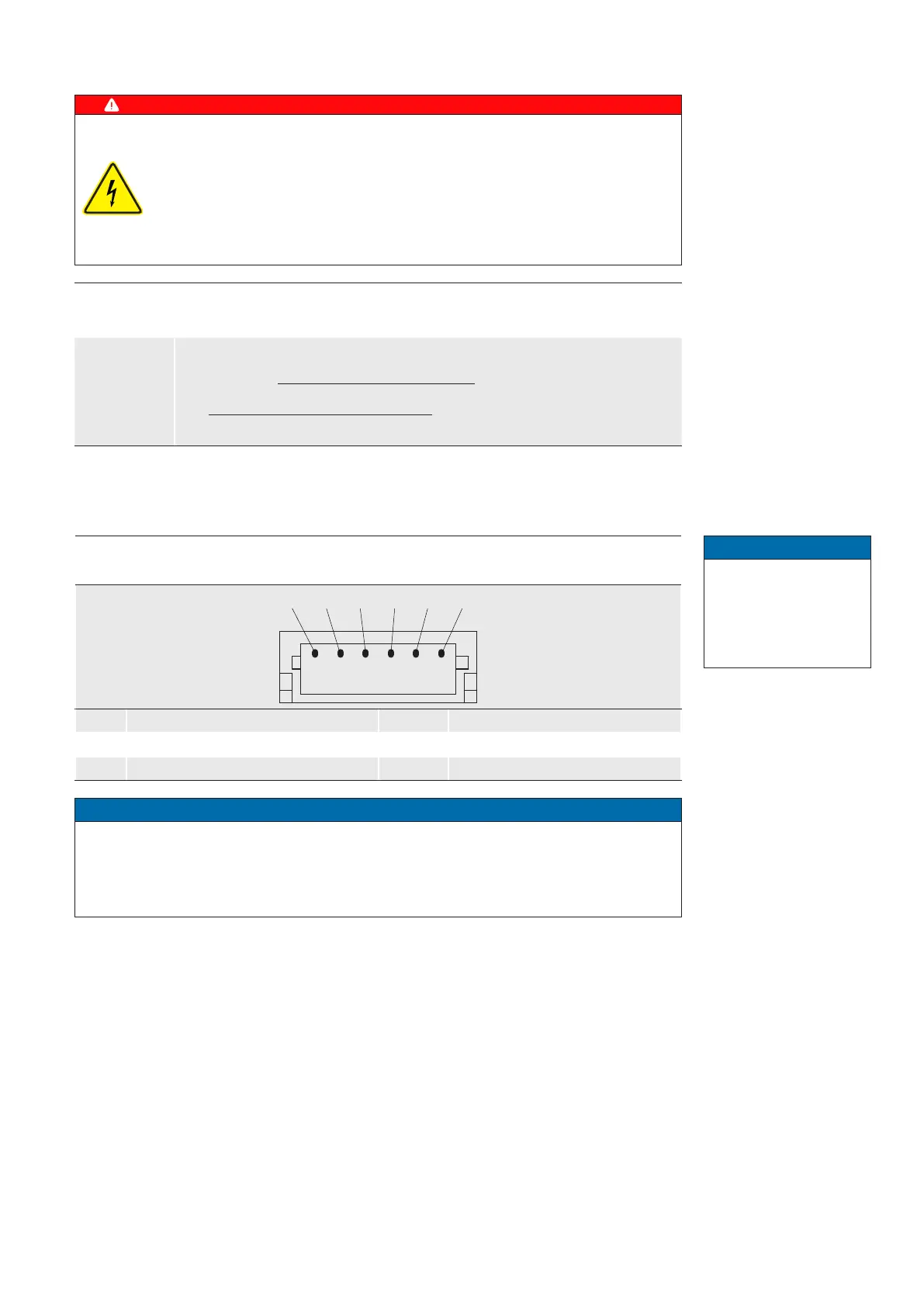

5.1.3 UART0Interface(≥Release3only)
UART0 Interface
(JST BM06B-SRSS-TB)
5 3
1
4
2
6
1 Power (UART0) 4 UART TxD
2 GND (UART0) 5 not connected
3 UART RxD 6 not connected
Notice
Serial interface voltage level for UART0 TxD and RxD: 0 V (logical 0) ... 3.3 V (5V toler-
ant) (logical 1).
This interface is controllable by UART0 value of boSerialSelector and is used to control
optical components.
Class 2 per NEC / Pro-
tection Class III
The device is intended
to be supplied from an
isolated Limited Energy
Source per UL61010-1,
3rd ed cl. 9.4 or Lim-
ited Power Source per
UL60950-1 or Class 2
per NEC.
Notice
Please observe the
instructions and notes
in the technical docu-
mentation of the re-
spective lens!
