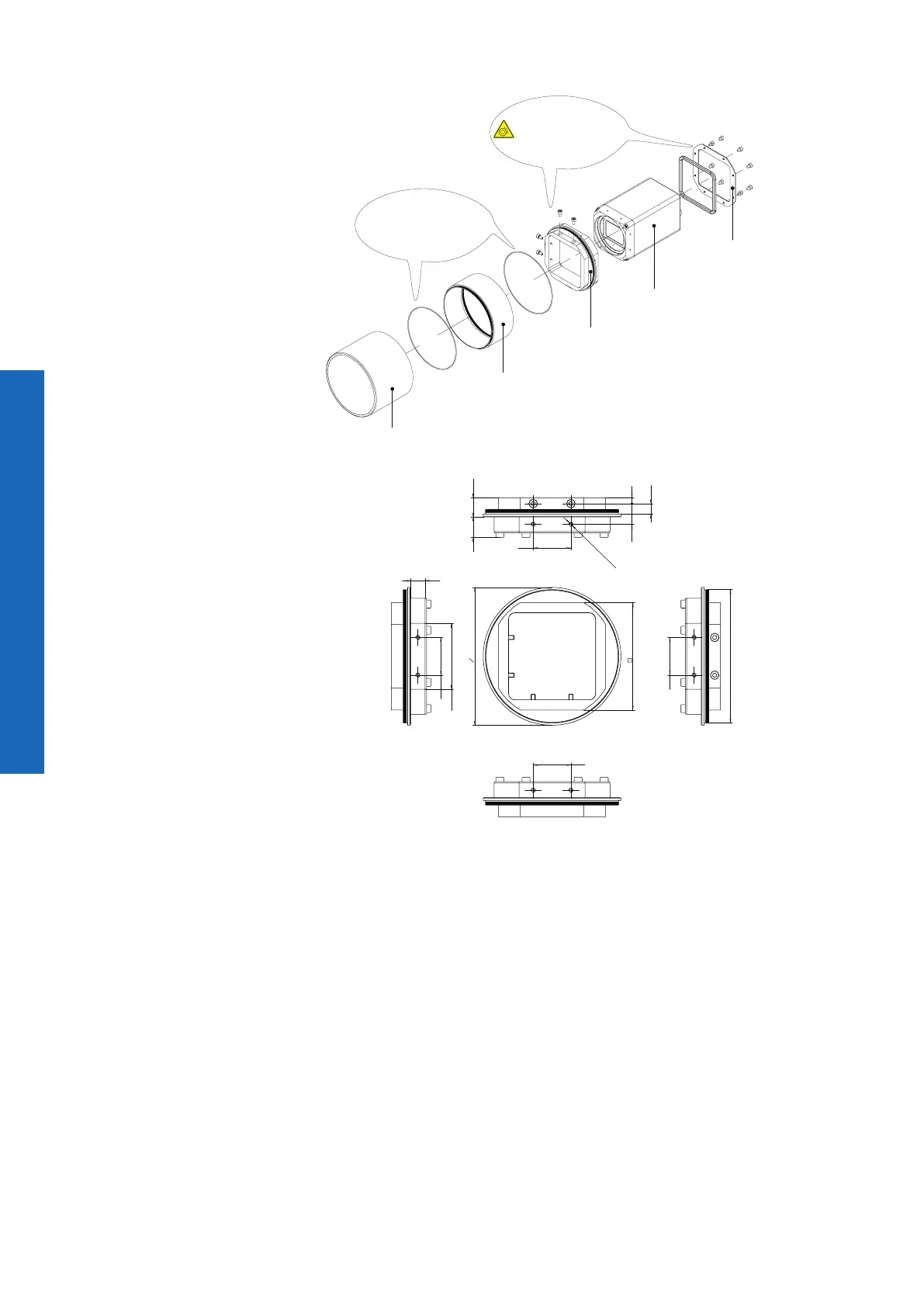

4.5.2 Tube Adapter M92
Recommended grease
for easier installation
of the sealing rings:
ELKALUB GLS 867
Tube
Tube Adapter
Camera
Distance Ring
Holding Plate
The peak torque while
tightening the
screws is 0.9 Nm.
Use a torque wrench!
Dimensions
95O
92Mx 0,75
26
26
26
26
14.3
8 x M3 x 5
13.314
4
74
10
45.4
7.25
