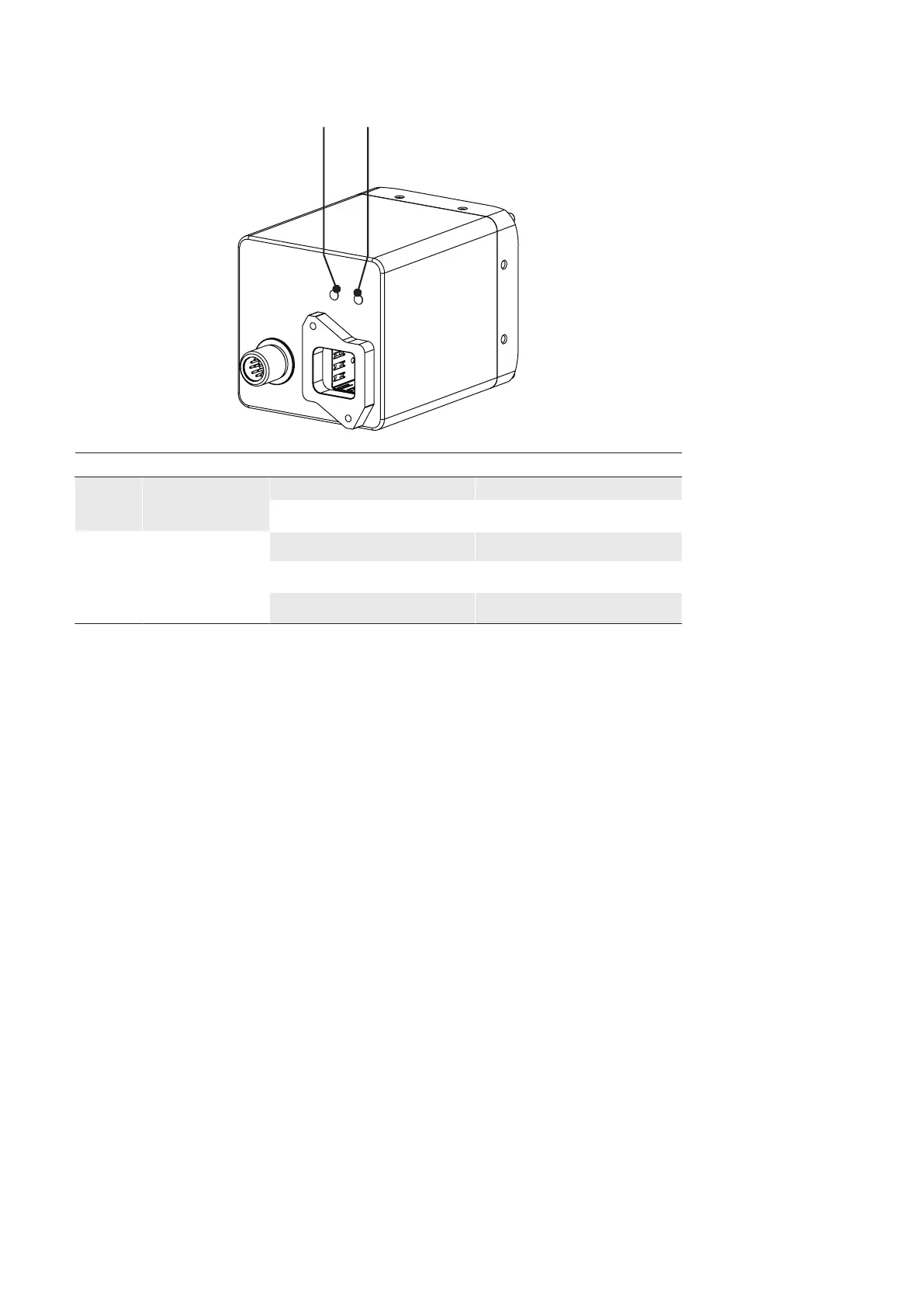

5.2.6 LED Signaling

Signal Meaning

1 GigE LED

green static link active

green ash receiving

2 Camera LED

yellow static error

yellow ash transmitting

orange static overheated
