ROI Readout

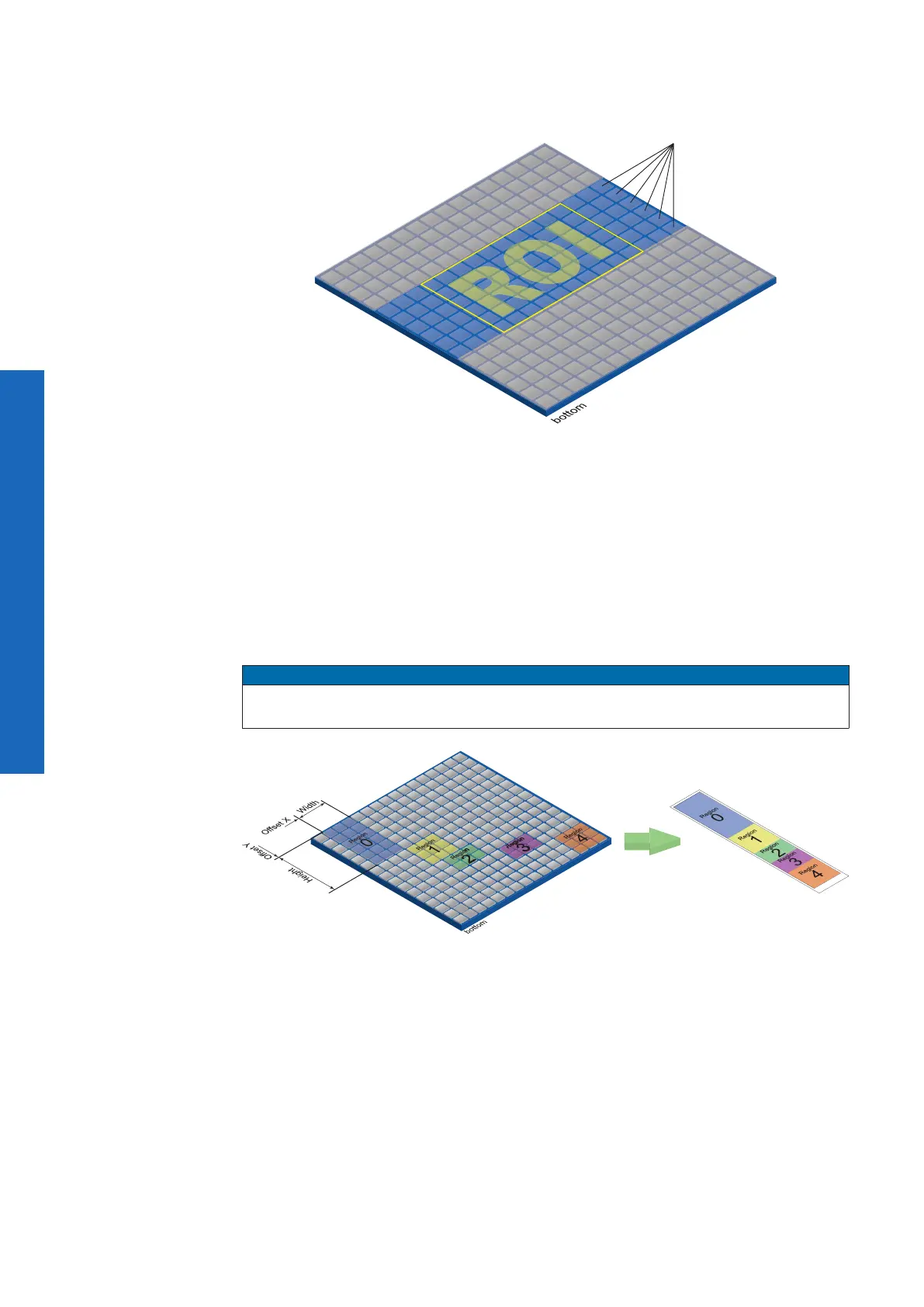

In the illustration below, the readout time would decrease to 40% of a full frame readout.
Readout lines
Multi Region of Interest (RegionMode / RegionSelector / OffsetX / OffsetY / Width /
Height)-GeneralInformation(≥Release3only)
With Multi-ROI it is possible to predene several Region of Interests (ROIs). It can be
specied up to 8 ROIs. Overlapped Multi-ROIs and Multi-ROIs that are next to each other
are not possible. Multi-ROIs which are among each other are possible. All Multi-ROIs
must have the same width, but the height may vary.
The camera only reads out sensor parts that are within one of the active Multi-ROI´s and
transferred all Multi-ROIs in one frame.
Notice
It is not possible to use AutoFeature-ROI and Multi-ROI together. Multi-ROI cannot be
used simultaneously with Binning, Seqencer, Shading and PixelFormats RGB / BGR.
Width
(Region 0)
Width
(Region 1)
=
Width
(Region 2)
=
Width
(Region 3)
=
Width
(Region 4)
=
(Example with 5 ROI's. Maximum 8 ROI's are possible.)
