V2.6 | 8/30/2022 | 1120758

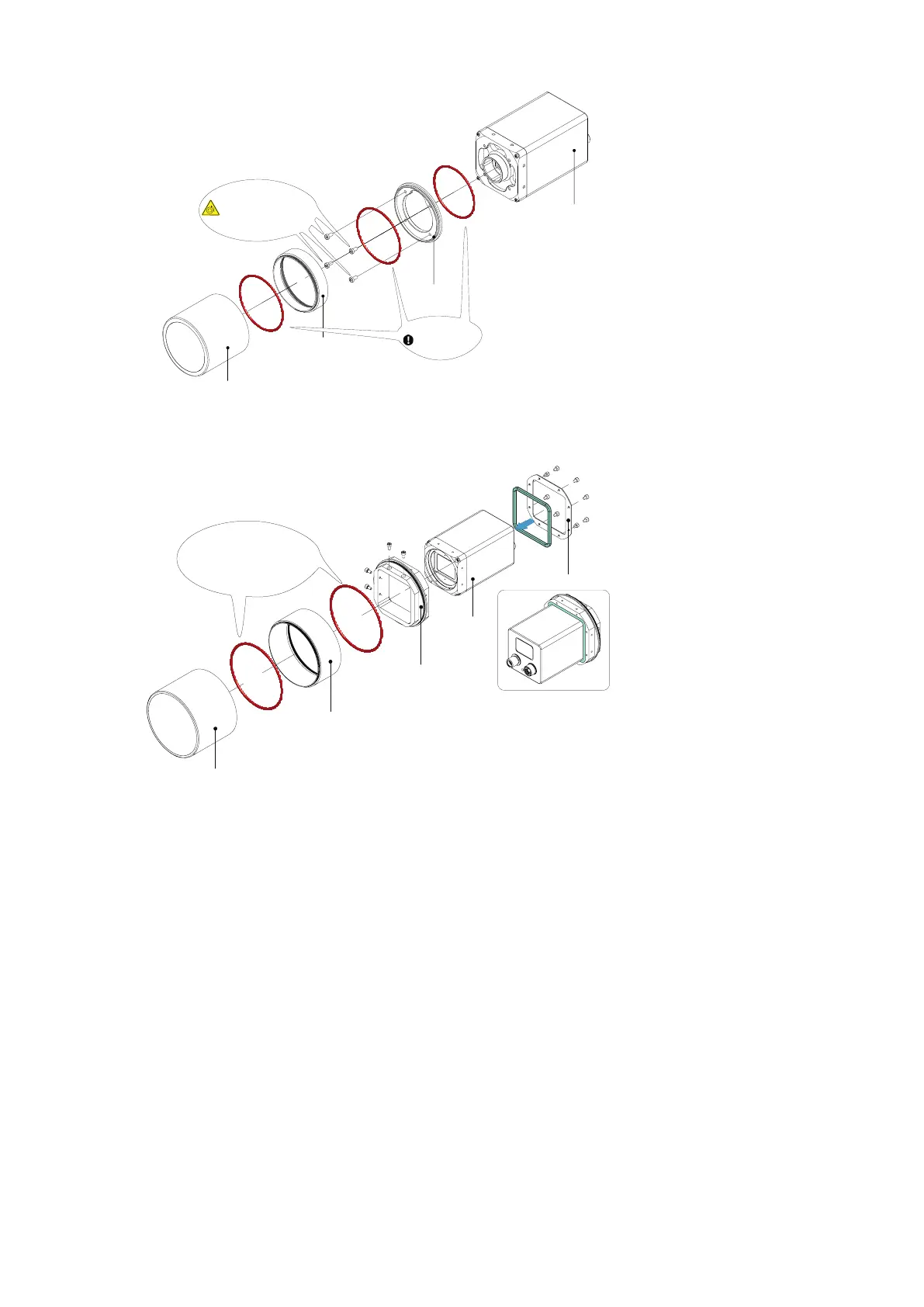

Sealing rings (M62 Adapter)

Do not forget the seals!

Recommended grease

for easier installation:

ELKALUB GLS 867

Tube

Tube Adapter

Camera

Distance Ring

The peak torque while

tightening the

screws is 0.9 Nm.

Use a torque wrench!

Sealing rings (M92 Adapter)

Recommended grease

for easier installation

of the sealing rings:

ELKALUB GLS 867

Tube

Tube Adapter

Camera

Distance Ring

Holding Plate
