Brother MFC-9330CDW Service Manual

3-38
Confidential

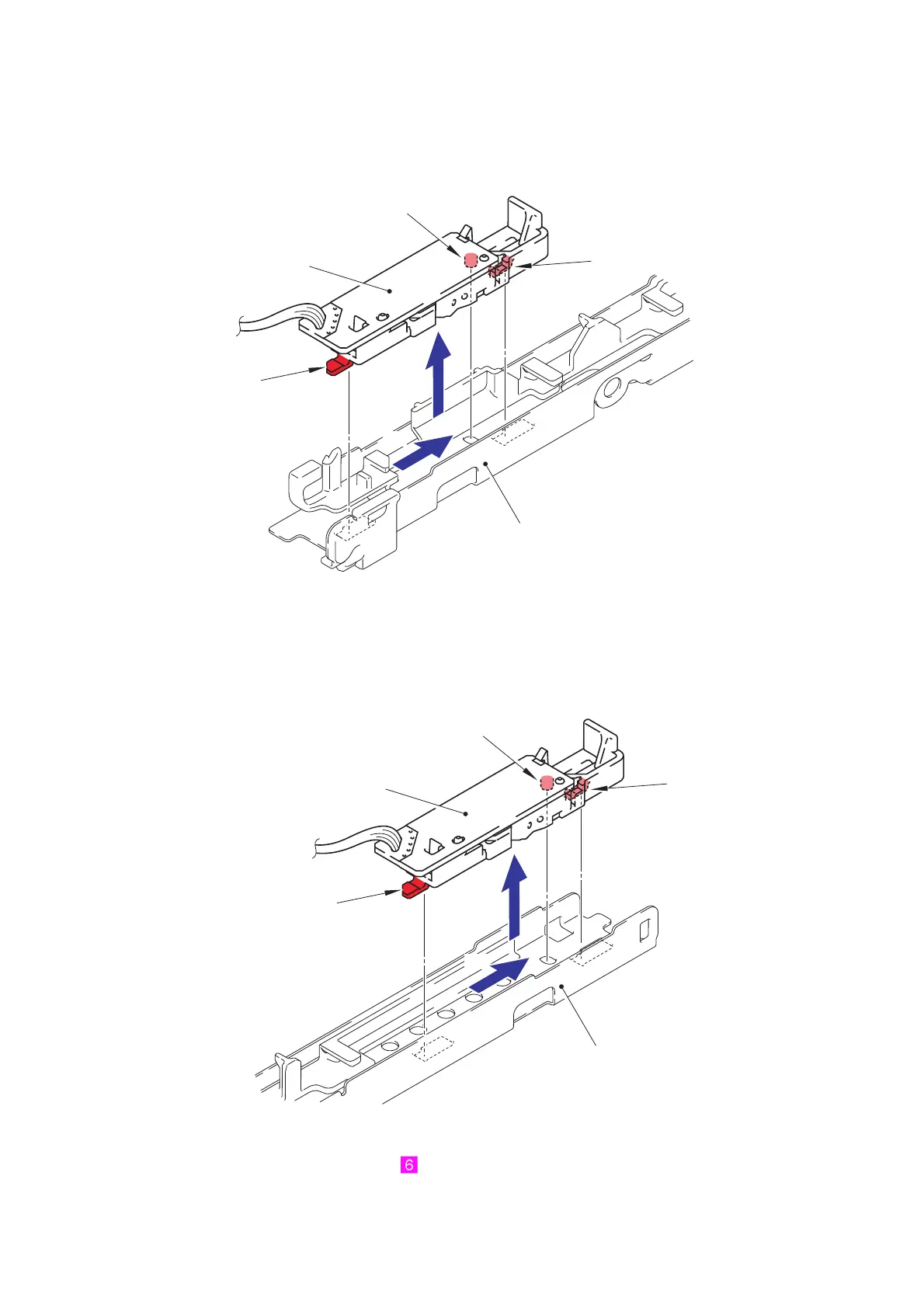

(5) Disconnect the wiring of the Registration mark L PCB harness.
(6) As the Boss being removed, slide the Registration mark L PCB ASSY in the direction of
the arrow 6a to remove it from the Registration sensor ASSY.
Fig. 3-18
(7) Disconnect the wiring of the Registration mark R PCB harness.
(8) As the Boss being removed, slide the Registration mark R PCB ASSY in the direction of
the arrow 8a to remove it from the Registration sensor ASSY.
Fig. 3-19
Harness routing: Refer to " Registration Mark L PCB ASSY,
Registration Mark R PCB ASSY"
Hook
Hook
Registration sensor ASSY
6a
6b
Boss
Hook
Hook
Registration mark L PCB ASSY
6b
Registration sensor ASSY
Hook
Hook
Boss
Registration mark R PCB ASSY
8a
8b

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
