Brother MFC-9330CDW Service Manual

3-66
Confidential

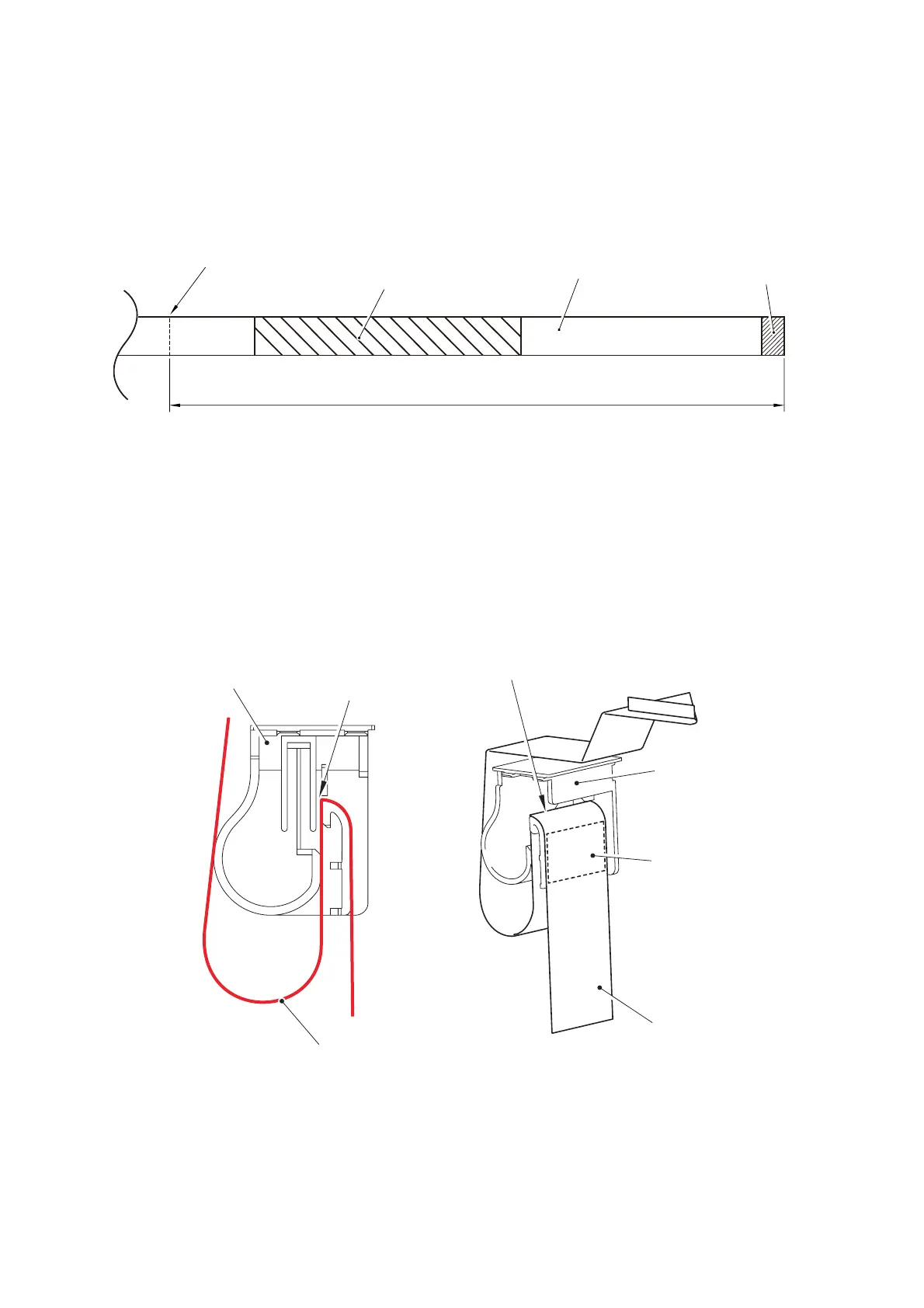

(5) Fold the Second side CIS flat cable at the position 208 mm away from the Second side
CIS unit side.
Fig. 3-70
(6) Align the Second side CIS flat cable to the angle of the Rib of the Flat cable holder ASSY
and pass it through the Flat cable holder ASSY as shown in the figure below, and then
affix it to the double-sided adhesive tape affixed to the Flat cable holder ASSY.
Fig. 3-71
208±2 mm
Fold up FFC along with the dotted line
Supporting tape
Supporting plate
Second side CIS flat cable
Pass the harness through here.
Second side CIS flat cable
Affix it to the double-sided
Rib (Align the folded area to this part.)
Second side
Flat cable holder ASSY
Flat cable holder ASSY
CIS flat cable
adhesive tape
<CIS side>

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
