Brother MFC-9330CDW Service Manual

3-67
Confidential

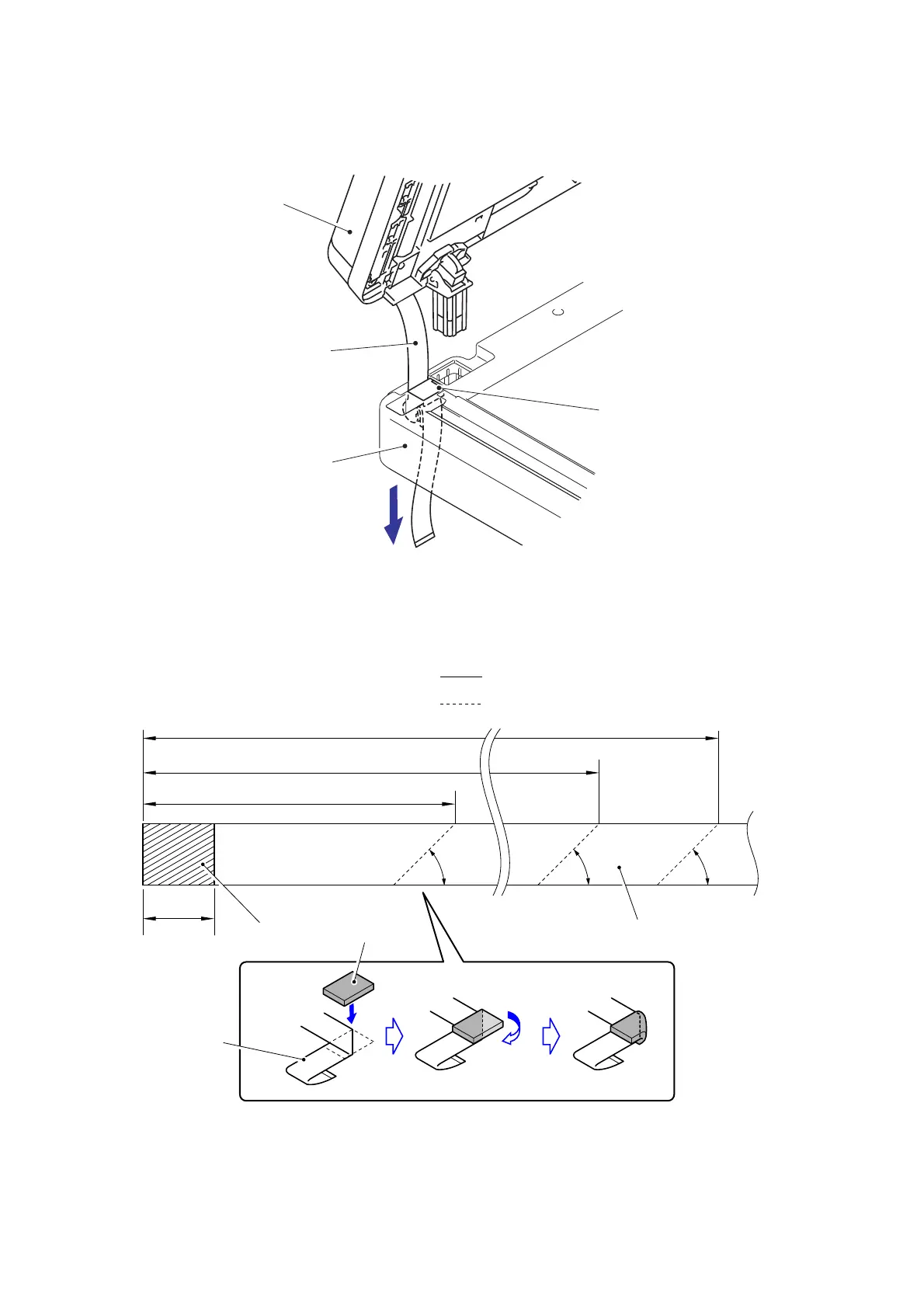

(7) Pass the Second side CIS flat cable through the Document scanner unit.
Fig. 3-72
(8) Fold the Second side CIS flat cable at the Main PCB ASSY side.
Fig. 3-73
(9) Mount the Second side CIS flat cable at the Main PCB ASSY side to the Main PCB ASSY.
ADF unit
Flat cable holder ASSY
Document scanner unit
Second side CIS flat cable
Second side
Fold up FFC along with the dotted line
Fold down FFC along with the solid line
175±2 mm
<Main PCB ASSY side>
45°
200±2 mm
45° 45°
(15±1.5 mm)
Supporting plate
65±2 mm
CIS flat cable
Flat cable
sponge 2
Second side CIS flat cable

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
