Brother MFC-9330CDW Service Manual

3-114
Confidential

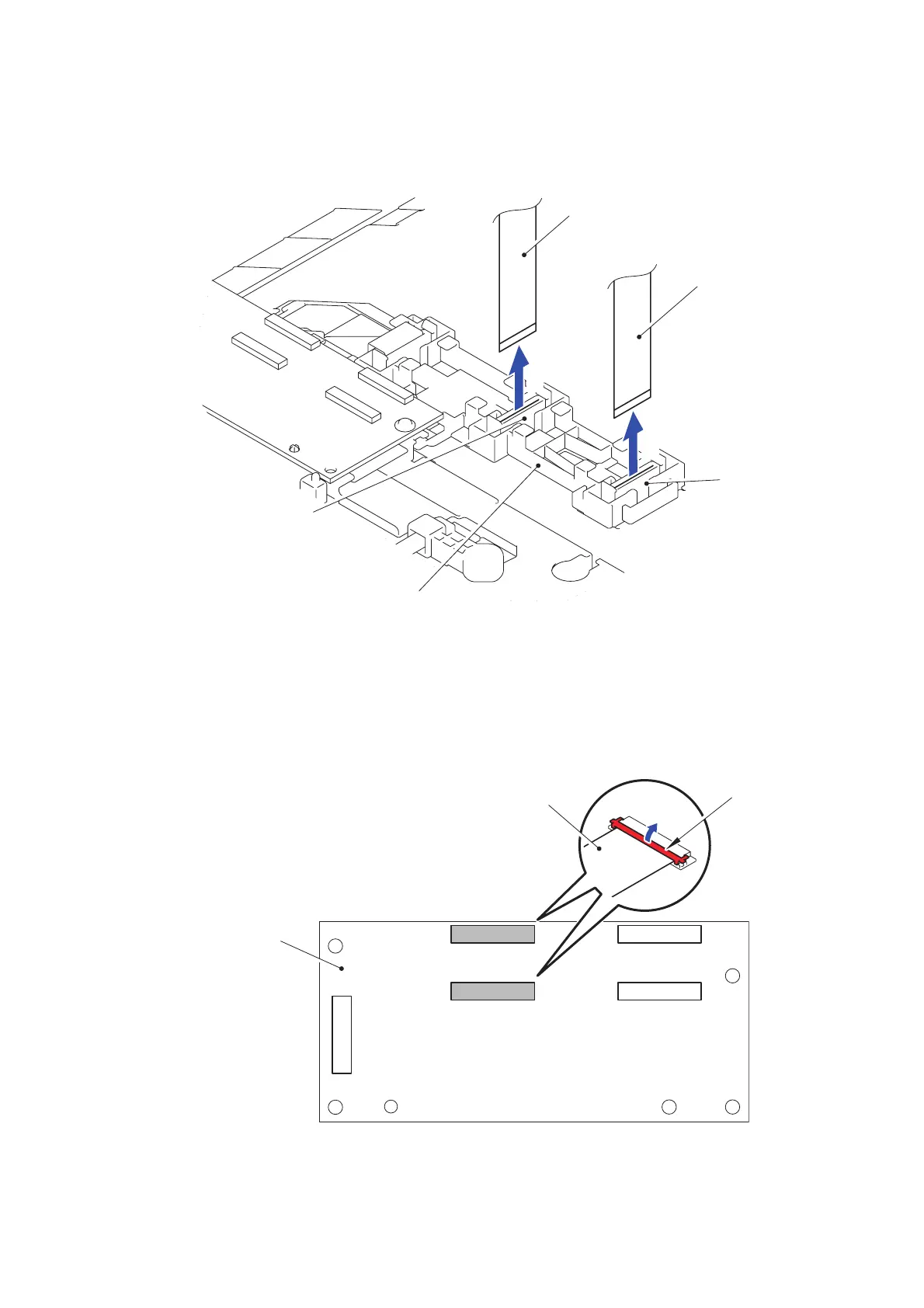

(3) Pull out the LED flat cable (Y) from the Flat core of the LED flat cable holder.
(4) Pull out the LED flat cable (M) from the Flat core of the LED flat cable holder.
Fig. 3-158
(5) Release the Lock of the LED flat cable connector (CN3). Disconnect the LED flat cable
(C) from the LED control PCB ASSY.
Release the Lock of the LED flat cable connector (CN5). Disconnect the LED flat cable
(K) from the LED control PCB ASSY.
Fig. 3-159
LED flat cable (Y)
LED flat cable (M)
Flat core
Flat core
LED flat cable holder
3
4
CN5 (K)
CN3 (C)
CN1
CN4 (Y)
CN2 (M)
Lock
LED flat cable
LED control PCB ASSY

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
