Brother MFC-9330CDW Service Manual

3-115
Confidential

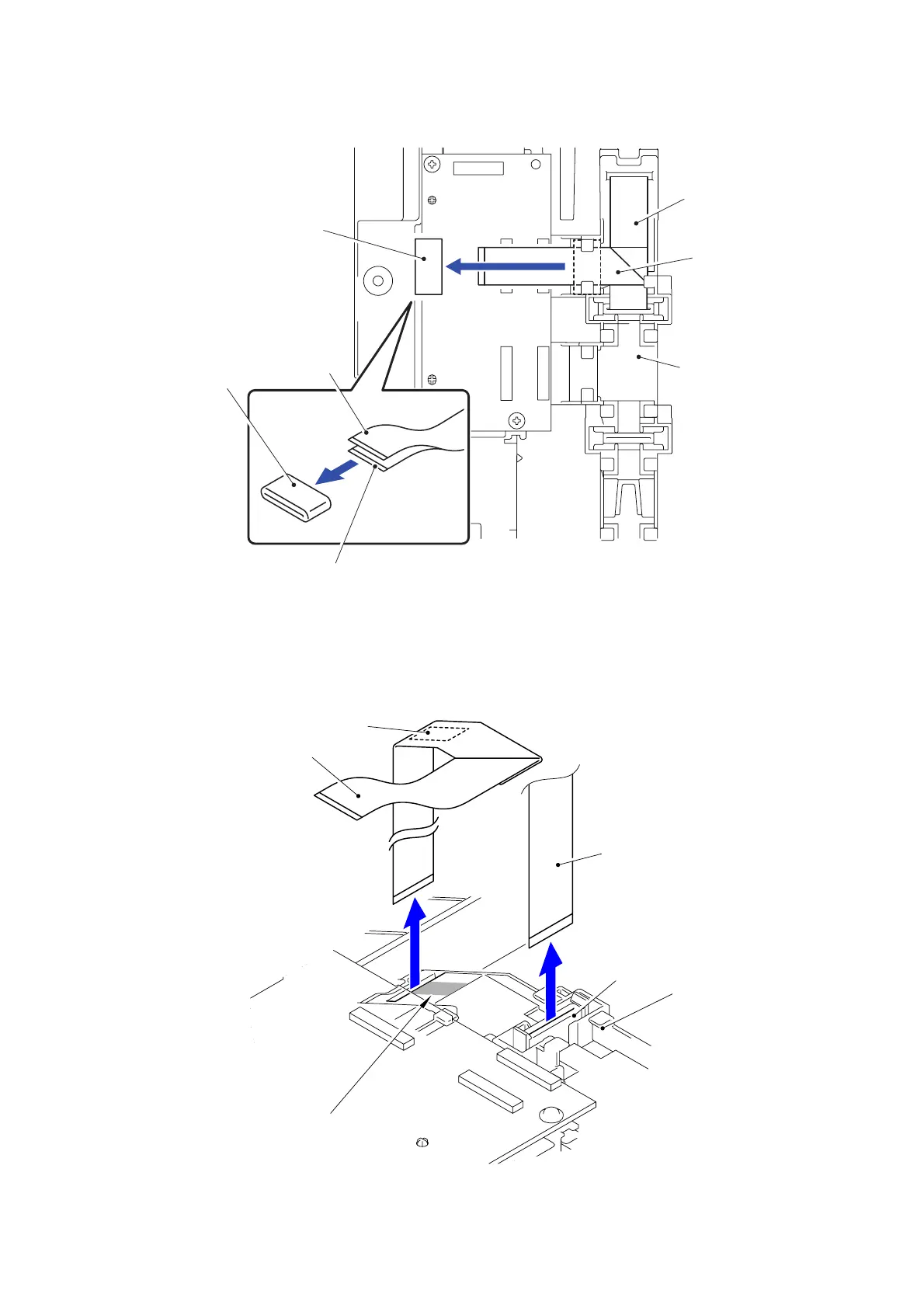

(6) Remove the Flat core from the two LED flat cables (C and K) of the LED flat cable holder.
Fig. 3-160
(7) Pull out the LED flat cable (C) from the Flat core.
(8) Pull out the LED flat cable (K) from the LED flat cable holder by removing the
Double-sided adhesive tape.
Fig. 3-161
Flat core
LED flat cable (K)
LED flat cable holder
LED flat cable (C)
LED flat cable (K)
Flat core
LED flat cable (C)
LED flat cable (K)
LED flat cable (C)
Double-sided adhesive tape
8
7
LED flat cable holder
Location where double-sided
adhesive tape is attached
Flat core
