Brother MFC-9330CDW Service Manual

3-124
Confidential

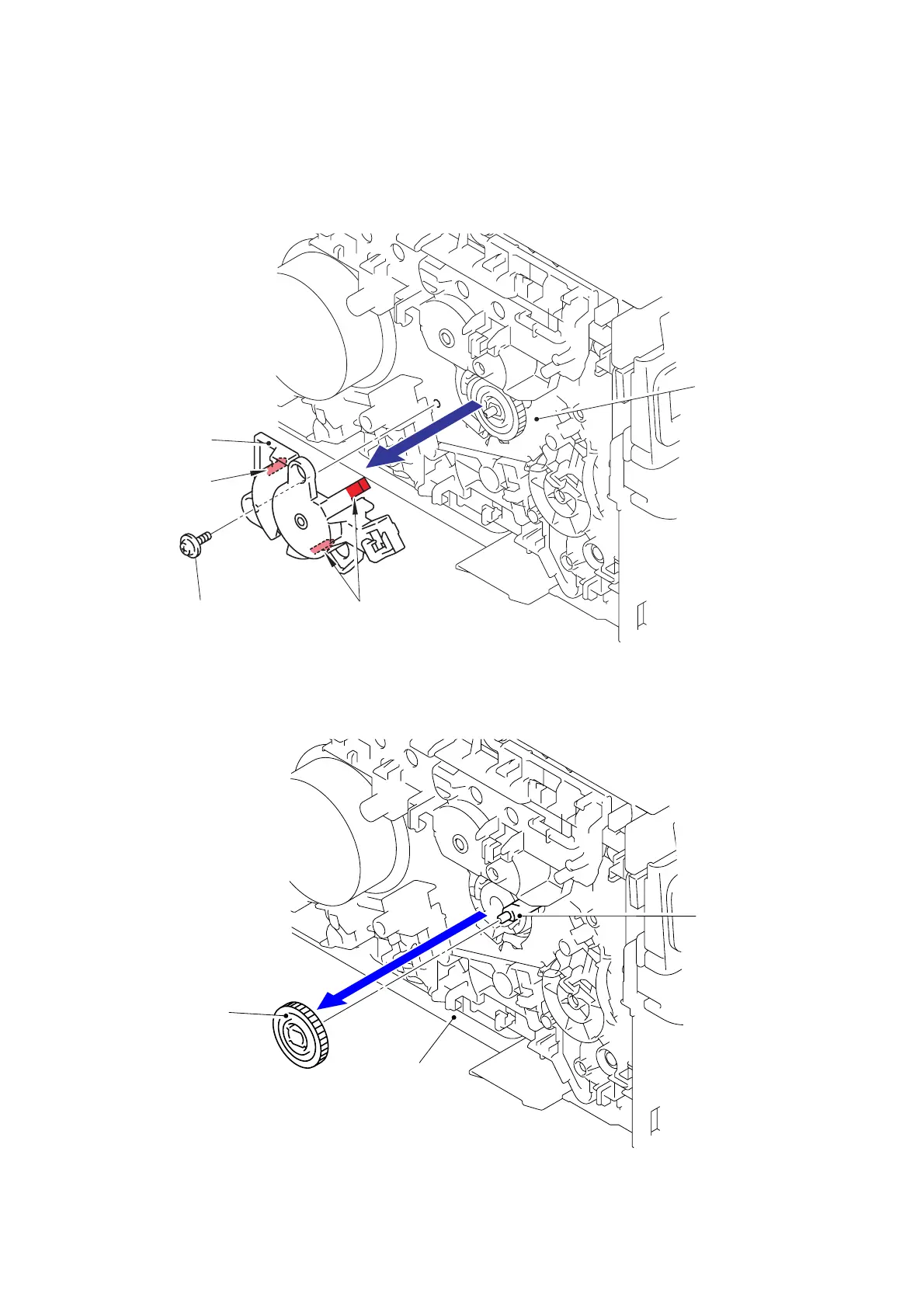

8.52 Develop Release Clutch
(1) Disconnect the wiring of the Registration clutch harness.
(2) Remove the Taptite cup S M3x8 SR screw. Release the three Hooks to remove the
Develop clutch gear cover from the Side frame L ASSY.
Fig. 3-174
(3) Remove the Develop release drive gear Z33 from the Side frame L ASSY.
Fig. 3-175
Taptite cup S M3x8 SR
Hook
Hook
Side frame L ASSY
Develop clutch
<Left side>
gear cover
drive gear Z33
<Left side>
Side frame L ASSY
Develop release
Develop release
gear Z34

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
