Brother MFC-9330CDW Service Manual

3-131
Confidential

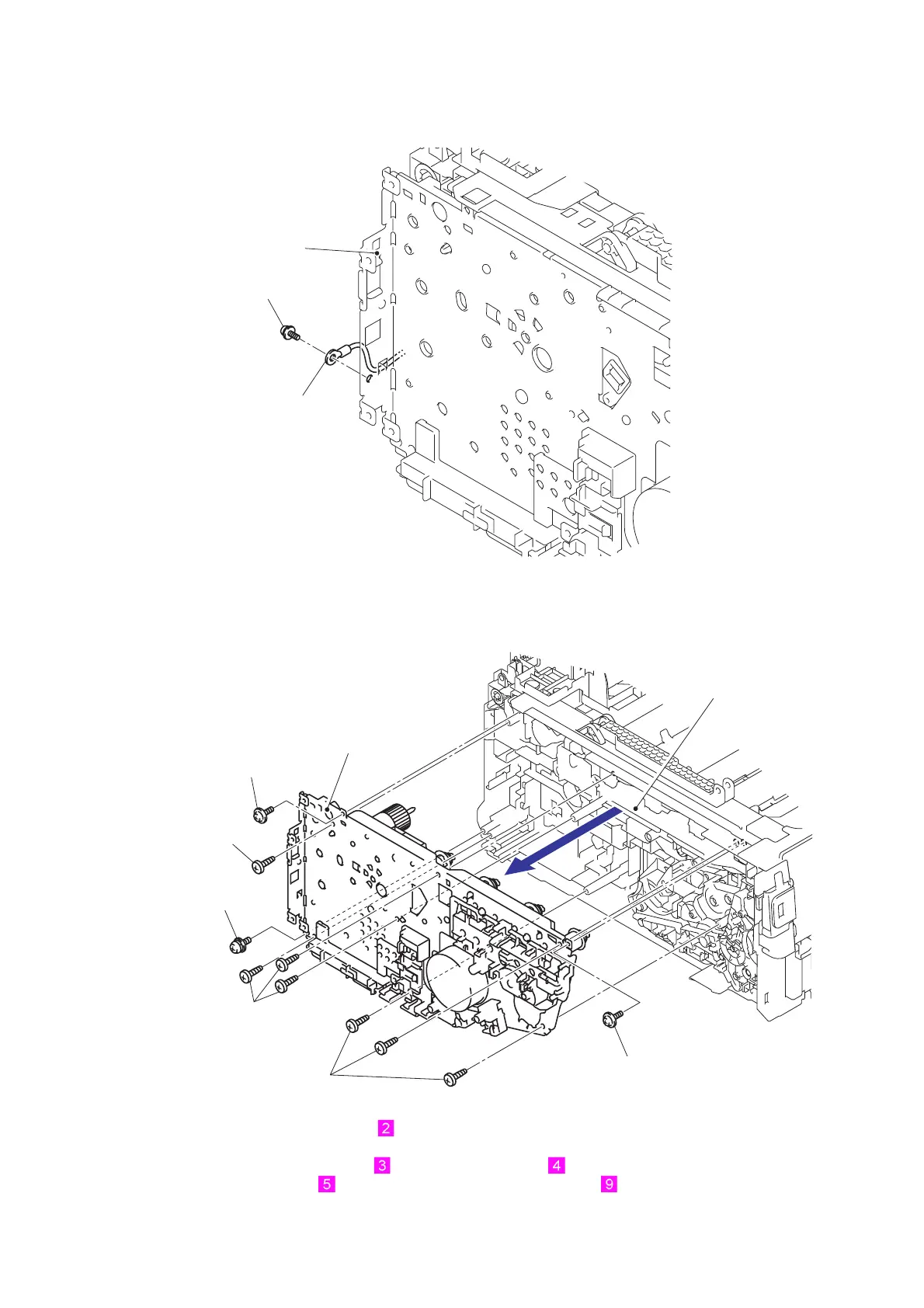

(7) Remove the Screw pan (S/P washer) M3.5x6 screw to remove the LVPS FG harness
from the Process drive unit.
Fig. 3-184
(8) Remove the two Taptite cup S M3x8 SR screws, seven Taptite bind B M4x12 screws, and
the one Taptite pan (washer) B M4x12 DA screw. Remove the Process drive unit from the
Side frame L ASSY.
Fig. 3-185
Harness routing: Refer to " External Temperature/Humidity Sensor PCB ASSY, Develop
Release Clutch, Registration Clutch, Paper Feed Clutch, USB Host PCB
ASSY", " Process Drive Unit", " Paper Feed Unit",
"
Back Cover Sensor Harness ASSY ", " Eject Sensor PCB ASSY "
Process drive unit
<Left side>
Screw pan (S/P washer) M3.5x6
LVPS FG harness
Process drive unit
Side frame L ASSY
Taptite cup S M3x8 SR
Taptite cup S M3x8 SR
Taptite pan
(washer) B M4x12 DA
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
<Left side>

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
