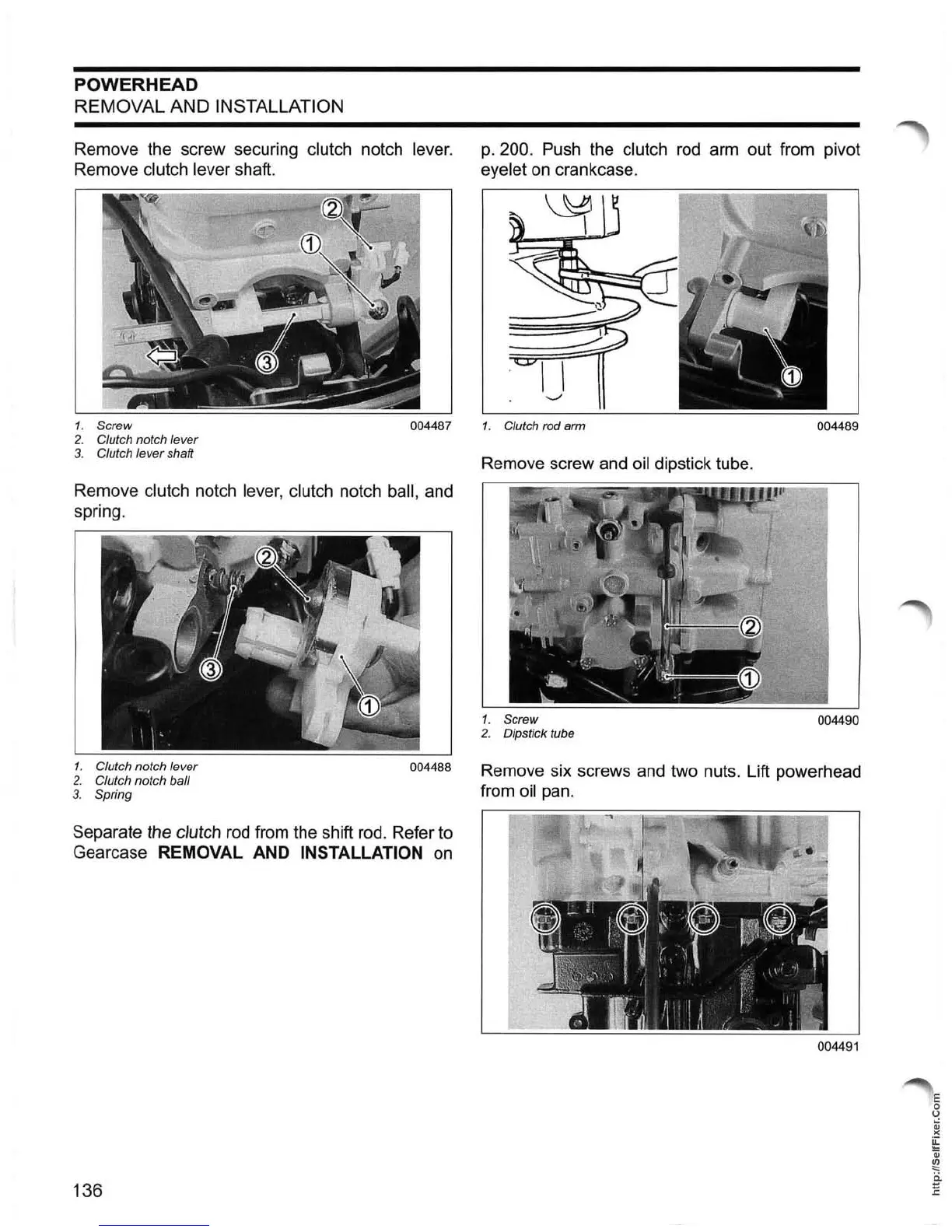

POWERHEAD
REMOVAL AND INSTALLATION
Remove the screw securing clutch notch lever.
Remove clutch lever shaft.
1. Screw
004487
2. Clutch notch lever
3. Clutch lever shaft
Remove clutch notch lever, clutch notch ball, and
spring.
1. Clutch notch lever
004488
2. Clutch notch ball
3.
Spring
Separate the clutch rod from the shift rod. Refer to
Gearcase
REMOVAL AND INSTALLATION on
136
p.200. Push the clutch rod arm out from pivot
eyelet on crankcase.
1. Clutch rod arm
004489
Remove screw and oil dipstick tube.
1. Screw
004490
2. Dipstick tube
Remove six screws and two nuts. Lift powerhead
from
oil pan.
004491
