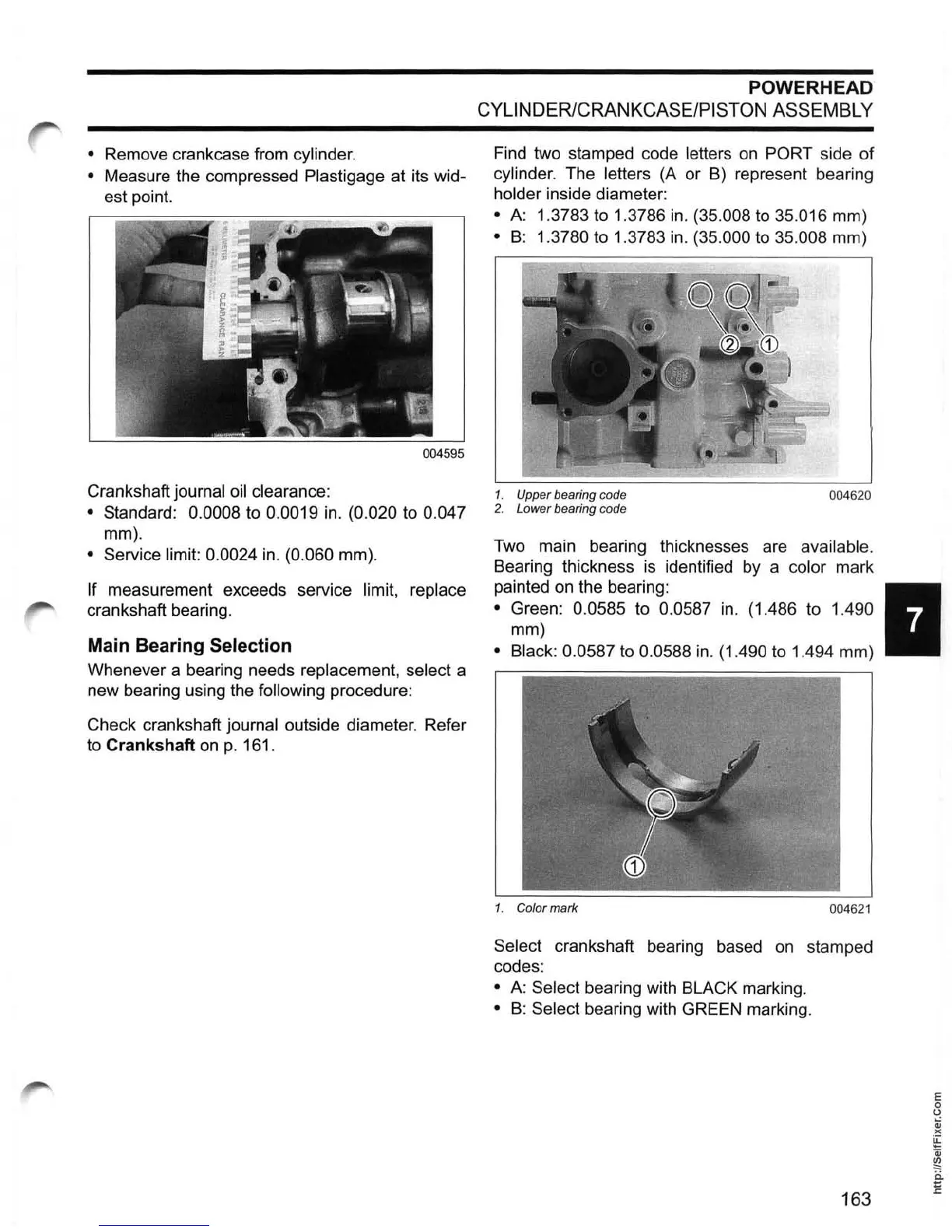

• Remove crankcase from cylinder.
•
Measure the compressed Plastigage at its wid-
est point.
004595
Crankshaft journal oil clearance:
• Standard: 0.0008 to 0.0019 in. (0.020 to 0.047
mm).
• Service limit: 0.0024 in. (0.060 mm).
If measurement exceeds service limit, replace
crankshaft bearing.
Main Bearing Selection
Whenever a bearing needs replacement, select a
new bearing using the
following procedure:
Check crankshaft
journal outside diameter. Refer
to
Crankshaft on
p.
161.
POWERHEAD
CYLINDER/CRANKCASE/PISTON ASSEMBLY
Find two stamped code letters on PORT side
of
cylinder. The letters (A
or
B) represent bearing
holder inside diameter:
• A: 1.3783 to 1.3786
in
. (35.008 to 35.016 mm)
•
B:
1.3780 to 1.3783
in
. (35.000 to 35.008 mm)
1. Upper bearing code
004620
2.
Lower bearing code
Two main bearing thicknesses are available.
Bearing thickness is identified by a color mark
painted on the bearing:
• Green: 0.0585 to 0.0587 in. (1.486 to 1.490
mm)
• Black: 0.0587 to 0.0588 in. (1.490 to 1.494 mm)
1.
Color mark
004621
Select crankshaft bearing based on stamped
codes:
•
A:
Select bearing with BLACK marking.
•
B:
Select bearing with GREEN marking.
163
