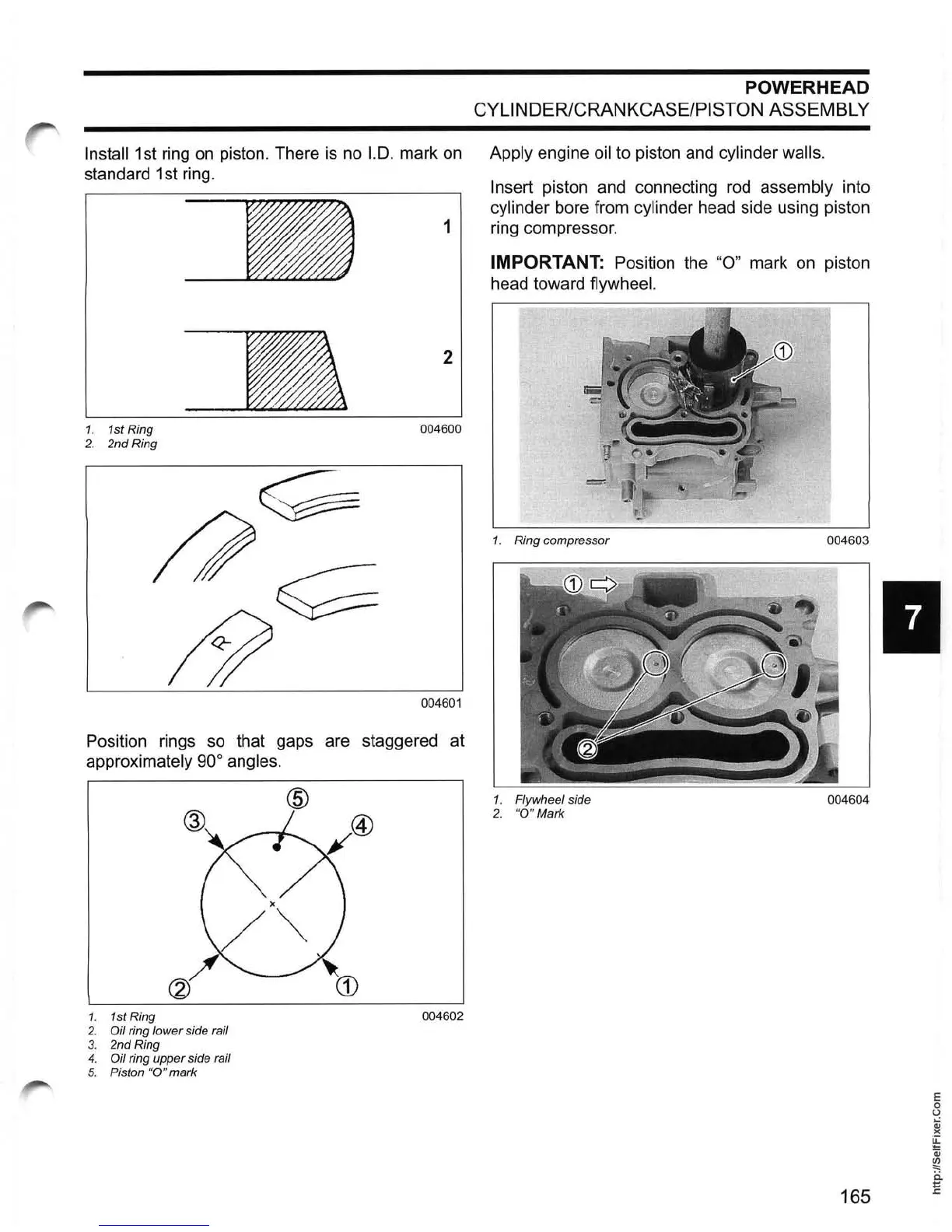

Install 1 st ring on piston. There is no 1.0. mark on
standard 1 st ring.
•
1
•
2
1. 1st Ring
004600
2. 2nd Ring
004601
Position rings so that gaps are staggered at
approximately 90° angles .
1. 1st Ring
004602
2. Oil ring lower side rail
3. 2nd Ring
4.
Oil ring upper side rail
5. Piston
"0 " mark
POWERHEAD
CYLINDER/CRANKCASE/PISTON ASSEMBLY
Apply engine oil to piston and cylinder walls.
Insert piston and connecting rod assembly into
cylinder bore from cylinder head side using piston
ring compressor .
IMPORTANT: Position the "0" mark on piston
head toward flywheel .
1. Ring compressor 004603
1. Flywheel side 004604
2. " O"Mark
