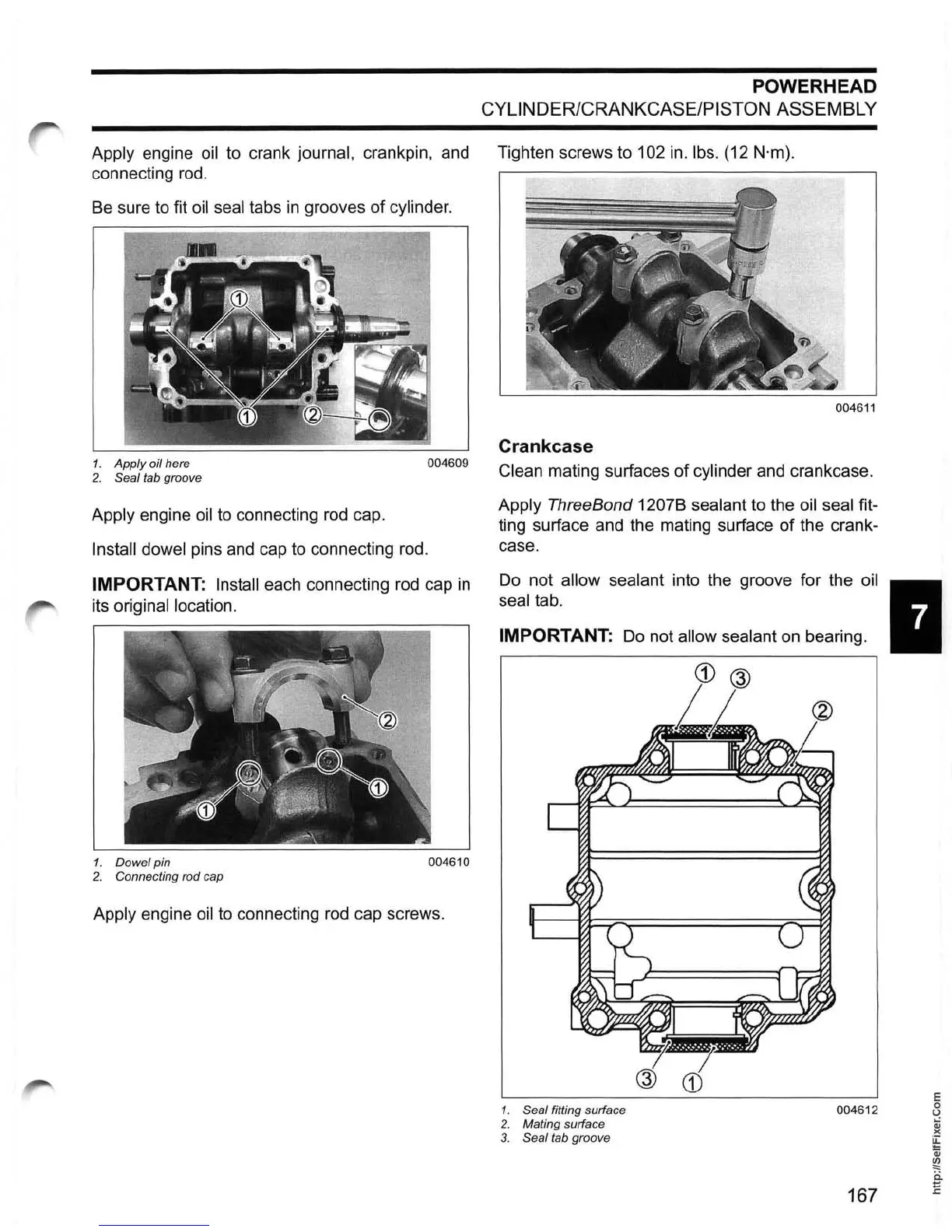

POWERHEAD
CYLINDER/CRANKCASE/PISTON ASSEMBLY
Apply engine oil to crank journal, crankpin, and Tighten screws to 102
in.
Ibs.
(12 N·m).
connecting
rod
.
Be
sure to fit oil seal tabs
in
grooves of cylinder.
1.
Apply oil here
004609
2. Seal tab groove
Apply engine oil to connecting
rod
cap.
Install dowel pins
and
cap
to
connecting rod.
IMPORTANT: Install each connecting
rod
cap
in
its original location.
1. Dowel pin
004610
2. Connecting rod cap
Apply engine oil to connecting
rod
cap screws.
004611
Crankcase
Clean mating surfaces of cylinder and crankcase.
Apply ThreeBond 1207B sealant
to
the oil seal fit-
ting surface and the mating surface
of
the crank-
case.
Do
not allow sealant into the groove for the oil
seal
tab.
IMPORTANT:
Do
not allow sealant
on
bearing.
1.
Seal fitting surface 004612
2.
Mating surface
3.
Seal tab groove
167
