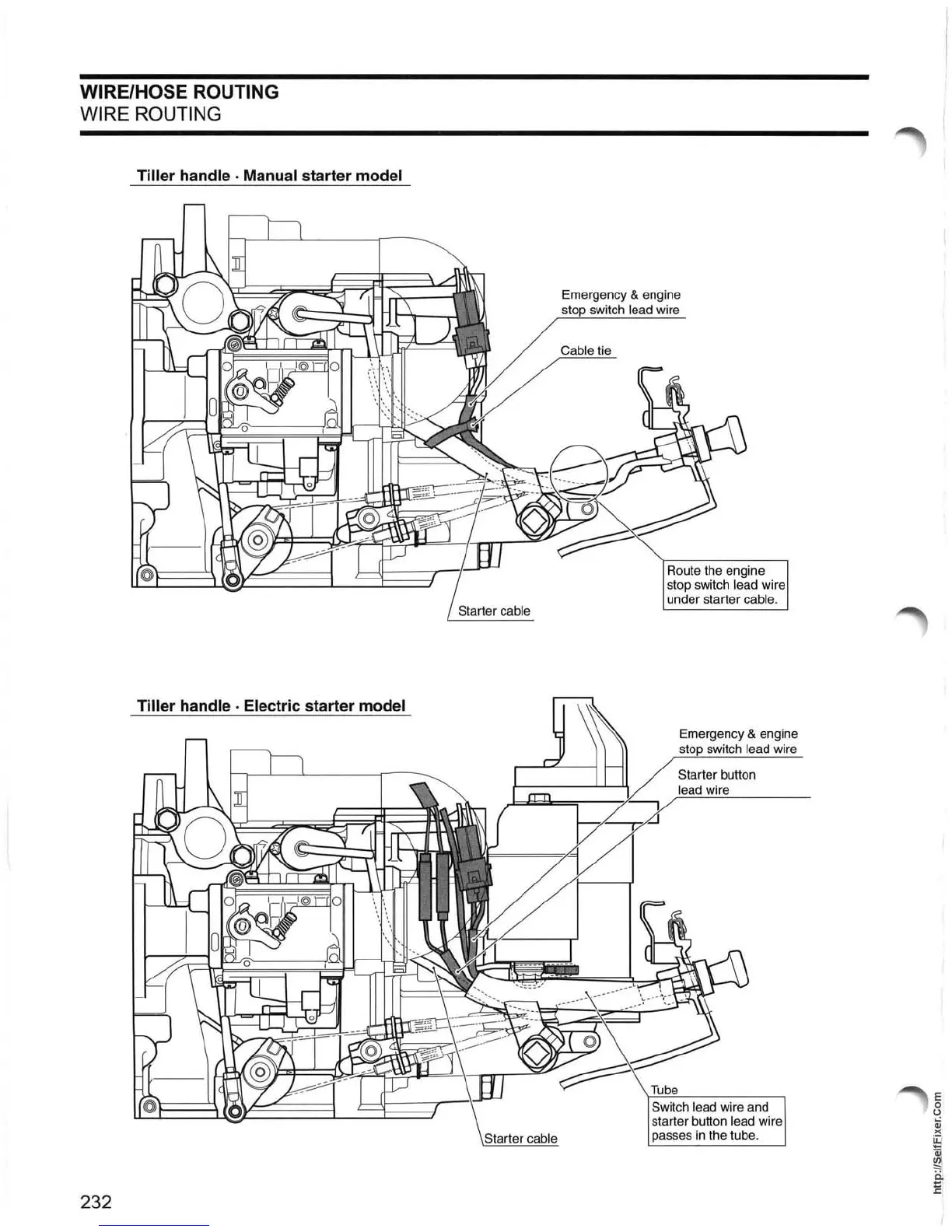

WIRE/HOSE ROUTING
WIRE ROUTING
Tiller handle· Manual starter model
Tiller handle· Electric starter model
232
Emergency & engine
switch
lead wire
Route the
stop switch
under starter
Emergency
& engine
switch
lead wire
Starter button
Switch
lead wire and
starter button
lead wire
passes
in the tube.
