Lead wire
Main
wiring
harness
Auto-enrichener
heater}(R model)
Cable tie
and condenser
Pulser coil
ground lead/Bolt
Manual starter model
coil

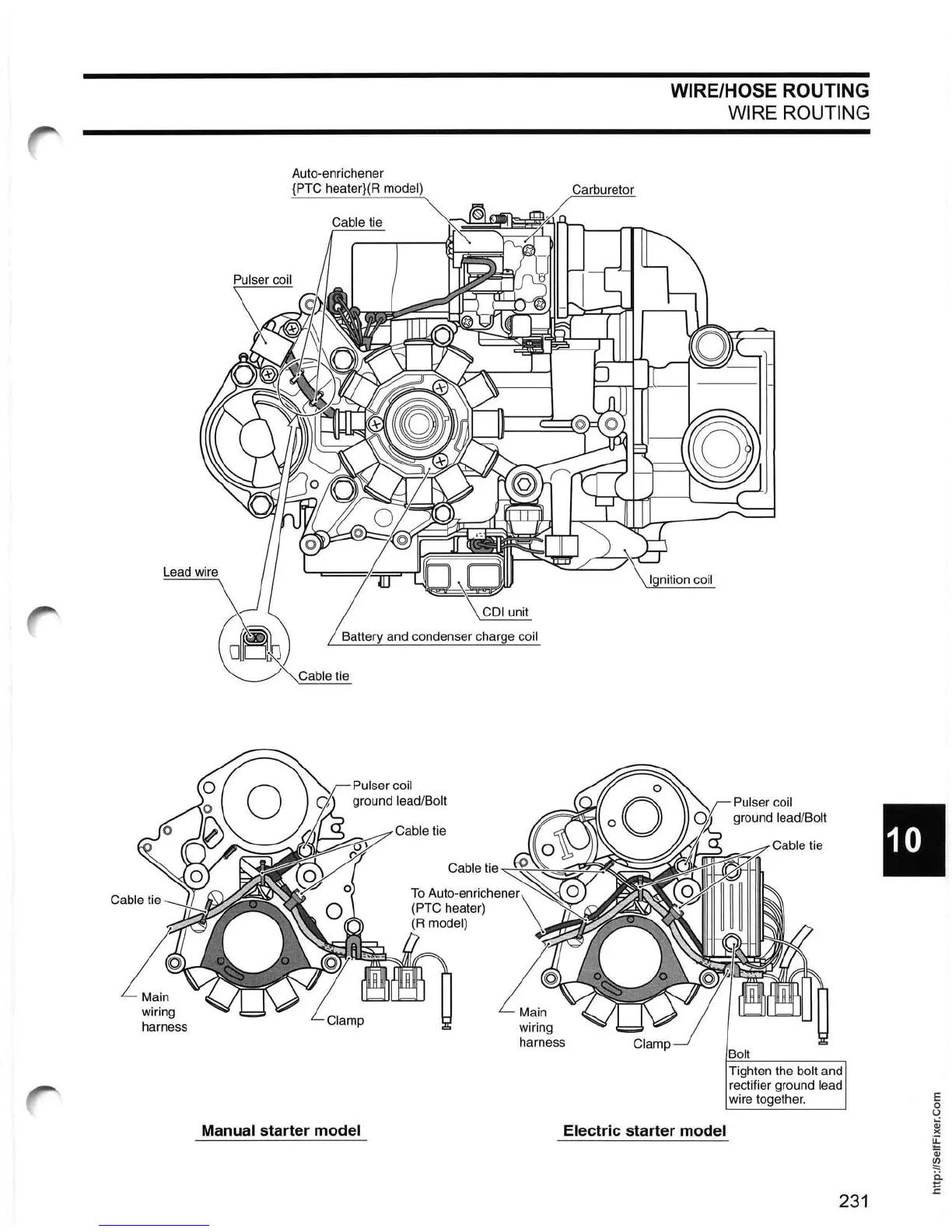

WIRE/HOSE ROUTING
Electric starter model
WIRE ROUTING
Tighten the bolt and
rectifier ground lead
wire together.
231
