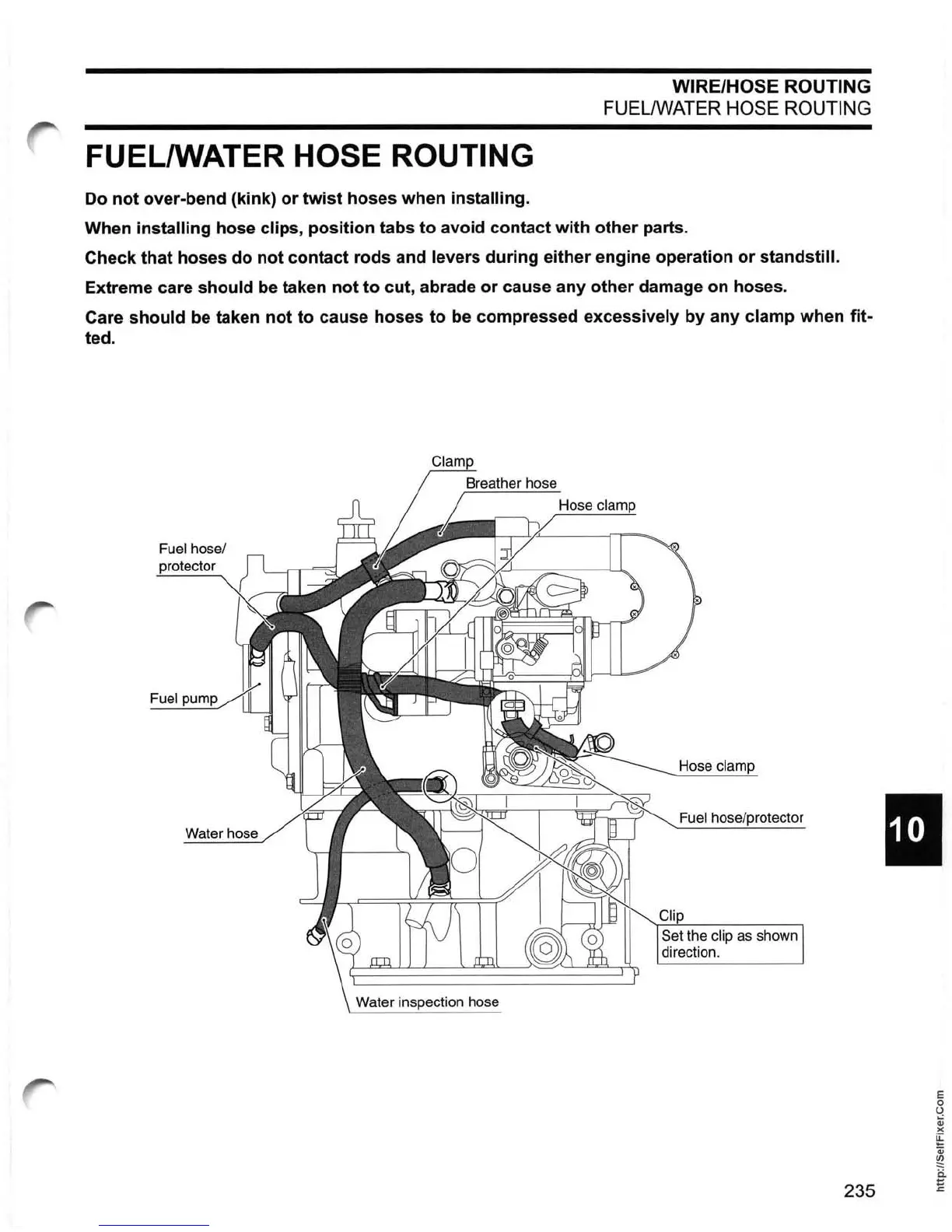

FUELIWATER HOSE ROUTING
Do not over-bend (kink) or twist hoses when installing.
WIRE/HOSE ROUTING
FUELIWATER HOSE ROUTING
When installing hose clips, position tabs to avoid contact with other parts.
Check
that hoses do not contact rods and levers during either engine operation or standstill.
Extreme care should be taken not to cut, abrade or cause any other damage on hoses.
Care
should be taken not to cause hoses to be compressed excessively by any clamp when fit-
ted.
