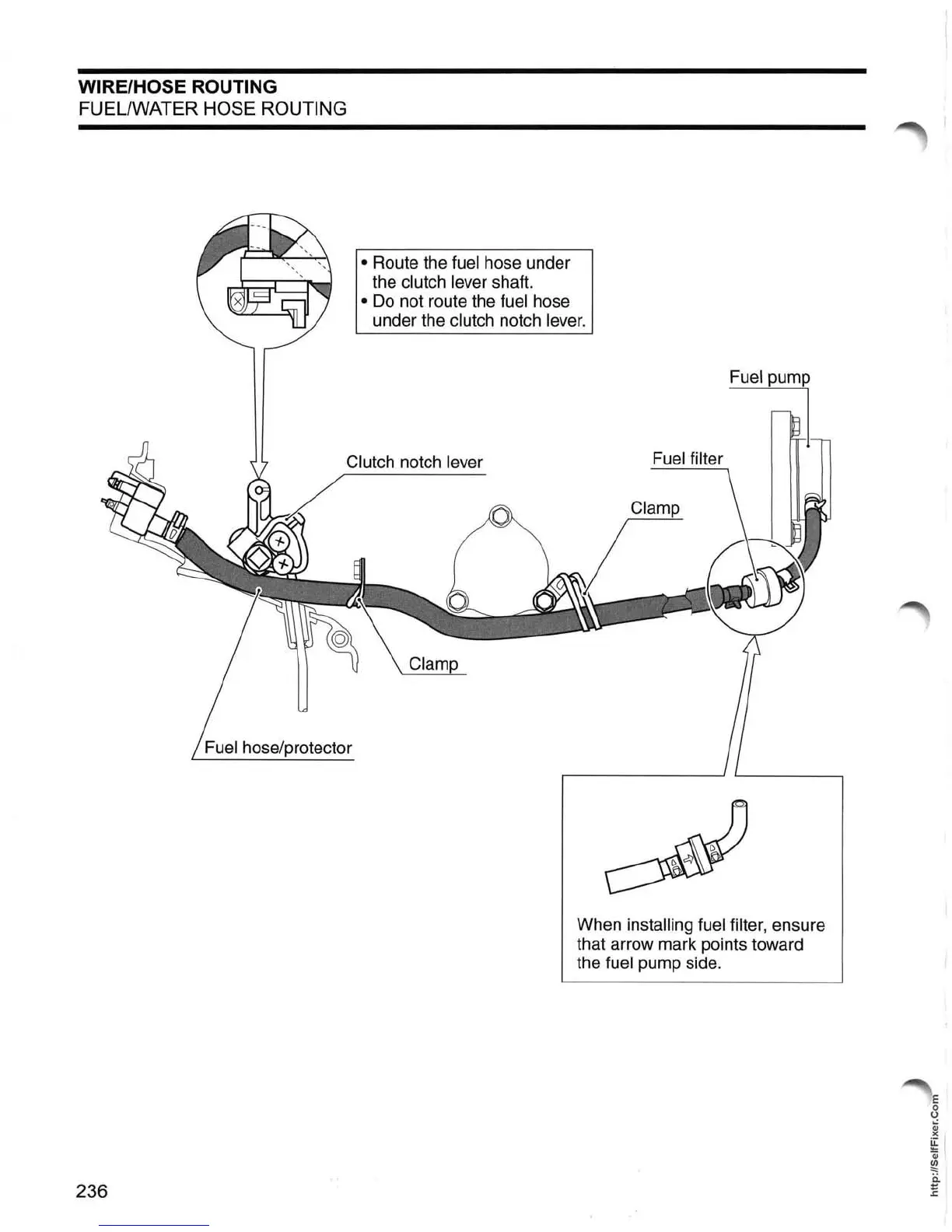

WIRE/HOSE ROUTING
FUELIWATER HOSE ROUTING
• Route the fuel hose under
the
clutch lever shaft.
• Do not route the fuel hose
under the clutch notch
lever.
Fuel
pump
Clutch notch lever
Fuel filter
Fuel
hose/protector
236
When installing fuel filter, ensure
that arrow mark points toward
the
fuel pump side.
