ELECTRICAL

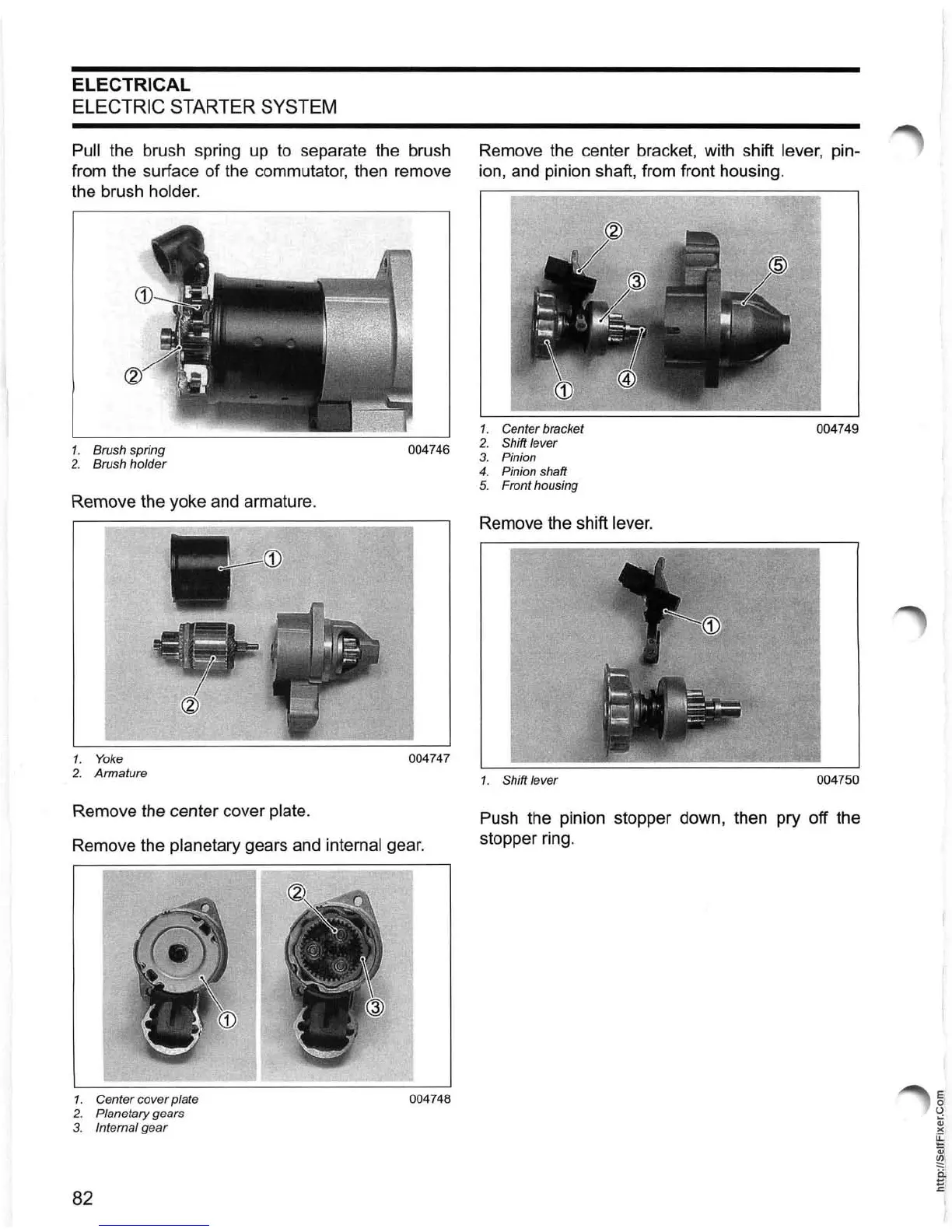

ELECTRIC STARTER SYSTEM
Pull the brush spring up to separate the brush
from the surface of the commutator, then remove
the brush holder.
1. Brush spr ing
004746
2. Brush holder
Remove the yoke and armature.
1. Yoke
004747
2. Armature
Remove the center cover plate.
Remove the planetary gears and internal gear.
1. Center cover plate
004748
2. Planetary ge ar s
3. Inte rn al g ear
82
Remove the center bracket, with shift lever, pin-
ion, and pinion shaft, from front housing.
1. Center bracket 004749
2. Shift lever
3. Pinion
4. Pinion shaft
5. Front housing
Remove the shift lever.
1. Shift lever
004750
Push the pinion stopper down, then pry off the
stopper ring.
