ELECTRICAL
ELECTRIC STARTER SYSTEM
Assembly
Assembly is reverse order of disassembly with special attention to the following steps .

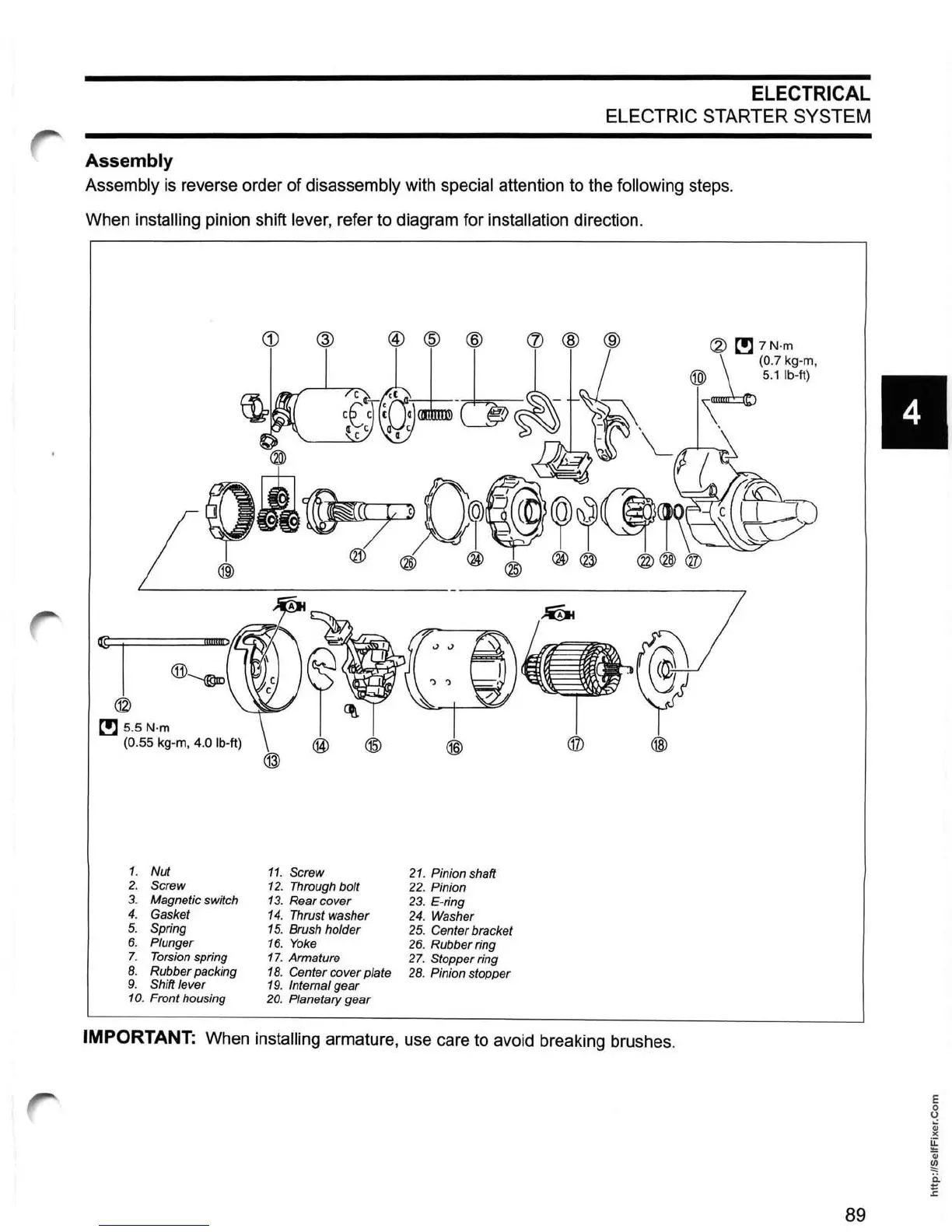

When installing pinion shift lever, refer to diagram for installation direction.
@
~I
©
~ 5. 5N·m
(0.55 kg-m. 4.0 Ib-ft)
1. Nut
11 . Screw
21. Pinion shaft
2. Screw
12 . Through bolt
22. Pinion
3. Magnetic switch
13 . Rear cover
23. E-ring
4. Gasket
14 . Thrust washer
24 . Washer
5. Spring
15. Brush holder
25. Center bracket
6. Plunger
7. Torsion spring
8. Rubber packing
9. Shift lever
16 . Yoke
17 . Armature
18 . Center cover plate
19 . Internal gear
26. Rubber ring
27. Stopper ring
28. Pinion stopper
10 . Front housing
20. Planetary gear
IMPORTANT: When installing armature, use care to avoid breaking brushes.
(2) t!J 7 N·m
\ - (0.7 kg-m.
®> ~ 5.1 Ib -ft)
\
89
