Bruker NMR BSMS System - AVANCE NEO OneBay;TwoBay Configurations

L-TRX/L-19F
H172203_1_001 103 / 234

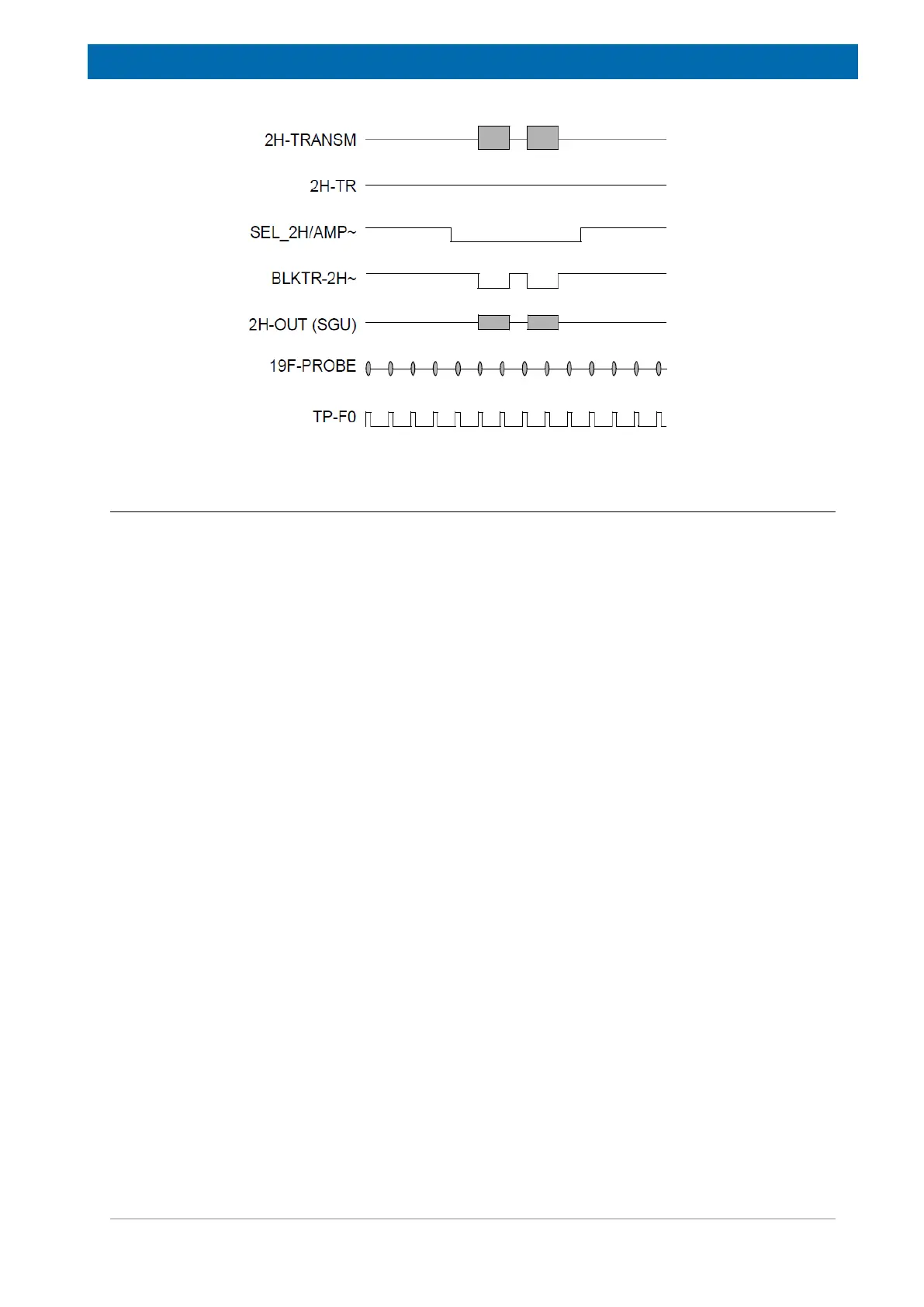

Figure11.8: Timing Diagram of Lock 19F Operation and Simultaneous 2H Decoupling or 2H Observe
11.3 AVANCE NEO OneBay/TwoBay Configurations
The AV4 BSMS chassis is only compatible to the current generation of lock systems e.g.
BSMS/2 L-TRX and BSMS/2 L-19F.
